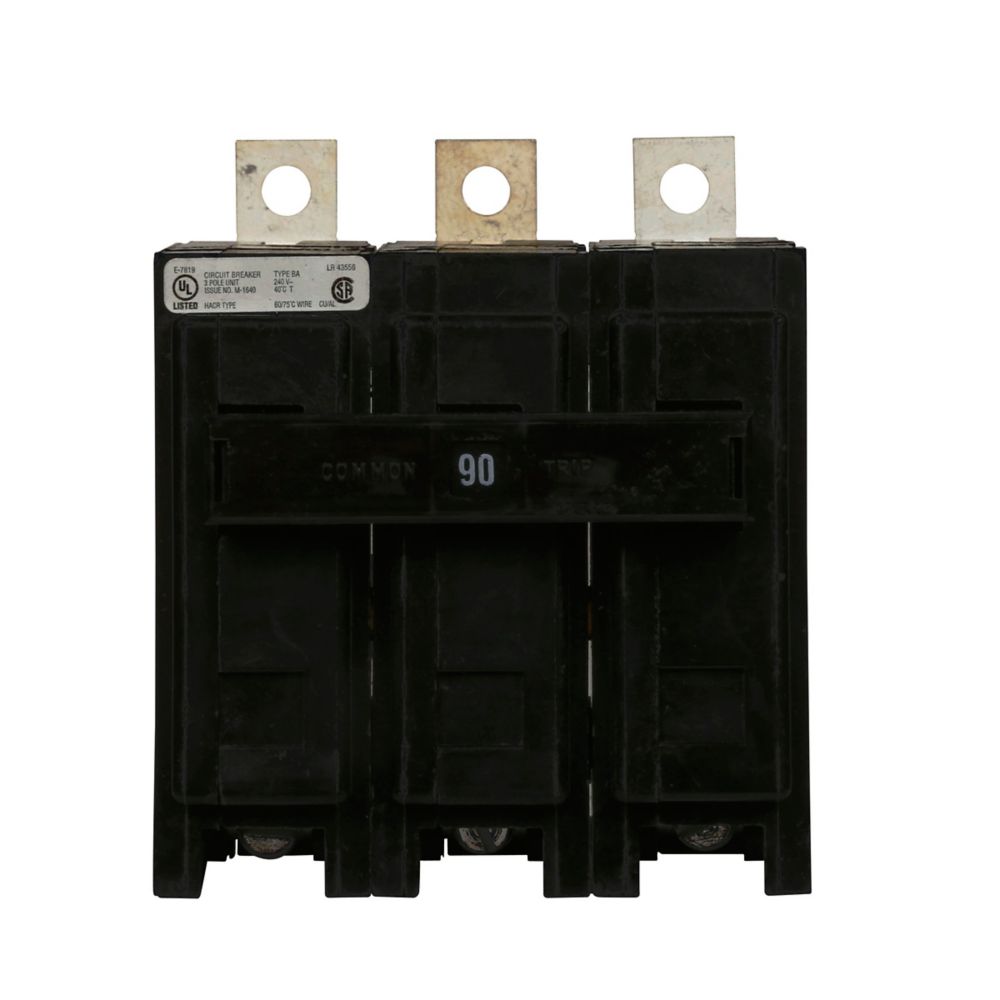

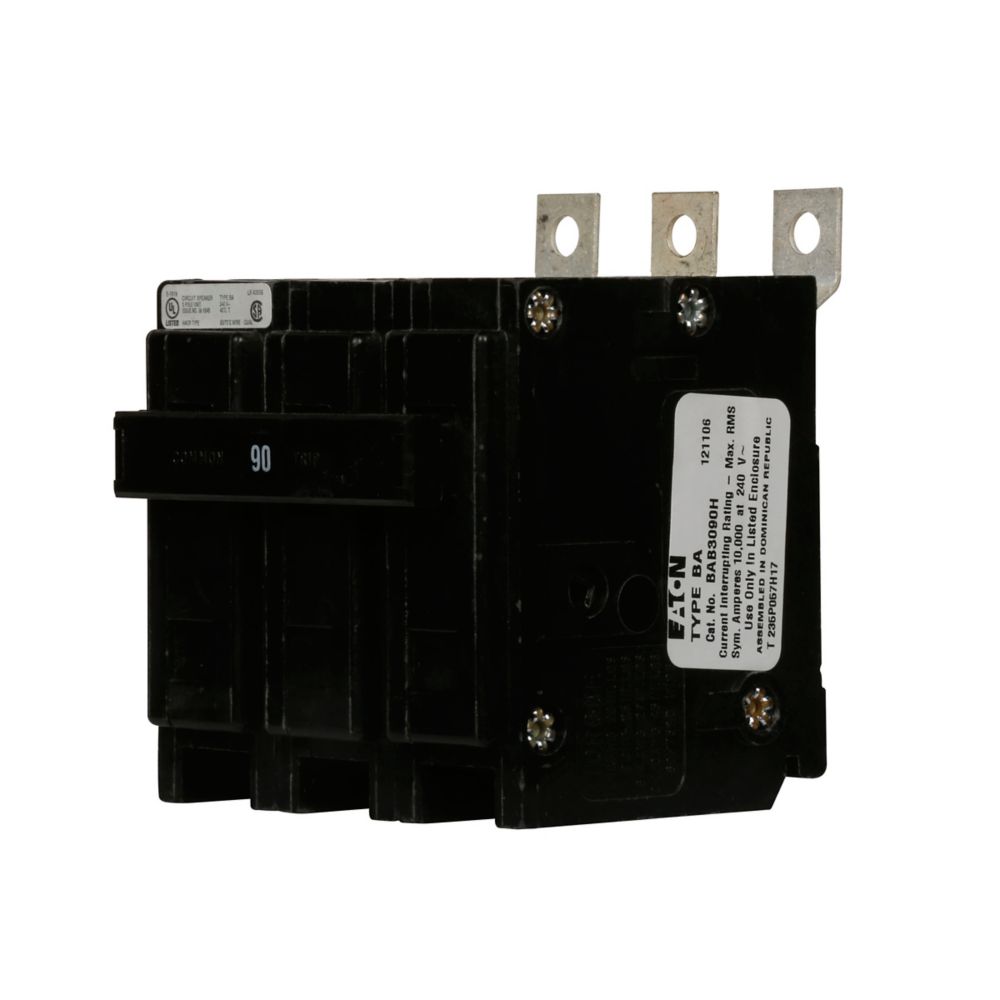

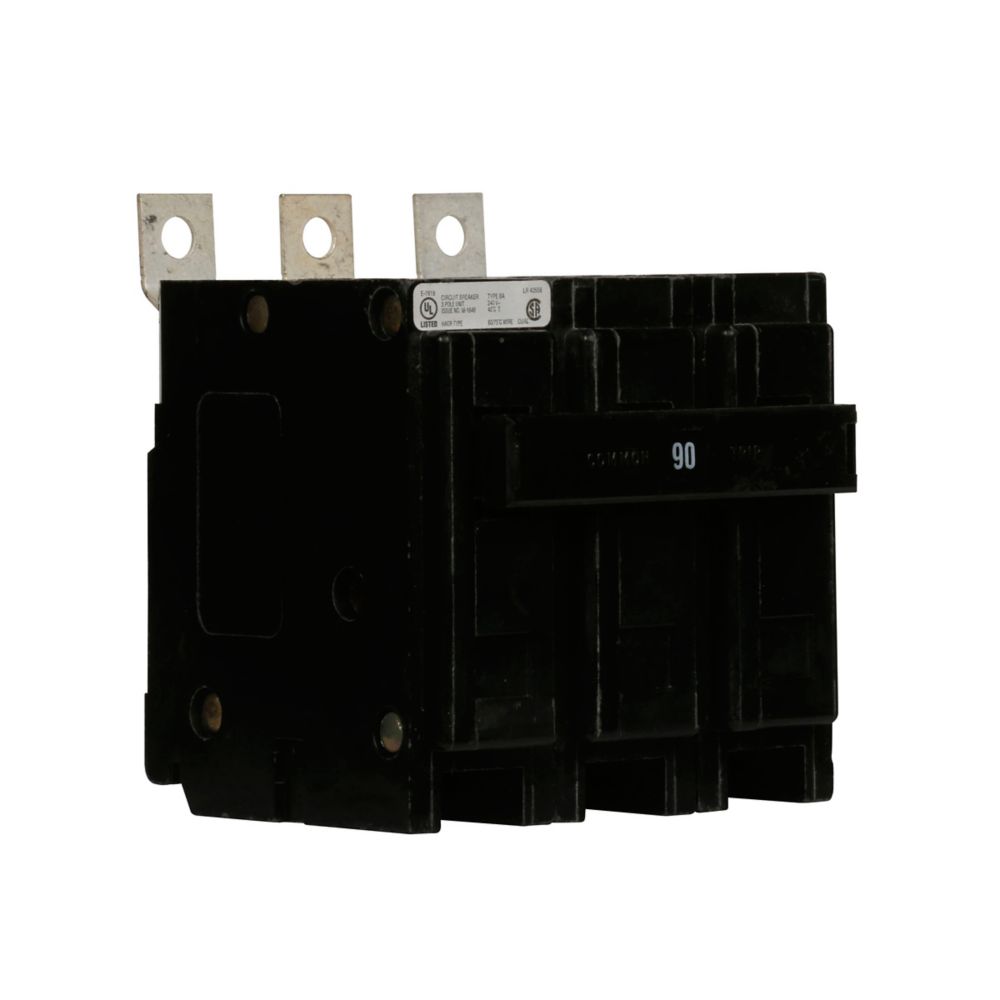

BAB3090H - Eaton Cutler Hammer - 90A 240 V Three-Pole BAB Thermal Magnetic Circuit Breaker
The Eaton BAB3090H is a bolt-on, three-pole Quicklag thermal-magnetic circuit breaker rated at 90 A with a 10 kA interrupting rating for 240 V systems. It offers dependable protection in a compact package (~3.5 in × 3.5 in × 3 in; ~0.95 lb) and is HACR-rated for versatility in HVAC and industrial setups. UL-listed, CSA-certified, and non-interchangeable, it's built to last in demanding panelboard environments.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BAB thermal magnetic circuit breaker
|
| Catalog Number |
BAB3090H
|
| UPC |
786679303900
|
| Product Length/Depth |
3.5 in
|
| Product Height |
3.5 in
|
| Product Width |
3 in
|
| Product Weight |
0.95 lb
|
| Certifications |
UL Listed
CSA Certified |
| Catalog Notes |
HACR rated
|
| Product Type |
Thermal magnetic circuit breakers
|
PHYSICAL ATTRIBUTES
| Circuit breaker type |
BAB
|
| Mounting Method |
Bolt-on
|
| Number of poles |
Three-pole
|
| Type |
Quicklag industrial thermal-magnetic circuit breaker
|
PERFORMANCE RATINGS
| Amperage Rating |
90 A
|
| Interrupt rating |
10 kAIC
|
| Trip Type |
Non-Interchangeable
|
| Voltage rating |
240 V - 240 V
|
MISCELLANEOUS
| Quantity |
32
|
| Special features |
Bolt-on mounting
|
