Description

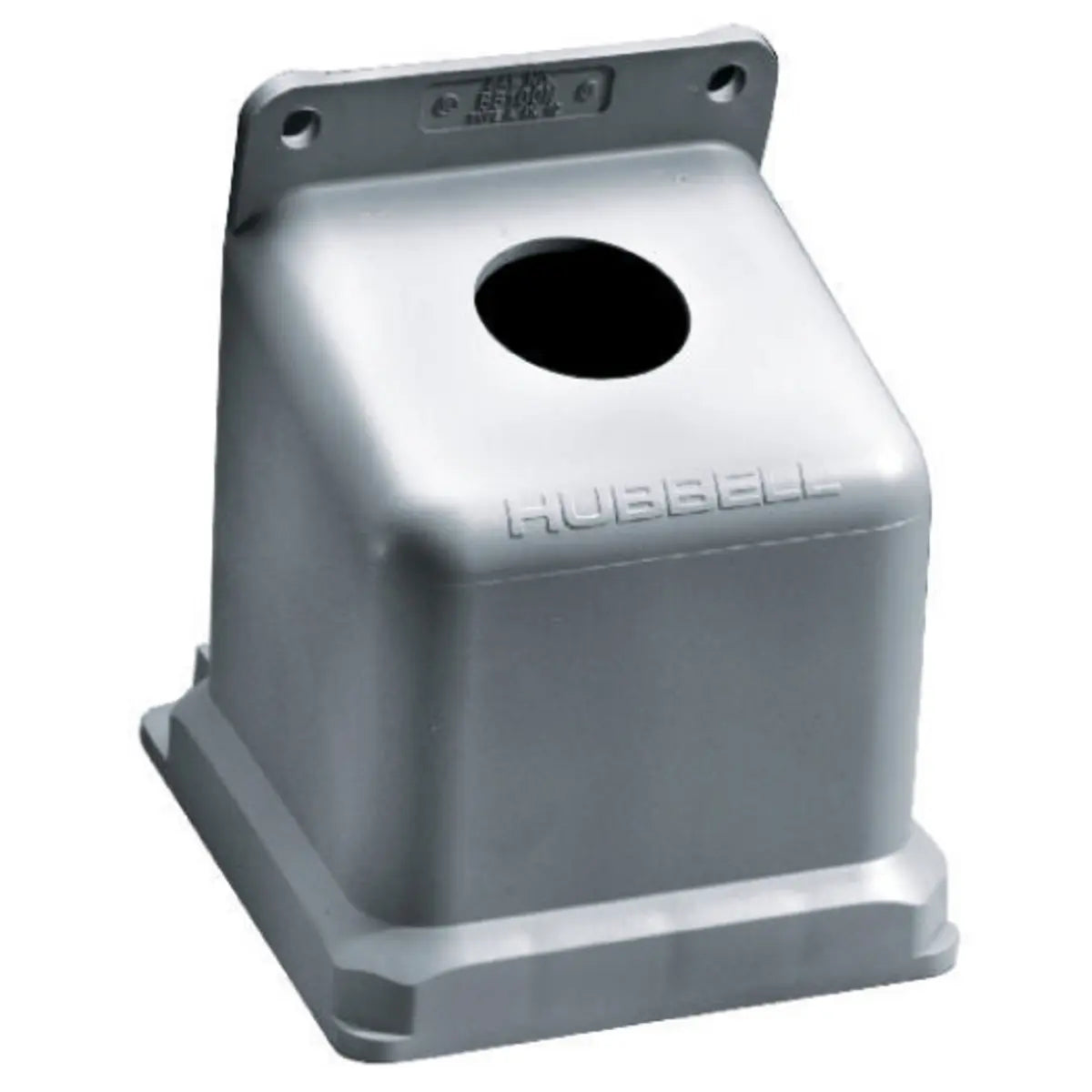

BB100N - Hubbell Wiring Device-Kellems - 1-1/2" 100A NPT Hub Heavy Duty Products
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 100A 1 1/2" NPT Hub, Angled, Mounting ScrewsIncluded, Gray Non-Metallic
Hubbell manufactures an extensive line of back boxes for use with IEC Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit. Hubbell back boxes are available in non-metallic and cast metal versions.
- Industrial Grade
- Back Box
- For 100A 1 1/2" NPT Hub
Requires Watertight Hub
GENERAL SPECIFICATIONS
| Application | Non-Metallic |
| Catalog Number | BB100N |
| Color | Gray |
| Construction | Molded |
| EU RoHS Indicator | Yes |
| Item Type | Mounting Box |
| Knockouts | 1/2" NPT |
| Material | Thermoplastic |
| Mounting Hardware | Mounting Screws |
| Number of Outlets | Accepts 1-Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Moisture Resistance - IP57 Suitability |
| Series | Back Boxes and Adapters |
| Specifications |
|
| Style | 15 Degree |
| Type | Angled Back Box |
| UPC | 783585390048 |
Dimensions
| Display Size | For 100 and 125 Amp Devices |
Conductor Related
| Cable Entry | Through Hub |
Operational
| Performance | Environmental - Moisture Resistance - IP57 Suitability |
| Temperature Range | Limited By Device |
Configuration
| Knockouts | 1 1/2" NPT |
| Number Of Outlets | Accepts 1-Device |
Logistics
| Carton Quantity | 1 |
| Pallet Quantity | 195 |
