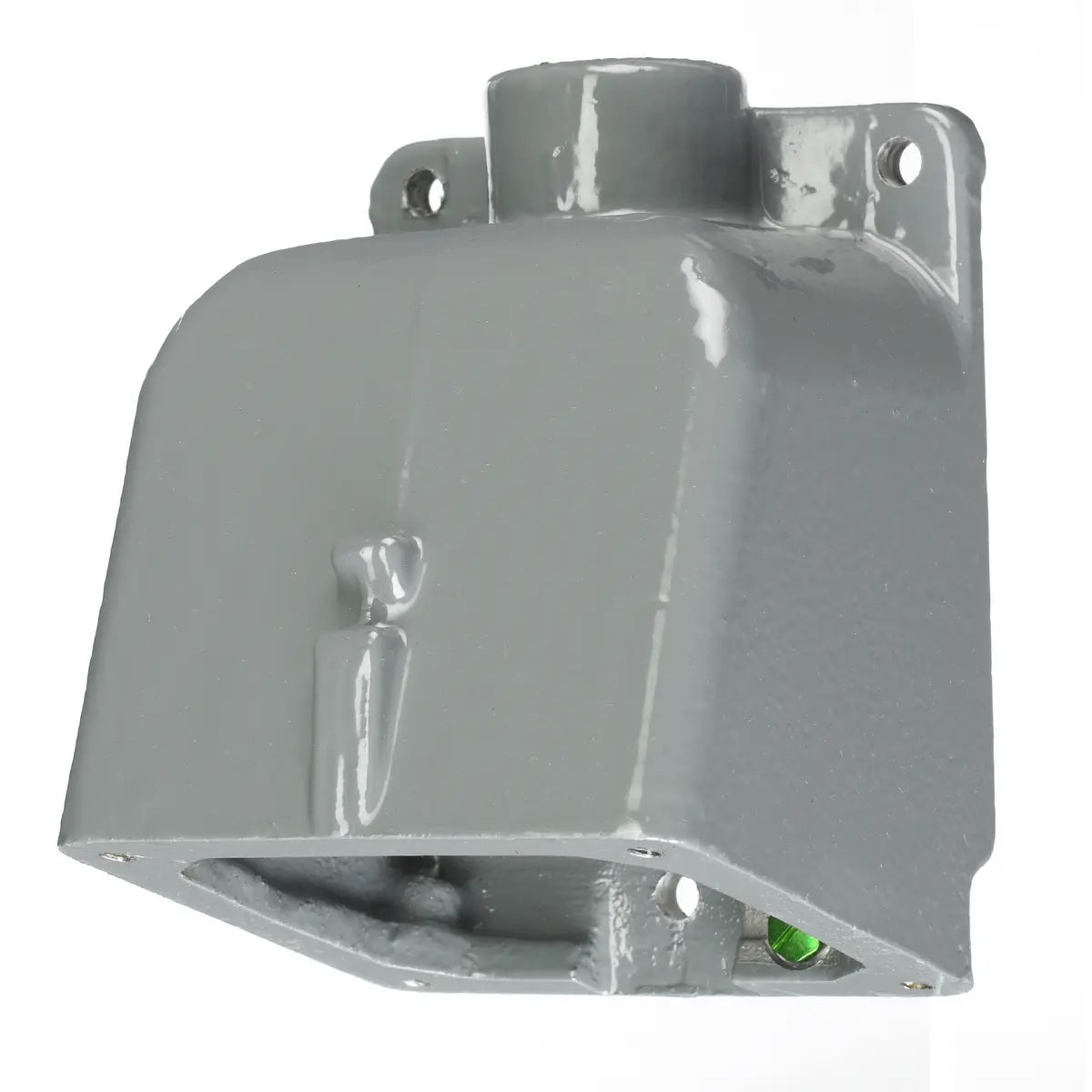

BB201W - Hubbell Wiring Device-Kellems - 3/4" 20A/30A NPT Hub Heavy Duty Products
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 20A and 30A 3/4"NPT Hub, Angled, Mounting Screws Included, Gray Cast Aluminum
Hubbell manufactures an extensive line of back boxes for use with IEC Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit. Hubbell back boxes are available in non-metallic and cast metal versions.
- Industrial Grade
- Back Box
- For 20A and 30A 3/4"NPT Hub
Standard Product
GENERAL SPECIFICATIONS
| Application | Metallic |
| Catalog Number | BB201W |
| Color | Gray |
| Construction | Cast |
| EU RoHS Indicator | Yes |
| Item Type | Mounting Box |
| Knockouts | 3/4" NPT Hub |
| Material | Aluminum |
| Mounting Hardware | Mounting Screws |
| Number of Outlets | Accepts 1-Device |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Moisture Resistance - IP54 Suitability |
| Specifications |
|
| Style | For 20 and 30A Watertight Safety Shroud Receptacles and Inlets |
| Type | Back Box |
| UPC | 783585390055 |
Dimensions
| Dimensions | 4 in x 3.75 in x 3 in |
| Display Size | For 16, 20, 30, and 32 Amp Devices |
| Height | 3 in |
| Length | 4 in |
| Width | 3.75 in |
| Weight | 1.4 lb |
Conductor Related
| Cable Entry | Through Hub |
Operational
| Performance | Environmental - Moisture Resistance - IP54 Suitability |
| Temperature Range | Temperature Range |
Configuration
| Knockouts | 3/4" NPT Hub |
| Number Of Outlets | Accepts 1-Device |
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 360 |
