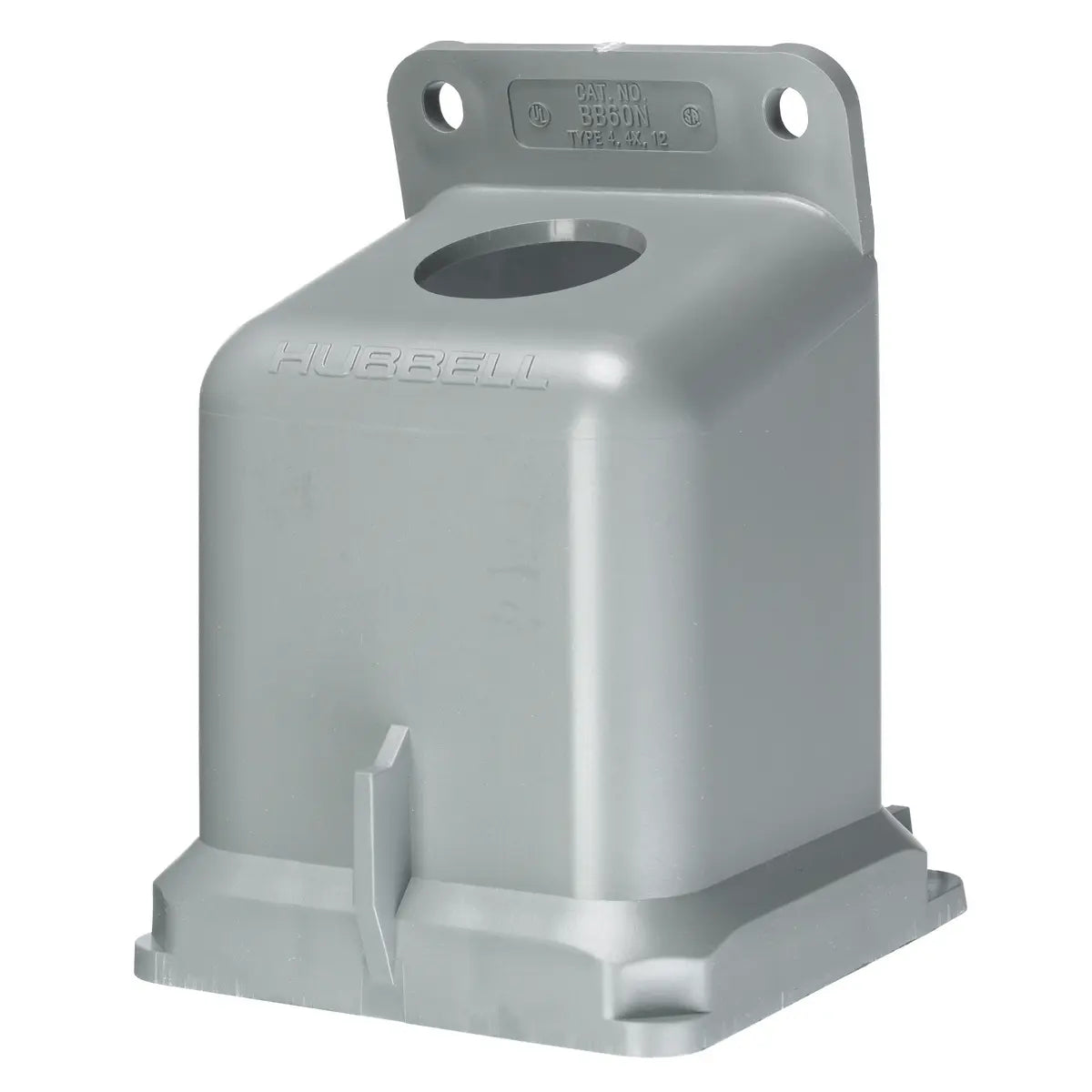

BB60N - Hubbell Wiring Device-Kellems - 1-1/4" 60A NPT Hub Heavy Duty Products
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Accessory, Back Box, For 60A 1 1/4" NPT Hub, Angled, Mounting Screws Included, Gray Non-Metallic
Hubbell manufactures an extensive line of back boxes for use with IEC Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit. Hubbell back boxes are available in non-metallic and cast metal versions.
- Industrial Grade
- Back Box
- For 60A 1 1/4" NPT Hub
Requires Watertight Hub
GENERAL SPECIFICATIONS
| Application |
Non-Metallic |
| Catalog Number |
BB60N |
| Color |
Gray |
| Construction |
Molded |
| EU RoHS Indicator |
Yes |
| Item Type |
Mounting Box |
| Knockouts |
1 1/4" NPT |
| Material |
Thermoplastic |
| Mounting Hardware |
Mounting Screws |
| Number of Outlets |
Accepts 1-Device |
| Performance |
Environmental - Moisture Resistance - IP67 Suitability |
| Series |
Back Boxes and Adapters |
| Specifications |
- Accessory Item - Non-Metallic Back Box
- Back Box - 15 Degree Angle
- Box Hub Size - 1 1/4" NPT
|
| Style |
15 Degree |
| Temperature Range |
Limited By Device |
| UPC |
783585390024 |
Dimensions
| Display Size |
For 60 and 63 Amp Devices |
Conductor Related
Operational
| Performance
|
Environmental - Moisture Resistance - IP67 Suitability |
| Temperature Range |
Limited By Device |
Configuration
| Knockouts
|
1 1/4" NPT |
| Number Of Outlets |
Accepts 1-Device |
Logistics
| Carton Quantity |
1 |
| Pallet Quantity |
200 |
PRODUCT DATASHEET
Wiring BB60N Specification Sheet
