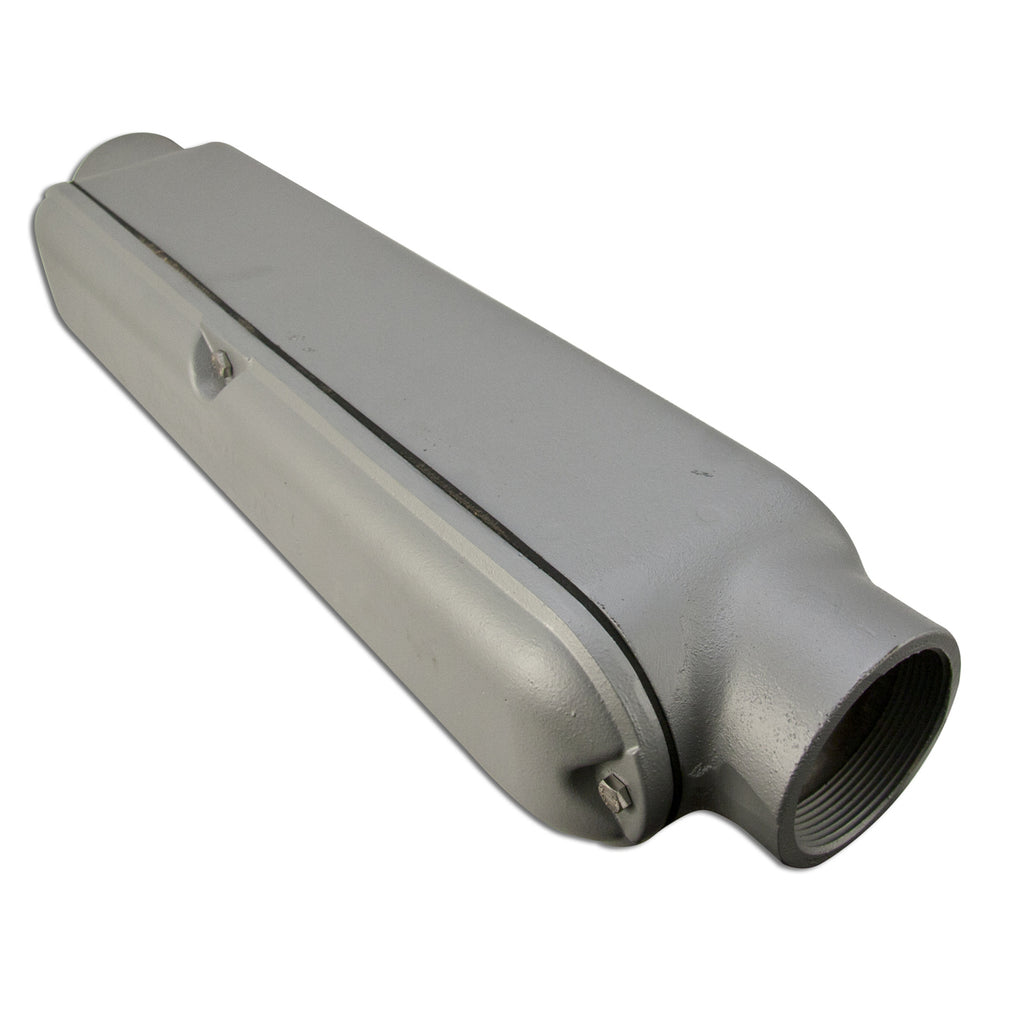

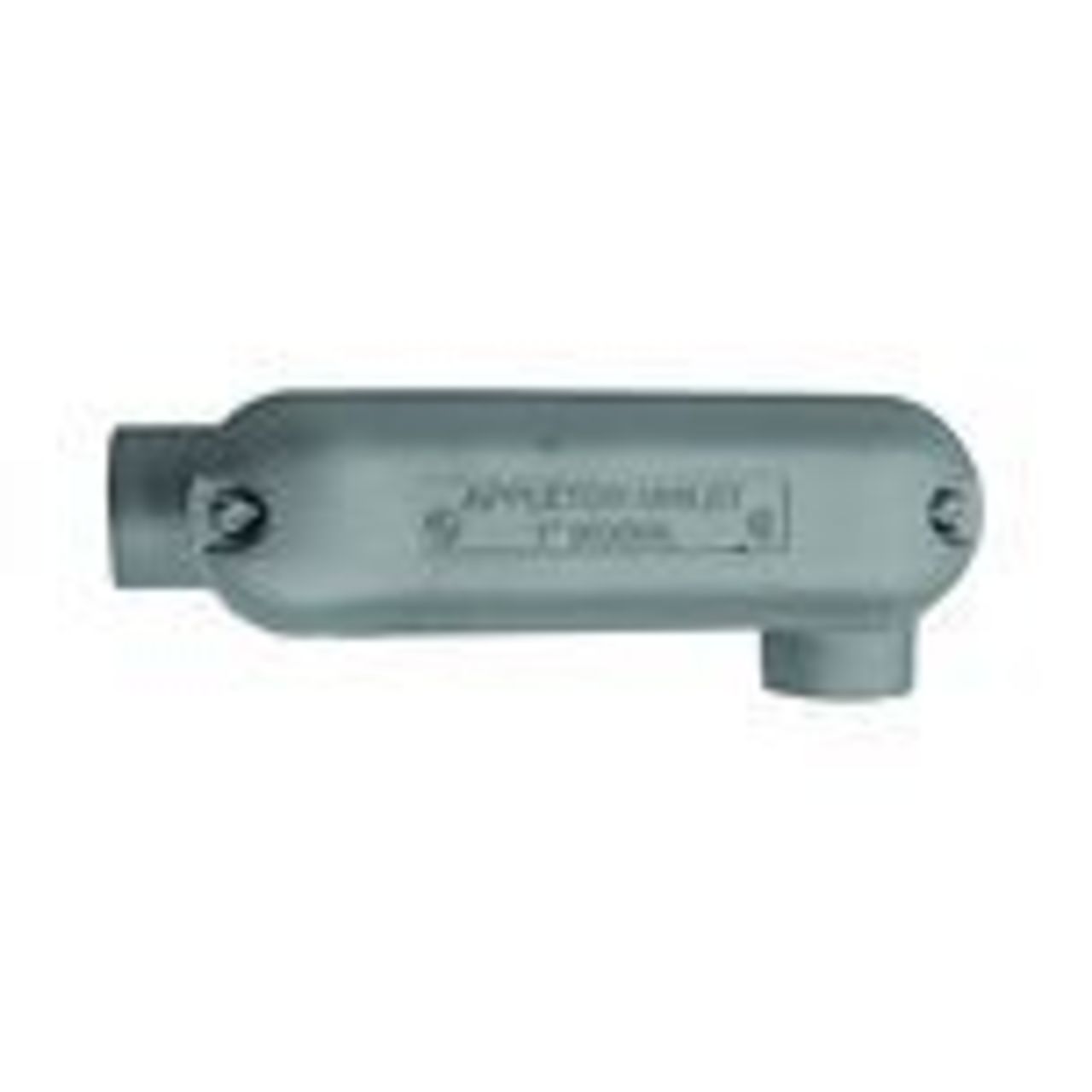

BC400A - Appleton - 4" Mogul Type C Aluminum Conduit Body
The BC400A is a 4-inch C-type conduit outlet body made from corrosion-resistant, copper-free aluminum. It includes a cover and neoprene gasket, offering a secure seal for splicing, pulling, and maintenance access in conduit systems. With smooth hub bushings and precision-tapped threads, it ensures conductor protection and electrical continuity. Certified for use in Class I, Division 2 hazardous areas, it meets NEC and NEMA FB-1 standards, making it suitable for tough industrial environments.
GENERAL SPECIFICATIONS
| Access Opening | Side |
| Configuration | C |
| Hub Location | Straight |
| Number of Hubs | 2 |
| Hub Size | 4 Inch |
| Size | 35.38 Inch Length x 5.63 Inch Width x 7.56 Inch Height |
| Installation | Threaded |
| Material | Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 1000 MCM; Capacity 1010 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
