Description

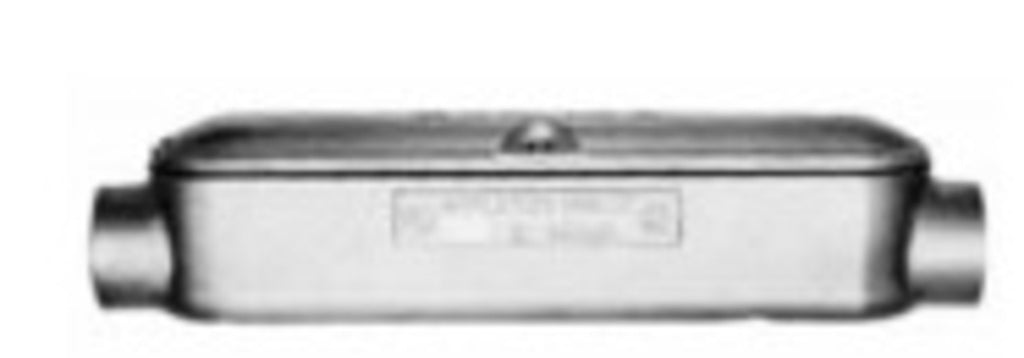

BC400M - Appleton - 4" Mogul Type C Malleable Iron Conduit Body with Cover/Gasket
Constructed from durable triple-coated malleable iron, the BC400M is a 4-inch C-type conduit outlet body designed for high-impact environments. It features integral bushing protection, neoprene gasket, stainless steel cover screws, and precision threading for safe conductor routing and sealing. UL and CSA listed, and compliant with NEC/NEMA standards, it's a trusted solution for pulling and splicing cables in industrial and hazardous settings.
GENERAL SPECIFICATIONS
| Access Opening | Side |
| Configuration | C |
| Hub Location | Straight |
| Number of Hubs | 2 |
| Hub Size | 4 Inch |
| Size | 35.38 Inch Length x 5.63 Inch Width x 7.56 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 1000 MCM; Capacity 1010 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
