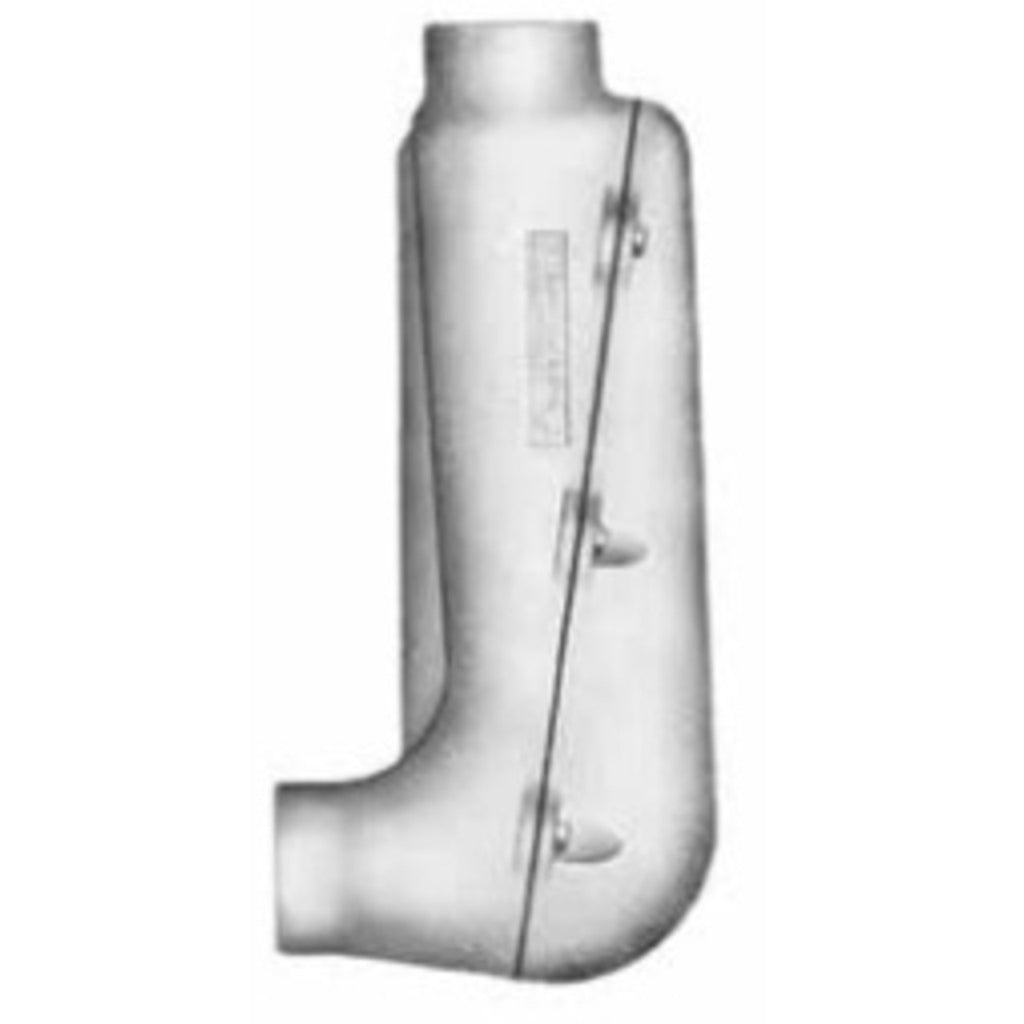

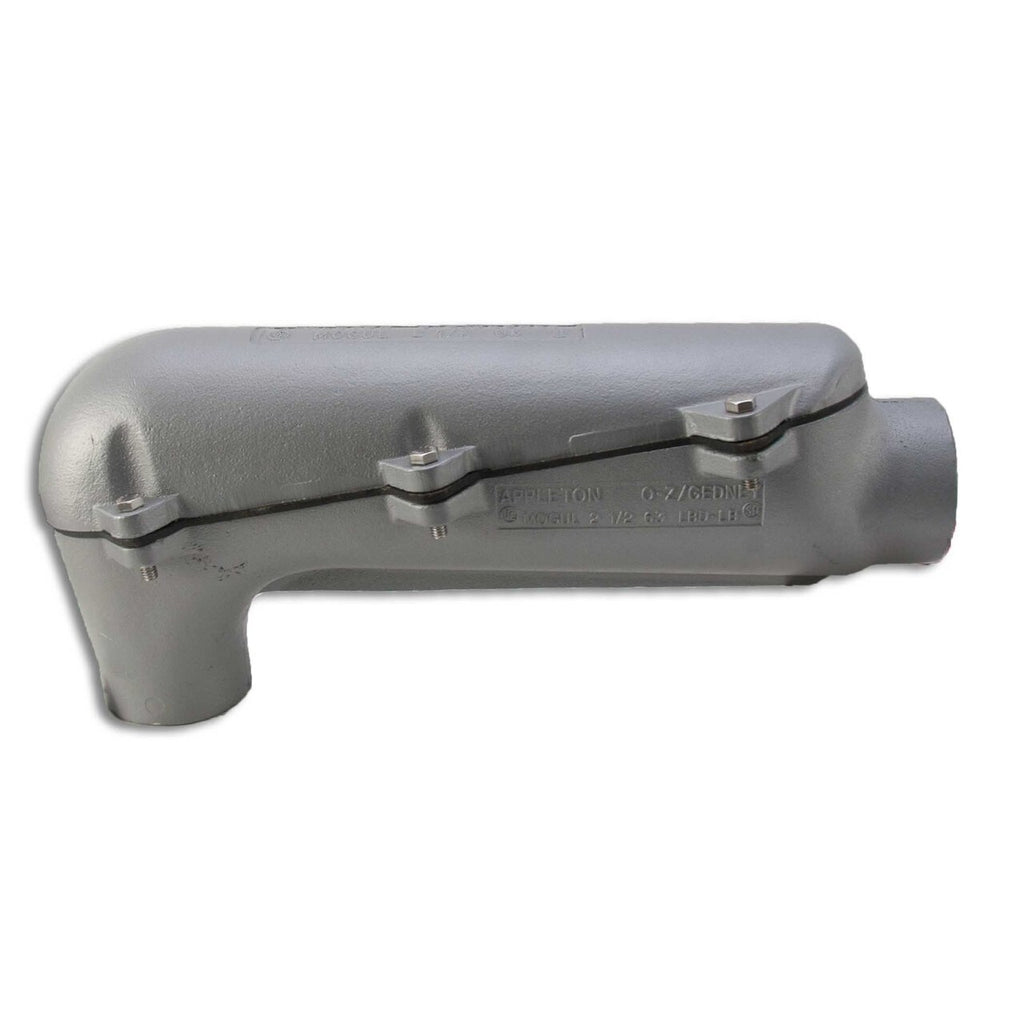

BLB100M - Appleton - 1" Mogul Type LB Malleable Iron Conduit Body
The BLB100M is a 1-inch LB-type mogul conduit body designed for use in NEC-compliant installations. Made of triple-coated malleable iron, it includes a fitted cover and gasket, providing 31 cubic inches of wiring space. It meets requirements for conductor bending and pulling, and features precision-threaded hubs, captive screws, and smooth bushings for easy and secure installation in commercial or industrial conduit systems.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Malleable iron bodies and covers have triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; steel covers have zinc electroplate; copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stainless steel
