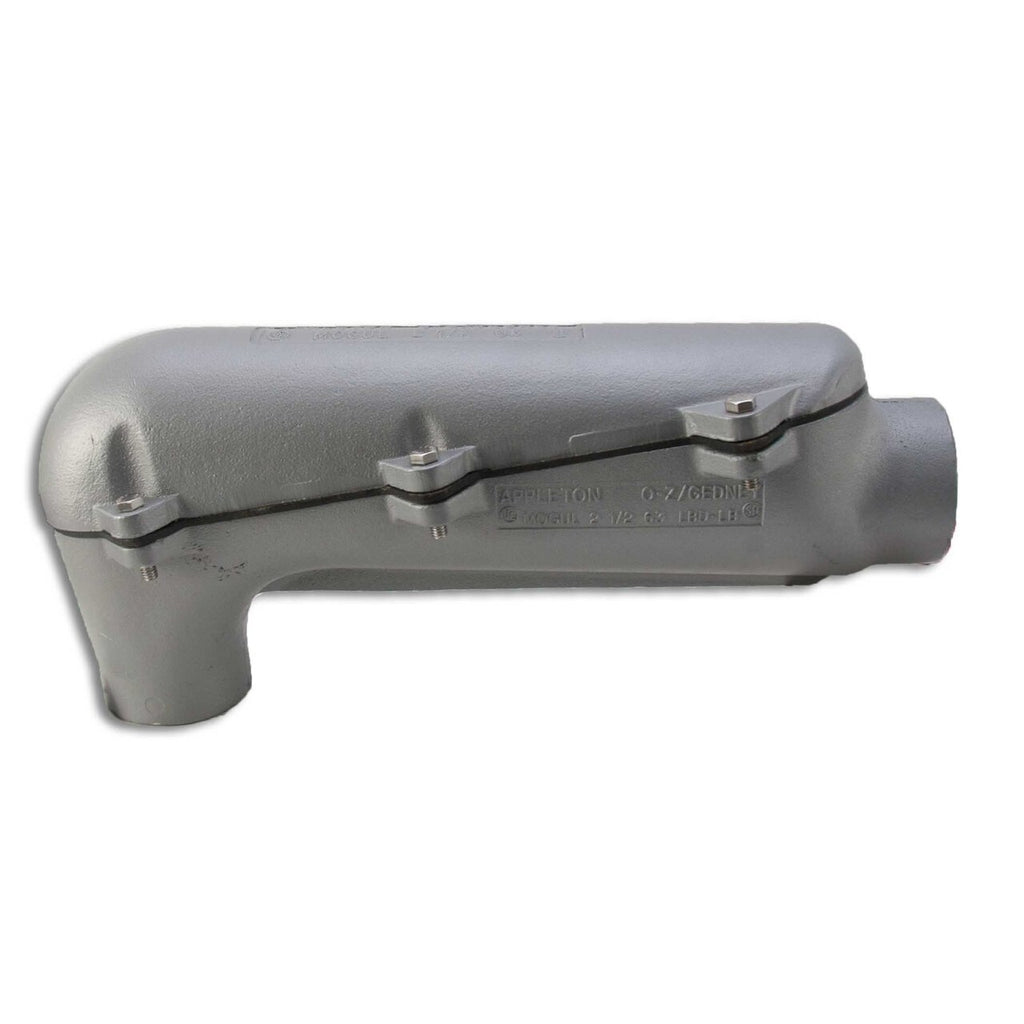

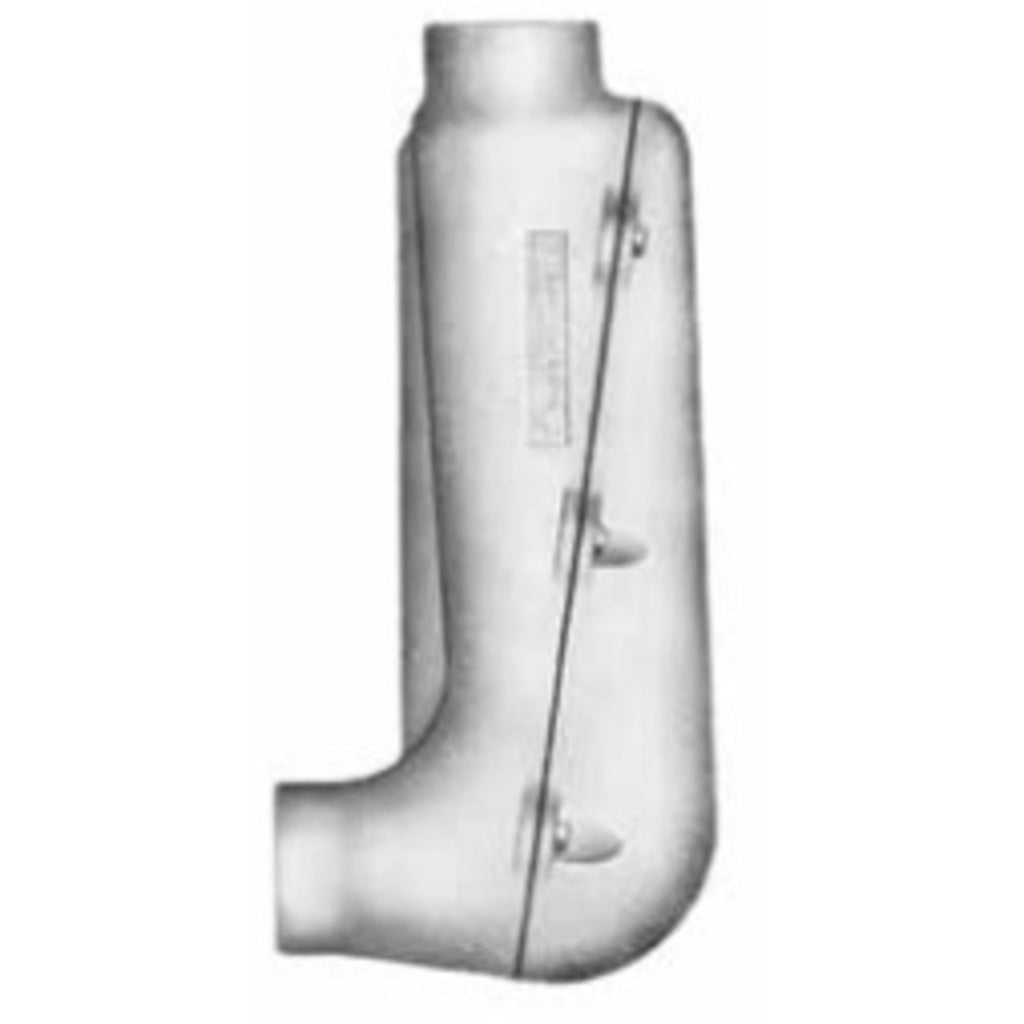

BLB150M - Appleton - 1-1/2" Mogul Type LB Malleable Iron Conduit Body
The BLB150M supports 11/2-inch conduit in demanding wiring layouts. Built from durable, triple-coated malleable iron, it provides an extended wiring chamber for conductor pulls and splicing. With a neoprene gasket, cover, and NEMA-compliant construction, this LB-type body meets NEC specifications for industrial-grade electrical systems, especially where larger cable capacity and robust protection are needed.
GENERAL SPECIFICATIONS
| Access Opening | Back |
| Configuration | LB |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 1-1/2 Inch |
| Size | 13 Inch Length x 3.13 Inch Width x 5.25 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 3/0 AWG; Capacity 107 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/CEC, NEMA FB-1 |
