BCAP - Schneider Electric - Capacitor Bank for Power Factor Correction

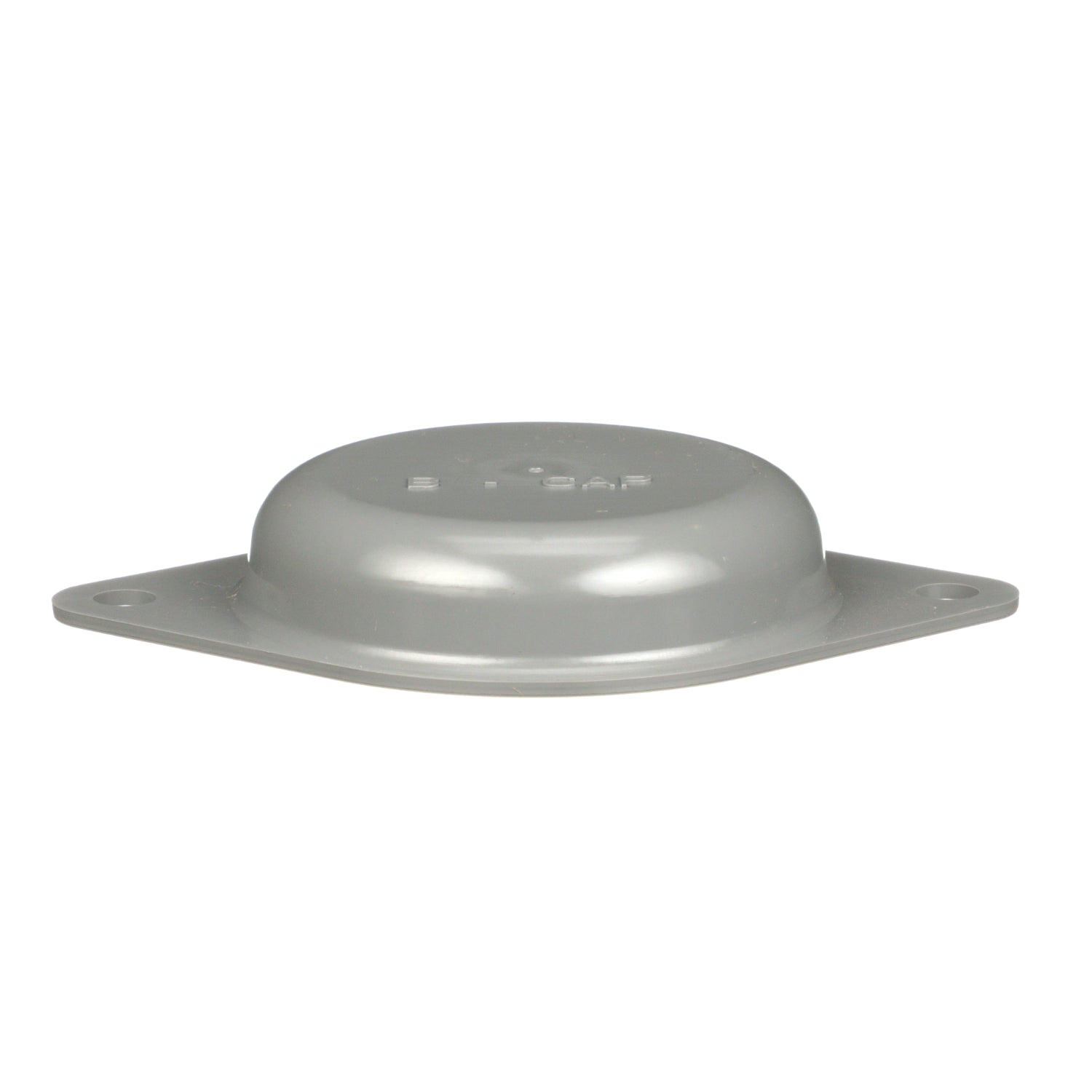

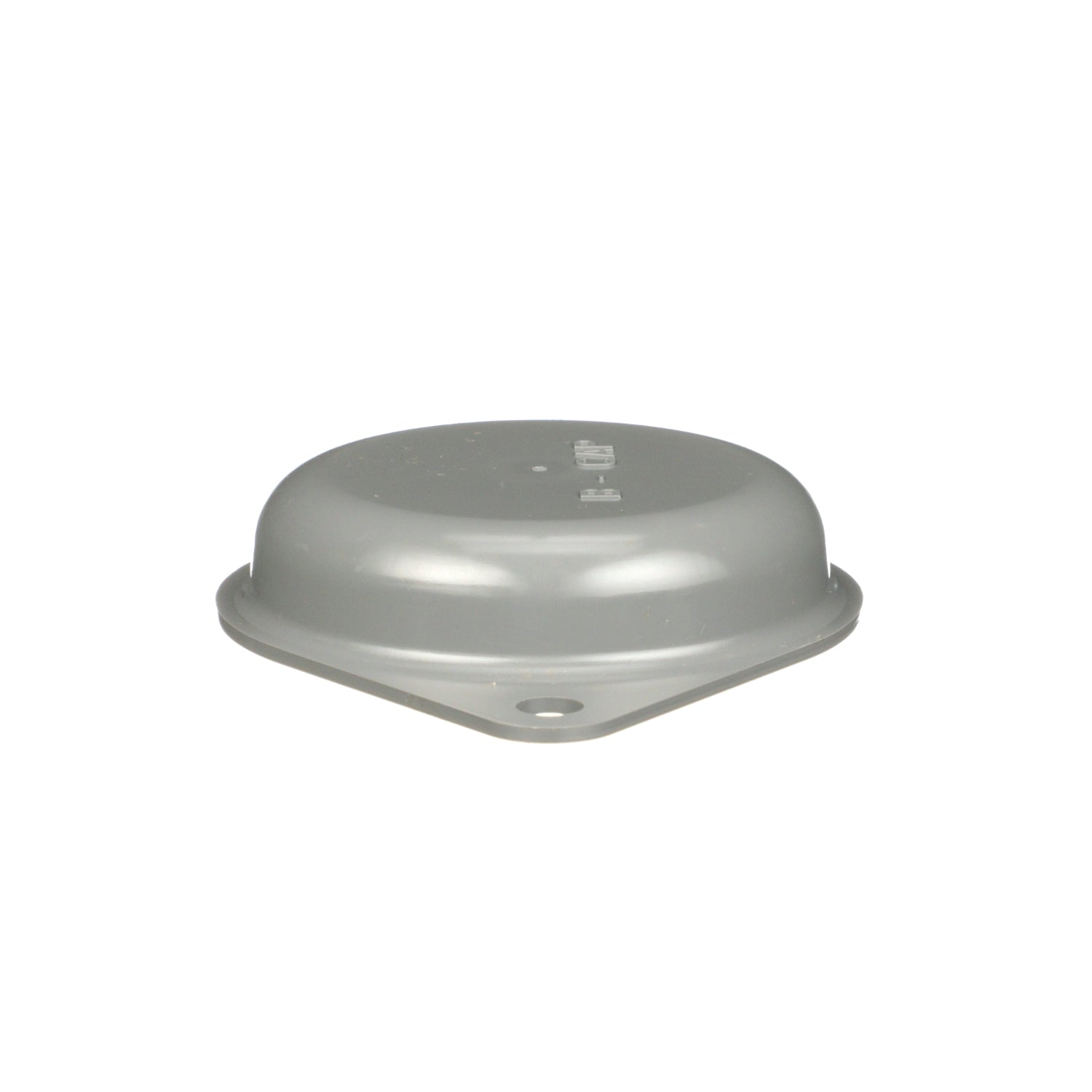

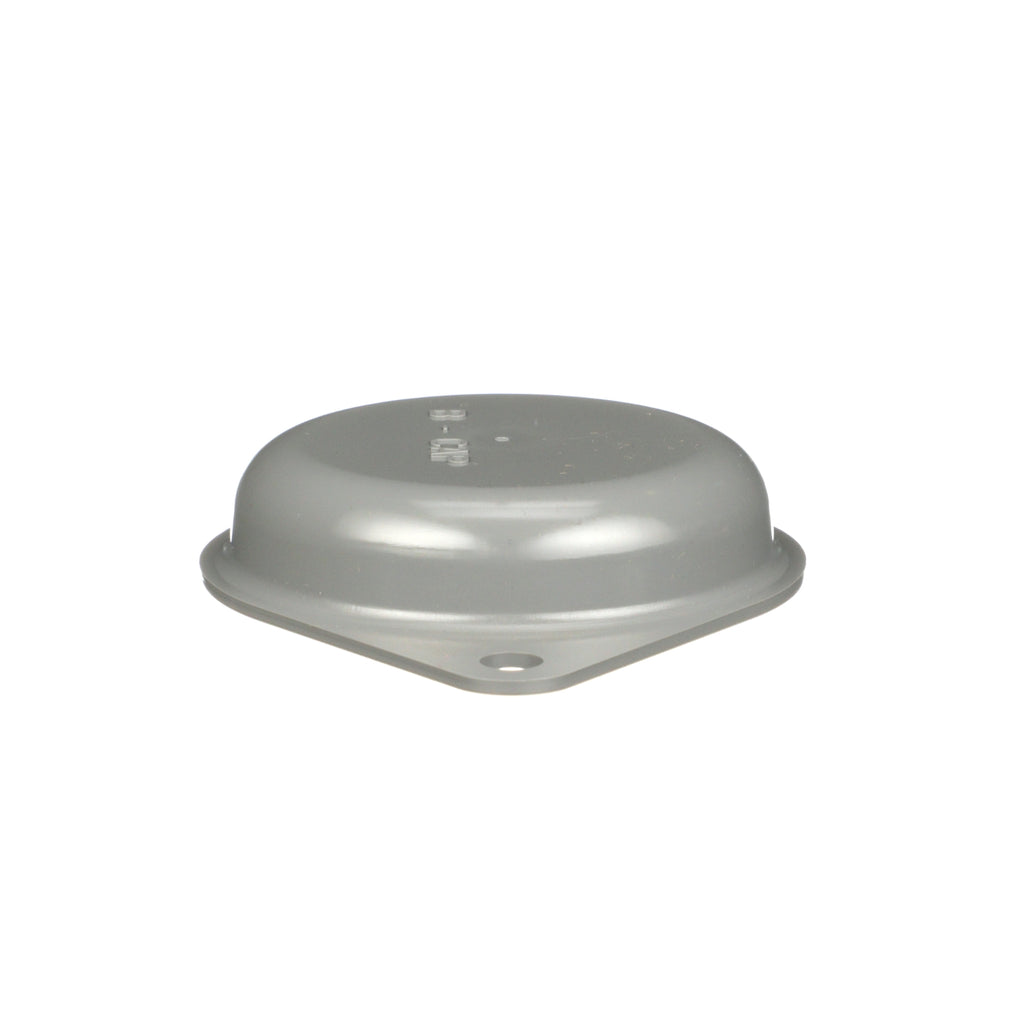

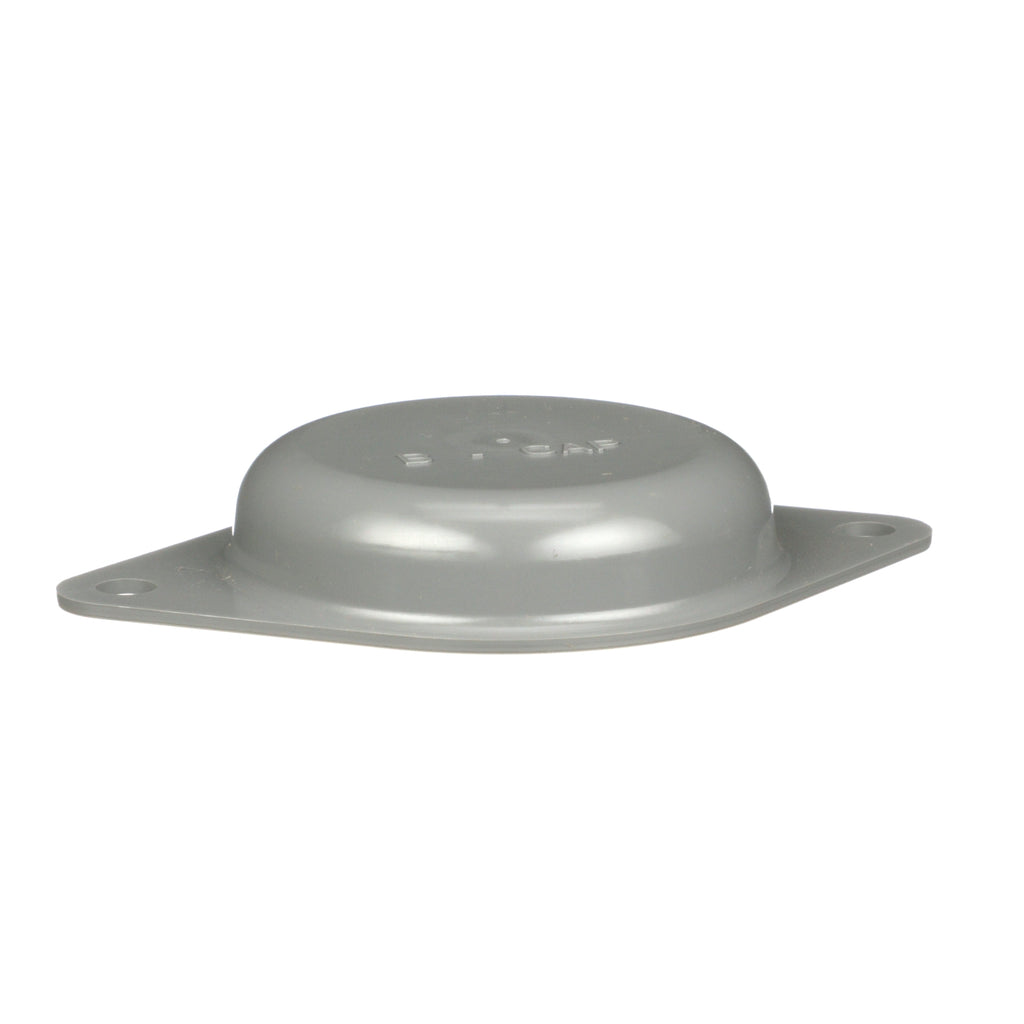

Industrial Circuit Breaker Enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Allow breaker operation without removing cover. These units are UL Listed and CSA Certified. Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction, utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4 in. through 2- 1/2 in. bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. This closing cap is provided factory-installed on each device having “RB’’ suffix. This bolt-on accessory has a UL listed rating. This product comes with an 18 month warranty.
GENERAL SPECIFICATIONS
Complementary
| Depth |
3.18 in (80.77 mm) |
| Height |
0.63 in (16.002 mm) |
| Product destination |
load center |
| Width |
4.7 in (119.4 mm) |
Ordering and shipping details
| Category |
US1DE1A00032 |
| Discount Schedule |
DE1A |
| GTIN |
785901459392 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.50 in (8.890 cm) |
| Package 1 Width |
4.50 in (11.430 cm) |
| Package 1 Length |
5.30 in (13.462 cm) |
| Package 1 Weight |
2.560 oz (72.575 g) |
| Unit Type of Package 2 |
PAL |
| Number of Units in Package 2 |
468 |
| Package 2 Height |
40.00 in (101.600 cm) |
| Package 2 Width |
40.00 in (101.600 cm) |
| Package 2 Length |
48.00 in (121.920 cm) |
| Package 2 Weight |
84.999 lb(US) (38.555 kg) |
PRODUCT DATASHEET
BCAP_Product Datasheet
