Description

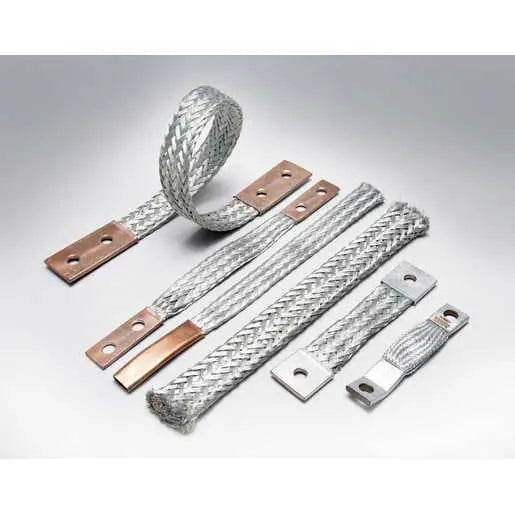

BD24 - Burndy - 24" Flexible Copper Braid
Flexible Copper Braid, 24 in L, Flexible copper braid jumpers designed to take up linear expansion and contraction, 24 IN L.
- Most Burndy braids are UL Listed and CSA Certified
- Pressed seamless copper ferrules provide added durability and prevent fraying, providing extra strength for a robust bonding connection
- Braid is especially suited for applications that require flexibility or resistance to vibration
- Extra fine stranding gives enhanced flexibility
- Ferrules clearly marked with Burndy braid type and UL markings (where appropriate)
- Available in custom lengths and hole sizes to suit your needs (contact your local sales representative for non-standard configurations)
- For assistance in finding the perfect braid for your needs, click here for our Braid Configurator Tool: www.hubbell.com/config/BRAID
GENERAL SPECIFICATIONS
| Application | Flexible copper braid jumpers are designed to take up linear expansion and contraction |
| Catalog Number | BD24 |
|
Connector Type |
Braid |
| EU RoHS Indicator | Yes |
| Material | Copper |
| Material - Ferrules | Y |
| Physical Attribute - Number of Braids | 1 |
| Plated | Y |
|
Plating Type |
Tin |
| Sub Brand | BRAID JUMPER |
| Type | B, Flexible |
| UPC | 781810806999 |
| UPC 14 Digit GTIN | 00781810806999 |
Dimensions
| Dimension - D (inch) | 2.50 in |
|
Dimension - Hole Size inch |
0.44 in |
|
Dimension - L Length Overall mm |
610 mm |
|
Dimension - Length Overall inch |
24 in |
| Dimension - N (inch) | 0.62 in |
|
Dimension - Pad Width inch |
0.94 in |
| Dimensions |
24 in x 0.94 in x 0.13 in |
| Height |
0.13 in |
| Length | 24 in |
|
Width |
0.94 in |
Electrical Ratings
| Indoor Amperage | 190 |
| Outdoor Amperage | 225 |
Configuration
|
Connector Type |
Braid |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
|
Pallet Quantity |
1500 |
PRODUCT DATASHEET
