Description
GENERAL

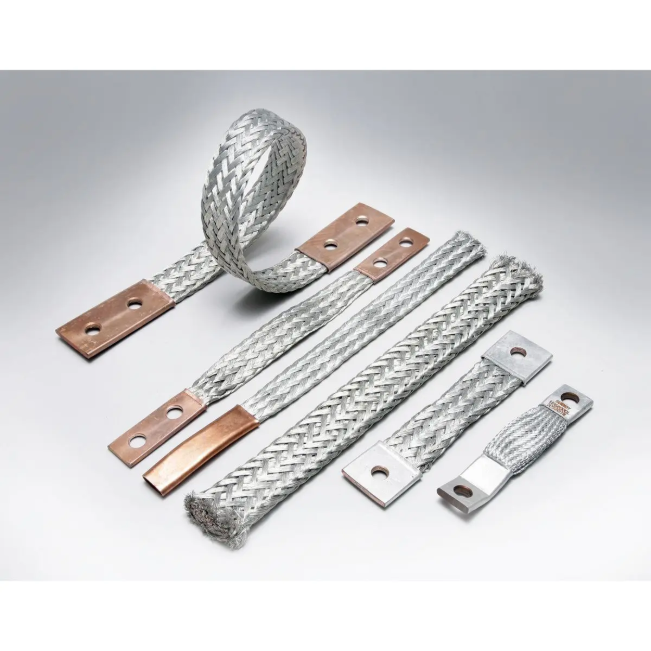

| Application | Flexible copper braid jumpers designed to take up linear expansion and contraction |
| Catalog Number | BD24N |
| Connector Type | Braid |
| Material | Copper |
| Material - Ferrules | Y |
| Physical Attribute - Number of Braids | 1 |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | Grounding and Bonding Connectors>Braid, Jumpers, Shunts>Braid Shunts |
| Product Type | Mechanical |
| Sub Brand | BRAID JUMPER |
| Type | B, Flexible |
| UPC | 781810807231 |
| UPC 14 Digit GTIN | 00781810807231 |
DIMENSIONS
| Dimension - D inch | 3.00 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 610 mm |
| Dimension - Length Overall inch | 24.00 in |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 0.94 in |
| Dimensions | 24 in x 0.94 in x 0.13 in |
| Height | 0.13 in |
| Length | 24 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
| Width | 0.94 in |
ELECTRICAL RATINGS
| Rating - Indoor Amperage | 190 A |
| Rating - Outdoor Amperage | 225 A |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | CM |
| UL Listed | Yes |
CONFIGURATION
| Connector Type | Braid |
LOGISTICS
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1500 |
