Description

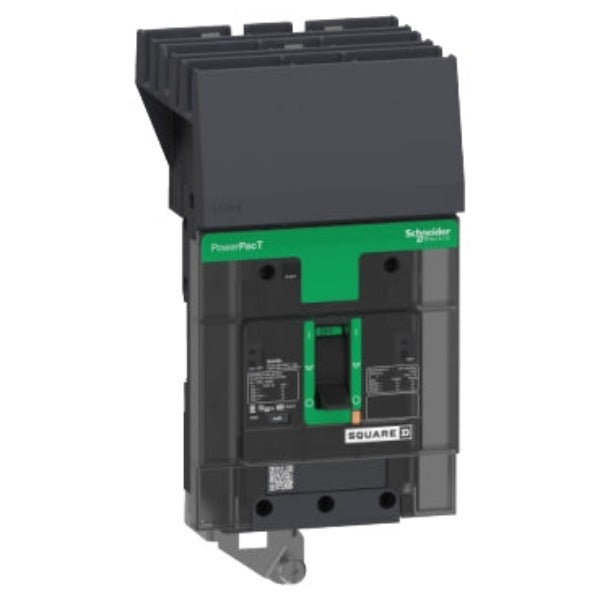

BDA36015 - Schneider Electric - I-Line Plug-In 15 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 15A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
Main | |
Range |
PowerPact |
Product name |
PowerPact B |
Device short name |
BD 015 |
Product or Component Type |
Circuit breaker |
Device Application |
Distribution |
Complementary | |
Line Rated Current |
15 A |
Number of Poles |
3P |
control type |
Toggle |
Breaking capacity code |
D |
Breaking capacity |
25 kA 208Y/120 V AC 50/60 Hz UL 489 |
[Ue] rated operational voltage |
525 V AC 50/60 Hz UL 489 |
Network Frequency |
50/60 Hz |
[Ics] rated service breaking capacity |
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 |
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
Trip unit technology |
Thermal-magnetic |
Continuous current rating |
80 % |
[Ui] rated insulation voltage |
800 V IEC 60947-2 |
Suitability for isolation |
Yes IEC 60947-2 |
Utilisation category |
Category A |
Mechanical durability |
20000 cycles IEC 947-1 Annex K ed 5.2 |
Electrical durability |
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
Connection pitch |
1.06 in (27 mm) |
AWG gauge |
AWG 14...AWG 2/0 aluminium/copper |
Local signalling |
Presence of auxiliary contacts flag green) |
Mounting mode |
I-Line |
Electrical connection |
I-Line connection line |
Mounting Height |
4.49 in (114 mm) |
Tightening torque |
31.86...38.94 lbf.in (3.6...4.4 N.m) 0.00...0.01 in (2.5...6 mm) (AWG 14...AWG 10) |
Number of slots |
1 auxiliary switch OF plug-in) |
Power wire stripping length |
0.79 in (20 mm) |
Color |
Gray RAL 7016) |
9 mm pitches |
9 |
Height |
5.39 in (137 mm) |
Width |
3.19 in (81 mm) |
Depth |
3.50 in (89 mm) |
Net Weight |
2.90 lb(US) (1.315 kg) |
Quantity per Set |
Set of 1 |
Phase connection |
ABC |
Circuit breaker application |
HACR rated |
Environment | |
Quality labels |
CE |
Standards |
EN/IEC 60947-5-1 |
Product certifications |
UL |
IP degree of protection |
Front cover IP40 IEC 60529 |
IK degree of protection |
IK07 IEC 62262 |
Pollution degree |
3 IEC 60947-1 |
Ambient Air Temperature for Operation |
-13...158 degF (-25...70 degC) |
Ambient Air Temperature for Storage |
-58...185 degF (-50...85 degC) |
Operating altitude |
< 6561.68 ft (2000 m) without derating |
Ordering and shipping details | |
Category |
01133-BDA I-LINE BREAKER |
Discount Schedule |
DE2 |
GTIN |
3606481152480 |
Returnability |
Yes |
Country of origin |
MX |
Packing Units | |
Unit Type of Package 1 |
Db |
Number of Units in Package 1 |
1 |
Package 1 Height |
4.88 in (12.4 cm) |
Package 1 Width |
7.99 in (20.3 cm) |
Package 1 Length |
12.80 in (32.5 cm) |
Package 1 Weight |
4.21 lb(US) (1.91 kg) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-BFrame-Molded-Case-Circuit-Breakers_BDA36015
