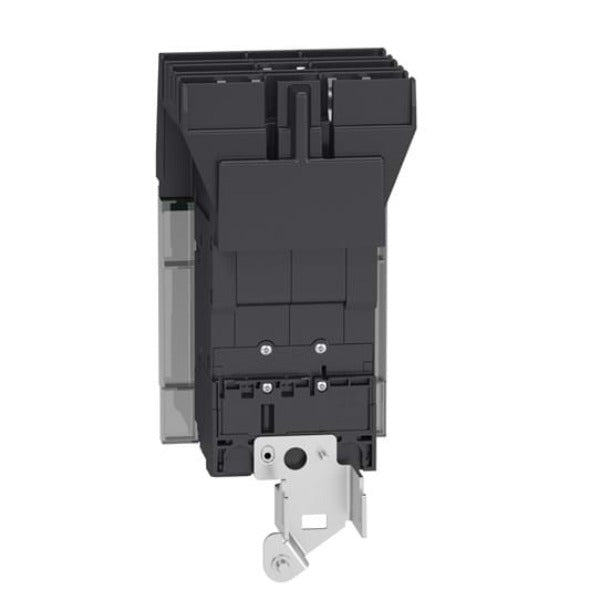

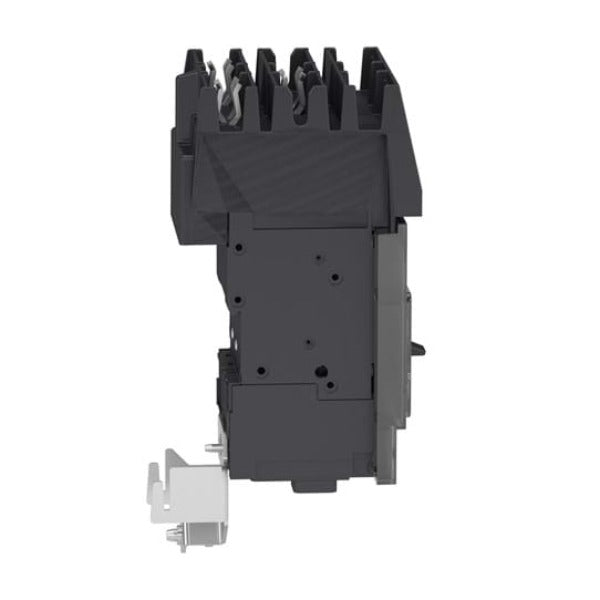

BDA36070 - Schneider Electric - I-Line Plug-In 70 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 70A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
GENERAL SPECIFICATIONS
|
Main |
|
|
Range |
PowerPact |
|
Product name |
PowerPact B |
|
Device short name |
BD 070 |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Complementary |
|
|
Line Rated Current |
70 A |
|
Number of Poles |
3P |
|
control type |
Toggle |
|
Breaking capacity code |
D |
|
Breaking capacity |
25 kA 208Y/120 V AC 50/60 Hz UL 489 |
|
[Ue] rated operational voltage |
525 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Ics] rated service breaking capacity |
25 kA 220...240 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
800 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
Mechanical durability |
20000 cycles IEC 947-1 Annex K ed 5.2 |
|
Electrical durability |
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
|
Connection pitch |
1.06 in (27 mm) |
|
AWG gauge |
AWG 14...AWG 2/0 aluminium/copper |
|
Local signalling |
Presence of auxiliary contacts flag green) |
|
Mounting mode |
I-Line |
|
Electrical connection |
I-Line connection line |
|
Mounting Height |
4.49 in (114 mm) |
|
Tightening torque |
31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) |
|
Number of slots |
1 auxiliary switch OF plug-in) |
|
Power wire stripping length |
0.79 in (20 mm) |
|
Color |
Gray RAL 7016) |
|
9 mm pitches |
9 |
|
Height |
5.39 in (137 mm) |
|
Width |
3.19 in (81 mm) |
|
Depth |
3.50 in (89 mm) |
|
Net Weight |
2.90 lb(US) (1.315 kg) |
|
Quantity per Set |
Set of 1 |
|
Phase connection |
ABC |
|
Circuit breaker application |
HACR rated |
|
Environment |
|
|
Quality labels |
CE |
|
standards |
CSA C22.2 No 5 |
|
Product certifications |
UL |
|
IP degree of protection |
Front cover IP40 IEC 60529 |
|
IK degree of protection |
IK07 IEC 62262 |
|
Pollution degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
|
Operating altitude |
< 6561.68 ft (2000 m) without derating |
|
Ordering and shipping details |
|
|
Category |
01133-BDA I-LINE BREAKER |
|
Discount Schedule |
DE2 |
|
GTIN |
3606481152664 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
5.00 in (12.7 cm) |
|
Package 1 Width |
8.11 in (20.6 cm) |
|
Package 1 Length |
12.72 in (32.3 cm) |
|
Package 1 Weight |
4.21 lb(US) (1.91 kg) |
