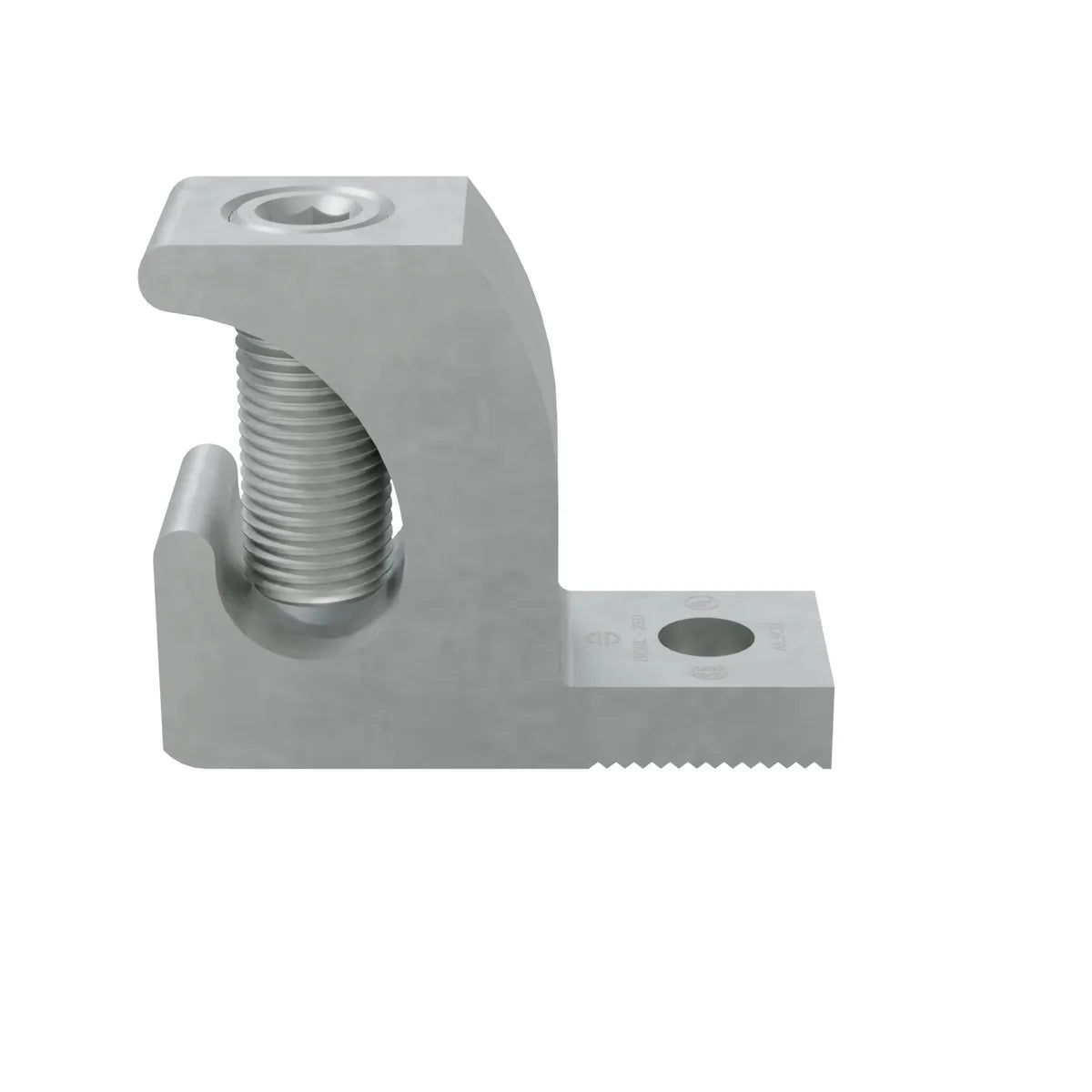

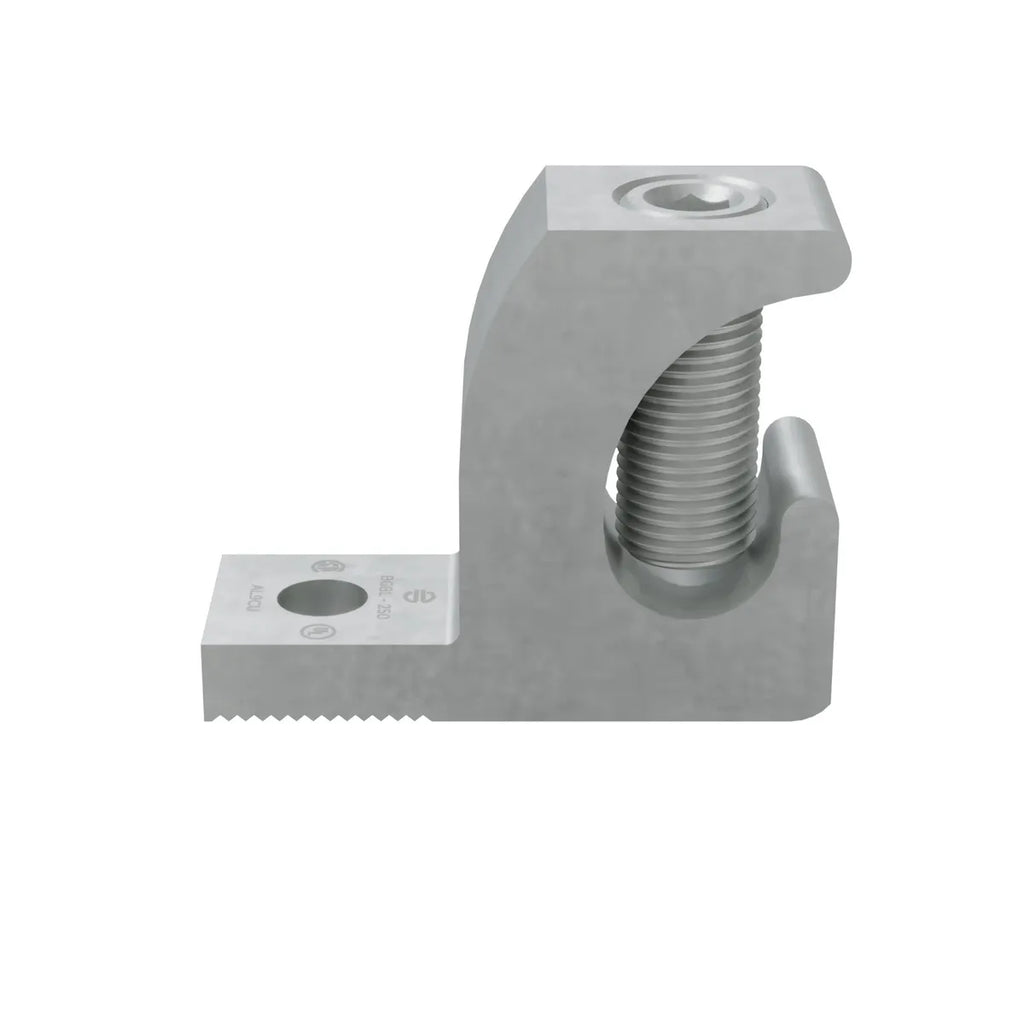

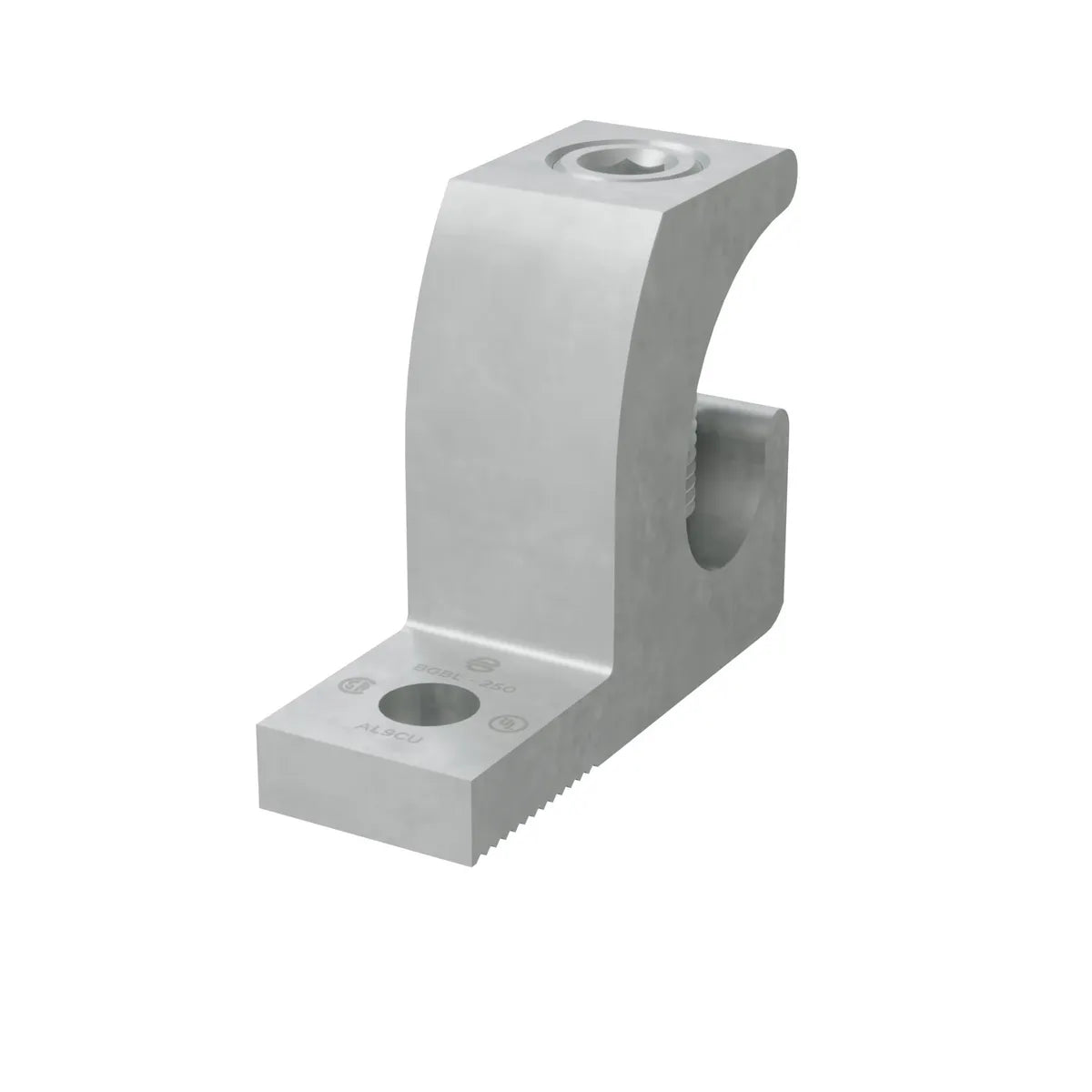

BGBL250 - Burndy - 250 kcmil Tin Plated Aluminum Lay-in Lug

BGBL250 - Burndy - 250 kcmil Tin Plated Aluminum Lay-in Lug

Tin Plated Aluminum Lay-in Lug, 250 kcmil-#6 AWG, 7/16" Zinc Plated Terminal Screw, 5/16" Stud

GENERAL SPECIFICATIONS

Application	For Copper And Aluminum Conductor Combinations Up To 90 DEG C
Catalog Number	BGBL250
EU RoHS Indicator	Yes
Hex Size	5/16
Installation Torque Recommended in-lb	180 LBS/in
Material	Aluminum
Material Type - Screw	Steel - Zinc Plated
Physical Attribute - Screw Type	Allen
Plated	Y
Plating Type	Tin
Sub Brand	QIKLUG
Temperature Rating	194
Trade Name	QIKLUG™
Type	BGBL, Lay-In
UPC	781810124819
UPC 14 Digit GTIN	00781810124819



Dimensions

Dimension - D inch	1.18 in
Dimension - Height fraction	1-4/5 in
Dimension - Height inch	1.79 in
Dimension - Height mm	45.5 mm
Dimension - Hole Size inch	0.33 in
Dimension - Hole Size mm	8 mm
Dimension - L Length Overall mm	56 mm
Dimension - Length Overall inch	2.20 in
Dimension - N inch	0.4 in
Dimension - Pad Width inch	0.80 in
Hex Size	5/16
Package Height	0 in
Package Length	0 in
Package Weight	0 lb
Package Width	0 in



Conductor Related

Conductor - AL Str Size	6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - AL Str Size Range	6 AWG-250 kcmil
Conductor - Copper Solid Size	6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size Range	6 AWG-4/0 AWG
Conductor - Copper Str Size	6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
Conductor - Copper Str Size Range	6 AWG - 250 kcmil
Conductor Type	AL C Str-Size CU C Str-Size CU C Solid-Size



Force Related

Installation Torque Recommended in-lb

180 LBS/in

Operational

Temperature Rating

194

Logistics

Carton Quantity	175
Minimum Pack Quantity	1
Pallet Quantity	1



PRODUCT DATASHEET

BGBL250
