Description
| Main | |
|---|---|
| Range | PowerPact |
| Product name | PowerPact B |
| Device short name | BG 040 |
| Product or Component Type | Circuit breaker |
| Device Application | Distribution |
| Complementary | |
| Line Rated Current | 40 A |
| Number of Poles | 3P |
| Control Type | Toggle |
| Breaking capacity code | G |
| Breaking capacity | 65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480/277 V AC 50/60 Hz UL 489 35 kA 480 V AC 50/60 Hz UL 489 20 kA 250 V DC UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 |
| [Ue] rated operational voltage | 525 V AC 50/60 Hz UL 489 |
| Network Frequency | 50/60 Hz |
| [Ics] rated service breaking capacity | 65 kA 220...240 V AC 50/60 Hz IEC 60947-218 kA 500...525 V AC 50/60 Hz IEC 60947-235 kA 380...415 V AC 50/60 Hz IEC 60947-235 kA 440 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| Continuous current rating | 80 % |
| [Ui] rated insulation voltage | 800 V IEC 60947-2 |
| Suitability for isolation | Yes IEC 60947-2 |
| Utilisation category | Category A |
| Mechanical durability | 20000 cycles IEC 947-1 Annex K ed 5.2 |
| Electrical durability | 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
| Connection pitch | 1.06 in (27 mm) |
| AWG gauge | 6 AWG...2/0 AWG fine stranded aluminium/copper 14 AWG...3/0 AWG rigid or stranded aluminium/copper |
| Local signalling | Presence of auxiliary contacts flag green) |
| Mounting mode | Clip-on 35 x 15 mm symmetrical DIN rail)By screws plate) |
| Electrical connection | Everlink lug, lineEverlink lug, load |
| Tightening torque | 44.3 lbf.in (5 N.m) 0.004…0.02 in² (2.5…16 mm²) (14 AWG...4 AWG)79.7 lbf.in (9 N.m) 0.04…0.1 in² (25…95 mm²) (3 AWG...3/0 AWG) |
| Number of slots | 1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in) |
| Power wire stripping length | 0.8 in (20 mm) |
| Color | Gray RAL 7016) |
| 9 mm pitches | 9 |
| Height | 5.4 in (137 mm) |
| Width | 3.2 in (81 mm) |
| Depth | 3.1 in (80 mm) |
| Product Weight | 2.368 lb(US) (1.074 kg) |
| Quantity per Set | Set of 1 |
| Circuit breaker application | HACR rated |
| Environment | |
| Quality labels | CE |
| Standards | UL 489GB 14048.2NMX J-266CSA C22.2 No 5EN/IEC 60947-2NEMA AB1EN/IEC 60947-5-1 |
| Product certifications | ULIECCCCEACCSANOM |
| IP degree of protection | Front cover IP40 IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Pollution degree | 3 IEC 60947-1 |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -58…185 °F (-50…85 °C) |
| Operating altitude | < 6561.68 ft (2000 m) without derating5000 m with derating |
| Ordering and shipping details | |
| Category | US10DE201131 |
| Discount Schedule | 0DE2 |
| GTIN | 3606481154095 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 4.00 in (10.16 cm) |
| Package 1 Width | 6.50 in (16.51 cm) |
| Package 1 Length | 10.50 in (26.67 cm) |
| Package weight(Lbs) | 2.930 lb(US) (1.329 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

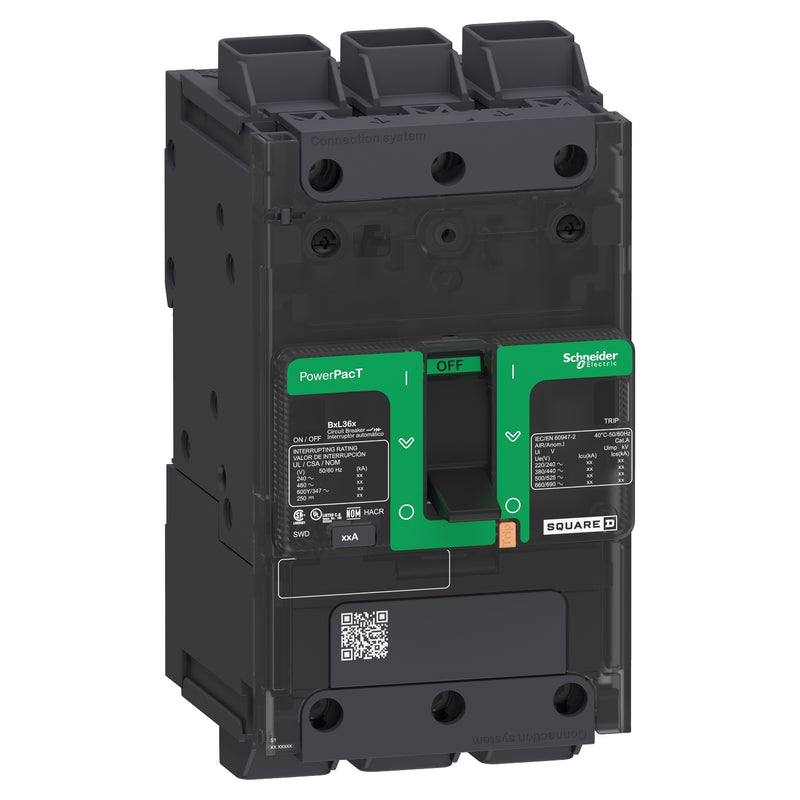

BGL36040
