Description

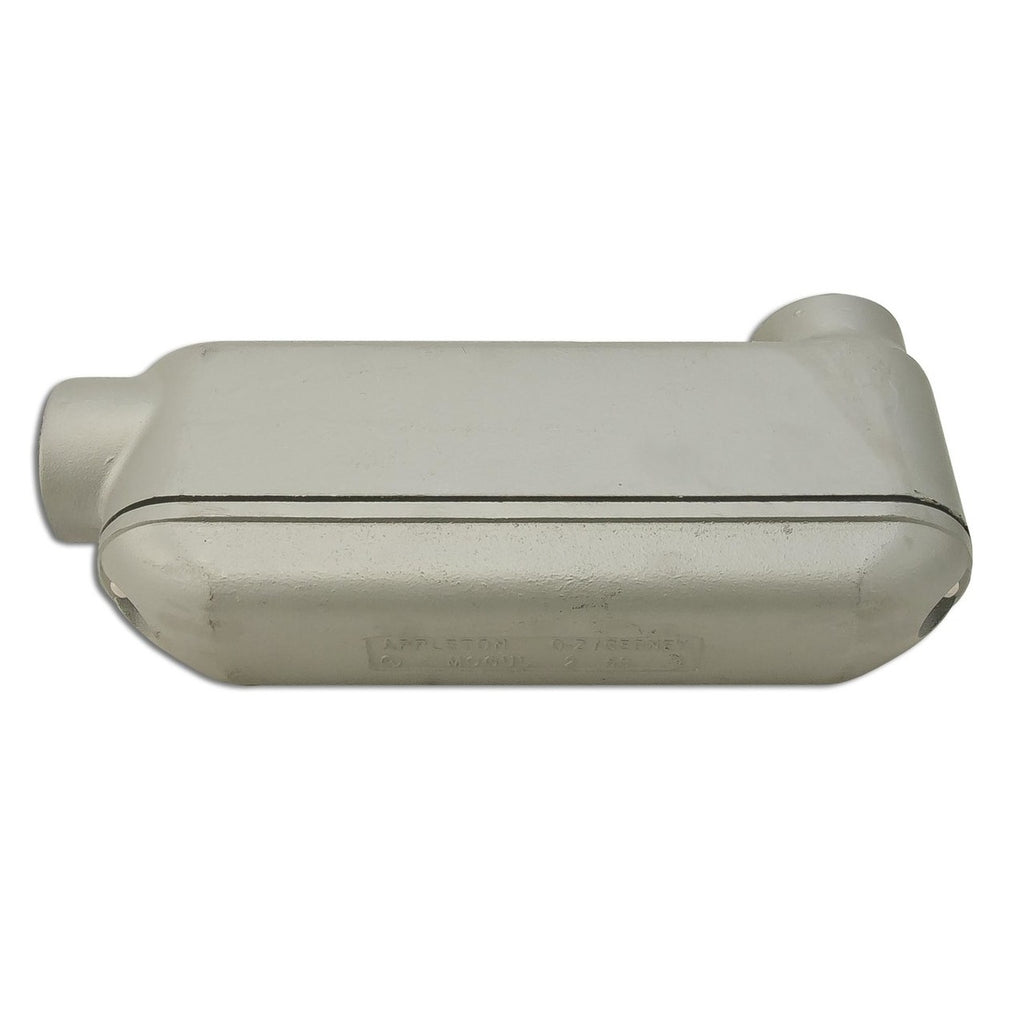

BLB200A - Appleton - 2" Mogul Unilet Type LB
A mogul-size (2" hub) Type LB conduit body from Appleton's NEC 6x Mogul UNILETS line, made of copper-free aluminum with epoxy powder-coat finish. It offers approximately 145 cu in of internal capacity - ideal for pulling heavy conductors, splicing, and 90 deg bends. Features include smooth integral bushings, tapered FNPT threads for secure joints and grounding, captive stainless steel screws on the raised cast cover with neoprene gasket, built-in rollers for easier cable pulling, and compliance with NEC 314.28(A)(2) spacing rules. It's UL-listed, CSA-certified, and meets NEMA FB-1 standards
GENERAL SPECIFICATIONS
| Access Opening | Back |
| Configuration | LB |
| Hub Location | 90 Degree |
| Number of Hubs | 2 |
| Hub Size | 2 Inch |
| Size | 14.63 Inch Length x 3.13 Inch Width x 6.31 Inch Height |
| Installation | Threaded |
| Material | Epoxy Powder Coated Copper-Free Aluminum (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 300 MCM; Capacity 145 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/CEC, NEMA FB-1 |
