Description

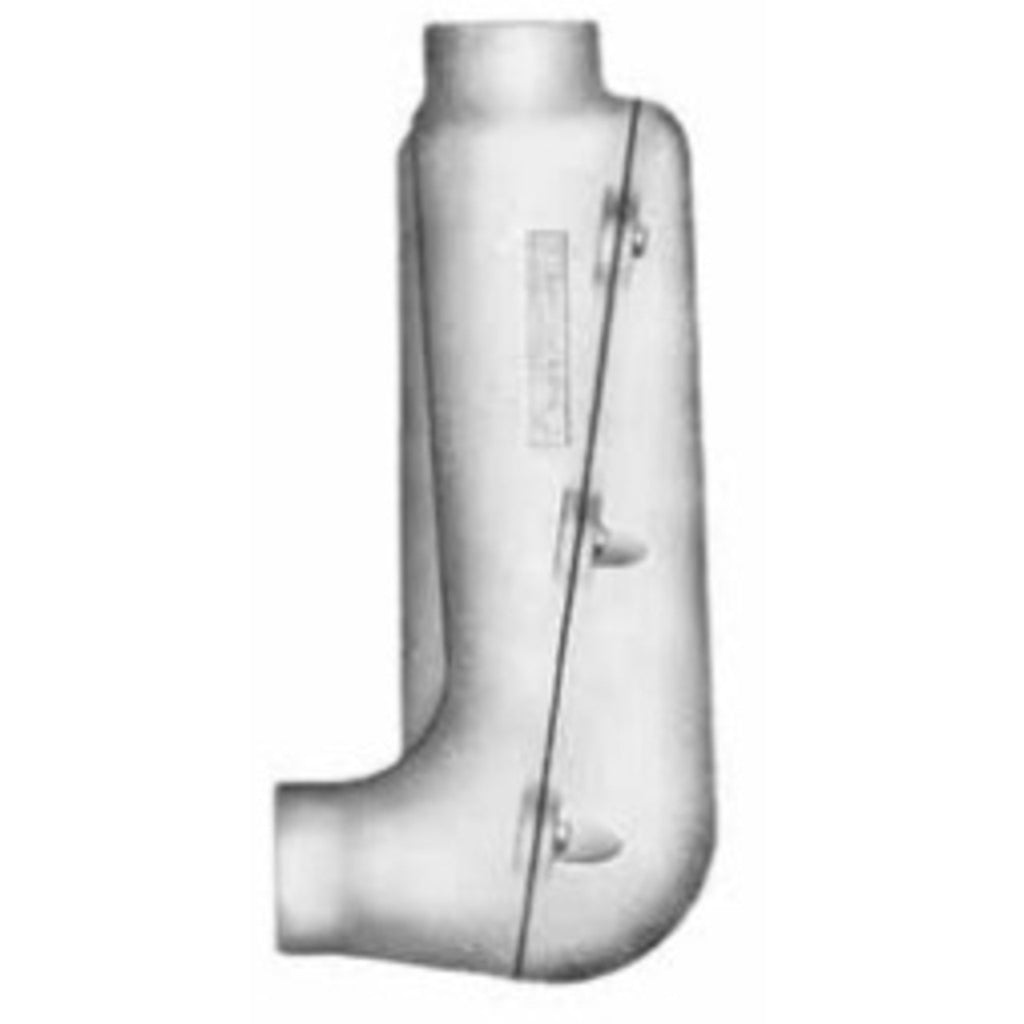

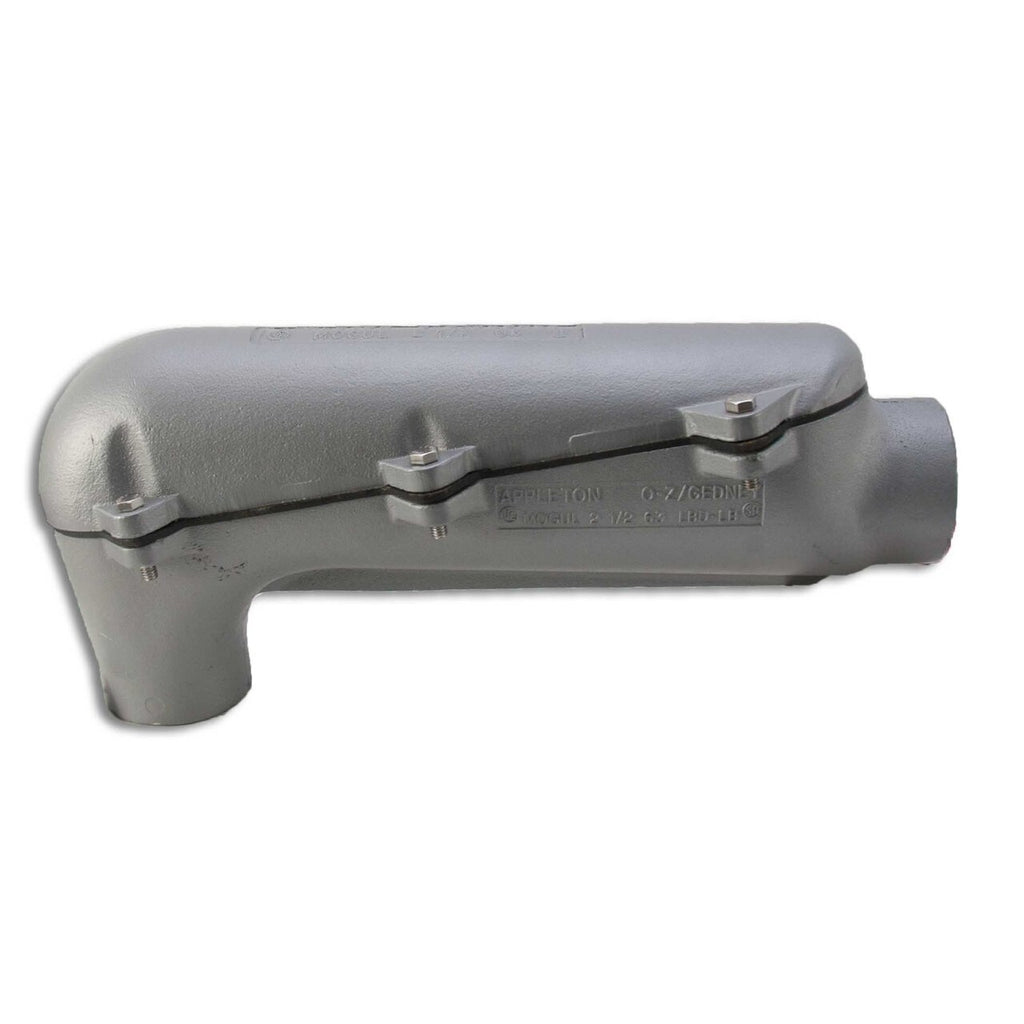

BLB200M - Appleton - 2" Mogul Type LB Malleable Iron Conduit Body
Essentially the same dimensions and features as the BLB200A, but constructed from rugged malleable iron with a triple-coat (zinc, chromate, epoxy) finish-making it well-suited for harsh industrial and outdoor environments. It retains the 2″ hub size, 145 cu in capacity, rollers, bushings, tapered threads, captive screws, neoprene gasket, and NEC-compliant clearances .
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Malleable iron bodies and covers have triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; steel covers have zinc electroplate; copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stainless steel
