Description

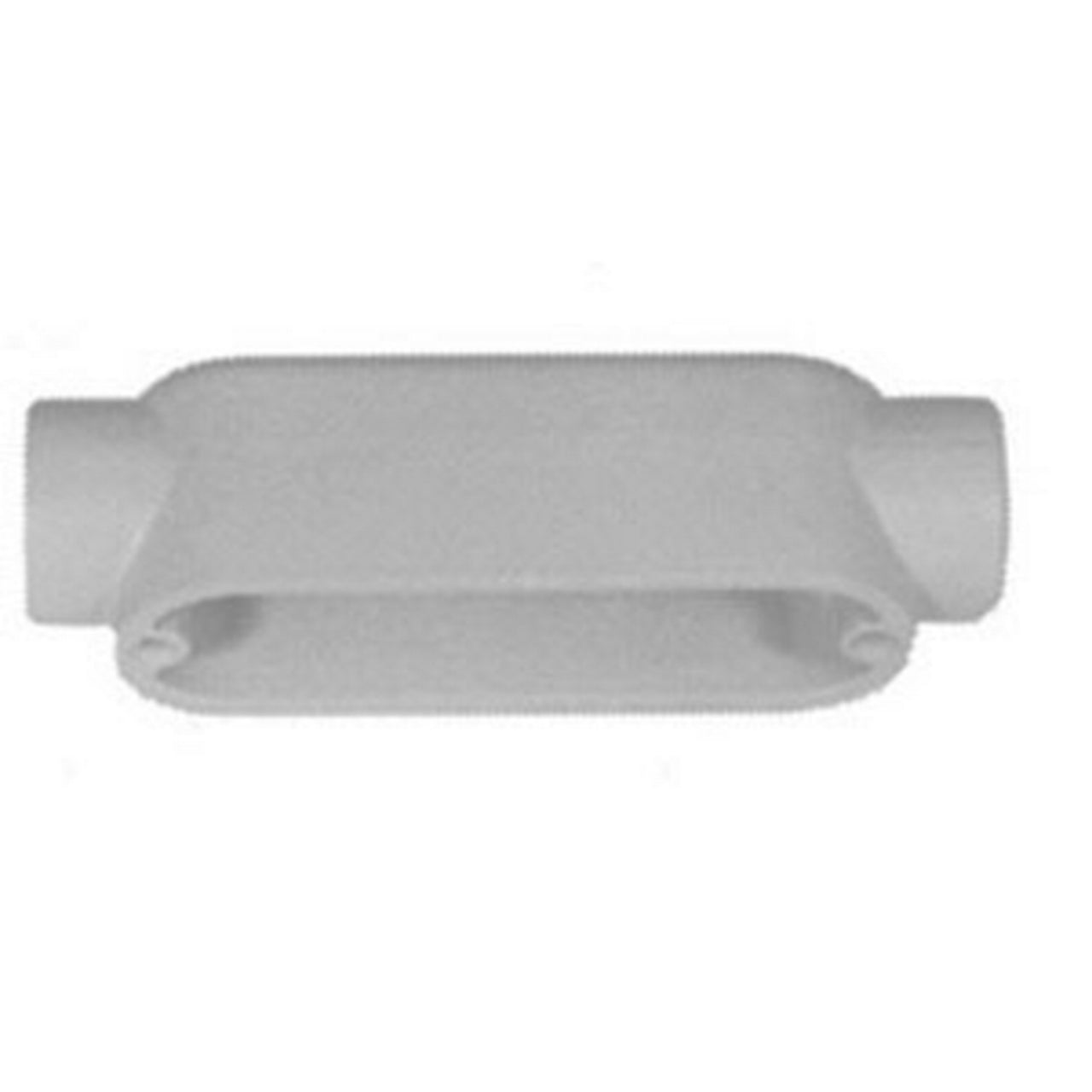

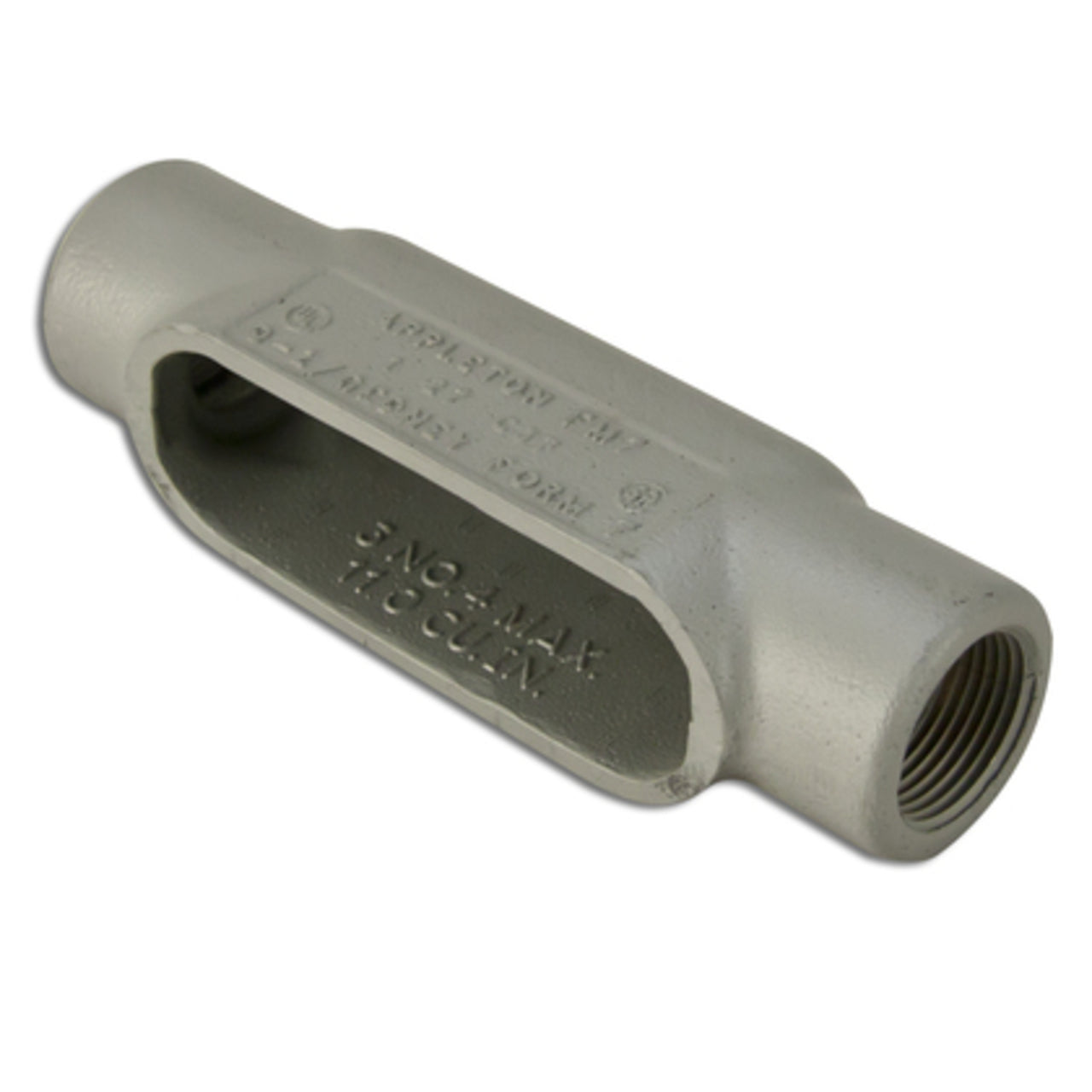

C27SA - Appleton - 3/4" Form 7 Type C Aluminum Conduit Body
3/4" hub FM7 Type C bodies in aluminum, with SA option for stainless-steel elements. Retain all FM7 features: Wedge-Lok(TM) covers, flat backs, bushings, threaded connections, captive screws, gasket, and compliance with wet-location ratings
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Grayloy-iron bodies and covers with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; cast aluminum bodies and covers with epoxy powder coat; steel covers with zinc electroplate; stamped aluminum covers
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
