Description

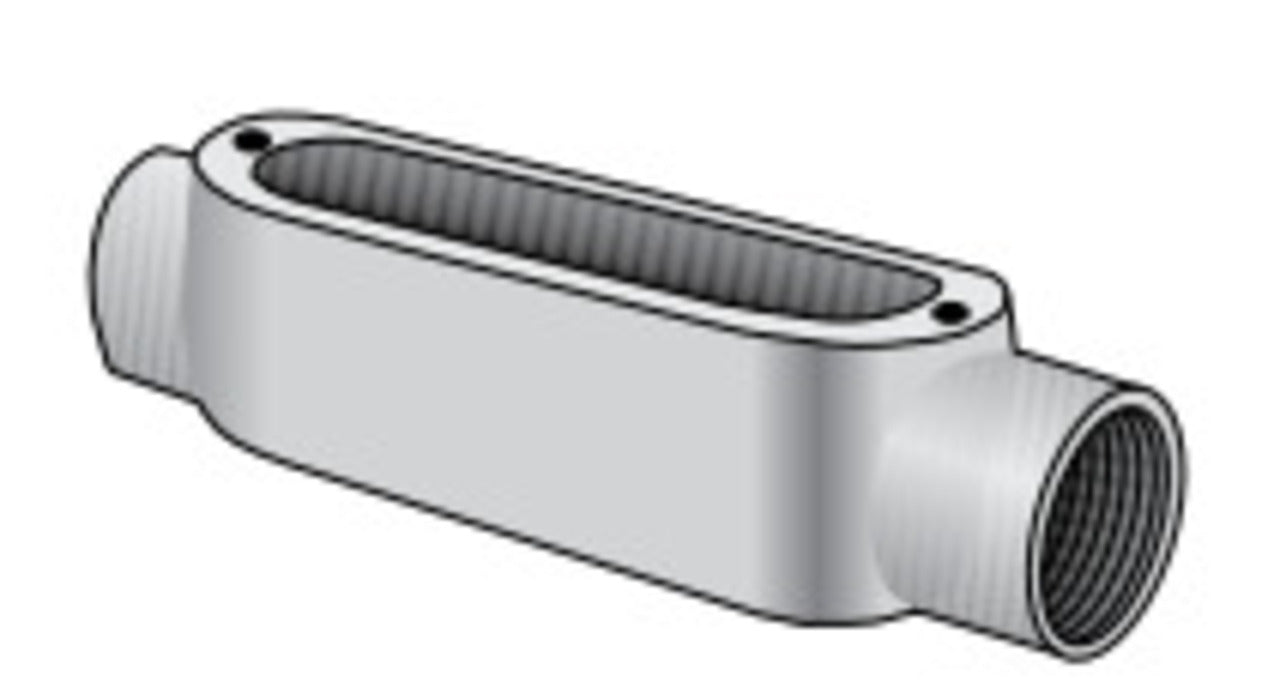

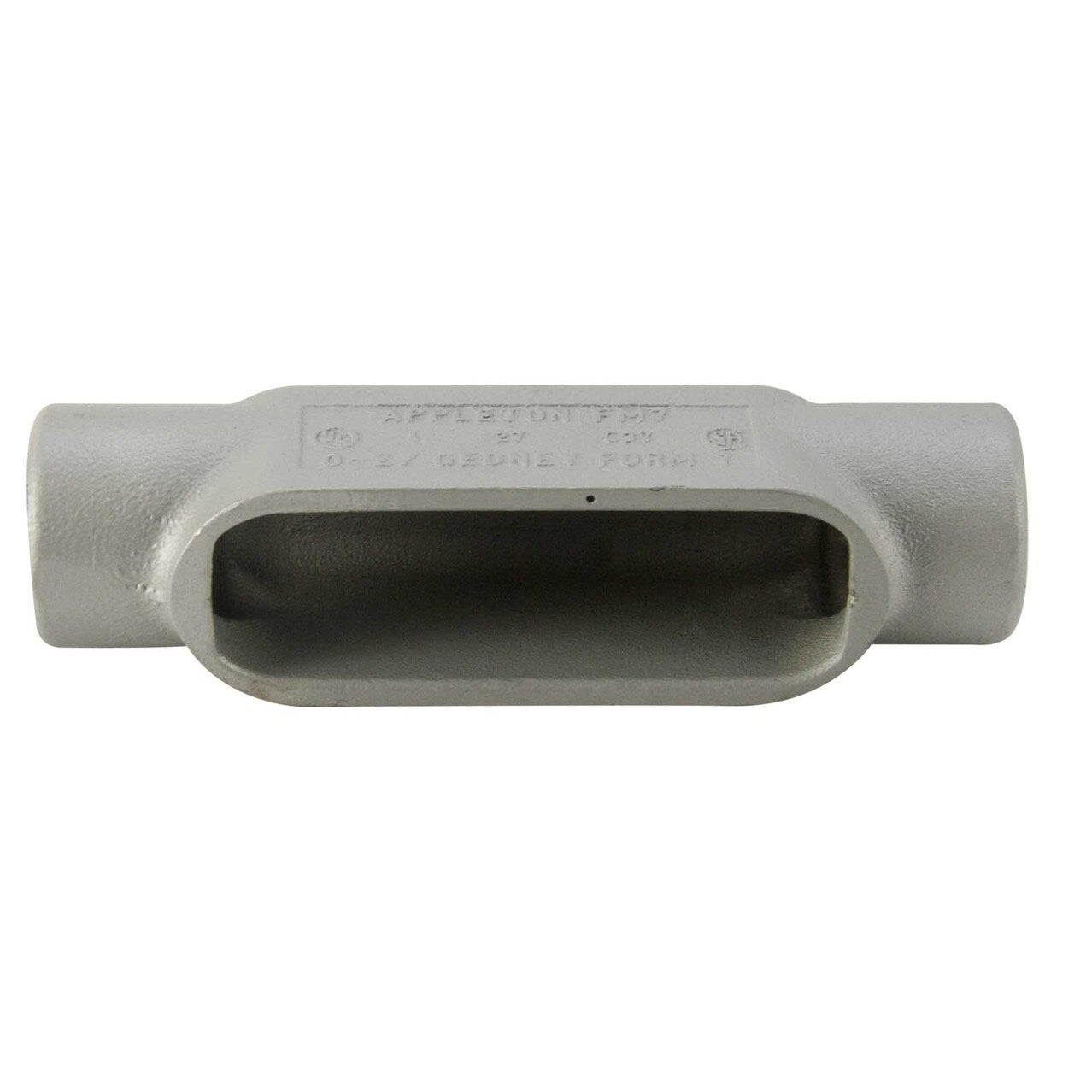

C28 - Appleton - 3/4" Form 8 Type C Malleable Iron Conduit Body
A ¾″ hub FM7 Type C body made from grayloy iron with triple-coat finish. Features Wedge‑Lok™ covers, integral bushings, threaded connections, screws, gasket, and flat-back housing for splicing space .
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Grayloy-iron bodies and covers with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; stamped steel covers with zinc electroplate; stainless steel cover screws; neoprene gaskets
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
PRODUCT DATASHEET
