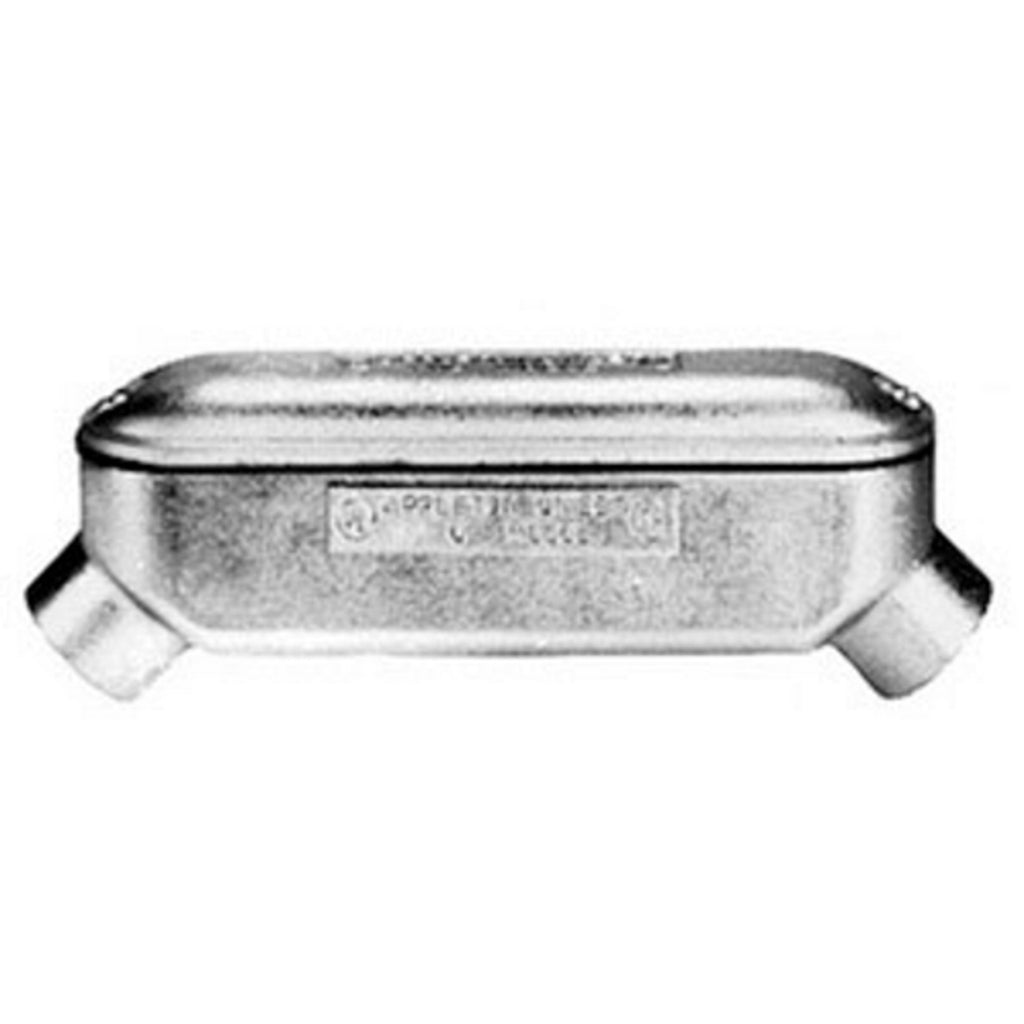

BUB150M - Appleton - 1-1/2" Mogul Type UB Malleable Iron Conduit Body
A Type UB converter body with a 11/2" hub and greater internal volume (around 91 cu in). Constructed from malleable iron with triple-coat finish, it provides integrated rollers, bushings, secure threads, captive screws, and gasket. Meets all the same industrial standards and NEC spacing requirements.
GENERAL SPECIFICATIONS
| Access Opening | Back |
| Configuration | UB |
| Hub Location | 45 Degree |
| Number of Hubs | 2 |
| Hub Size | 1-1/2 Inch |
| Size | 13.69 Inch Length x 3.13 Inch Width x 4.63 Inch Height |
| Installation | Threaded |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval | UL 514B, CSA C22.2 |
| Used On | IMC/Threaded Rigid Metal Conduit |
| Brand Name | Unilets® |
| Additional Information | Wire Size (3) 3/0 AWG; Capacity 91 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/CEC, NEMA FB-1 |
