Description

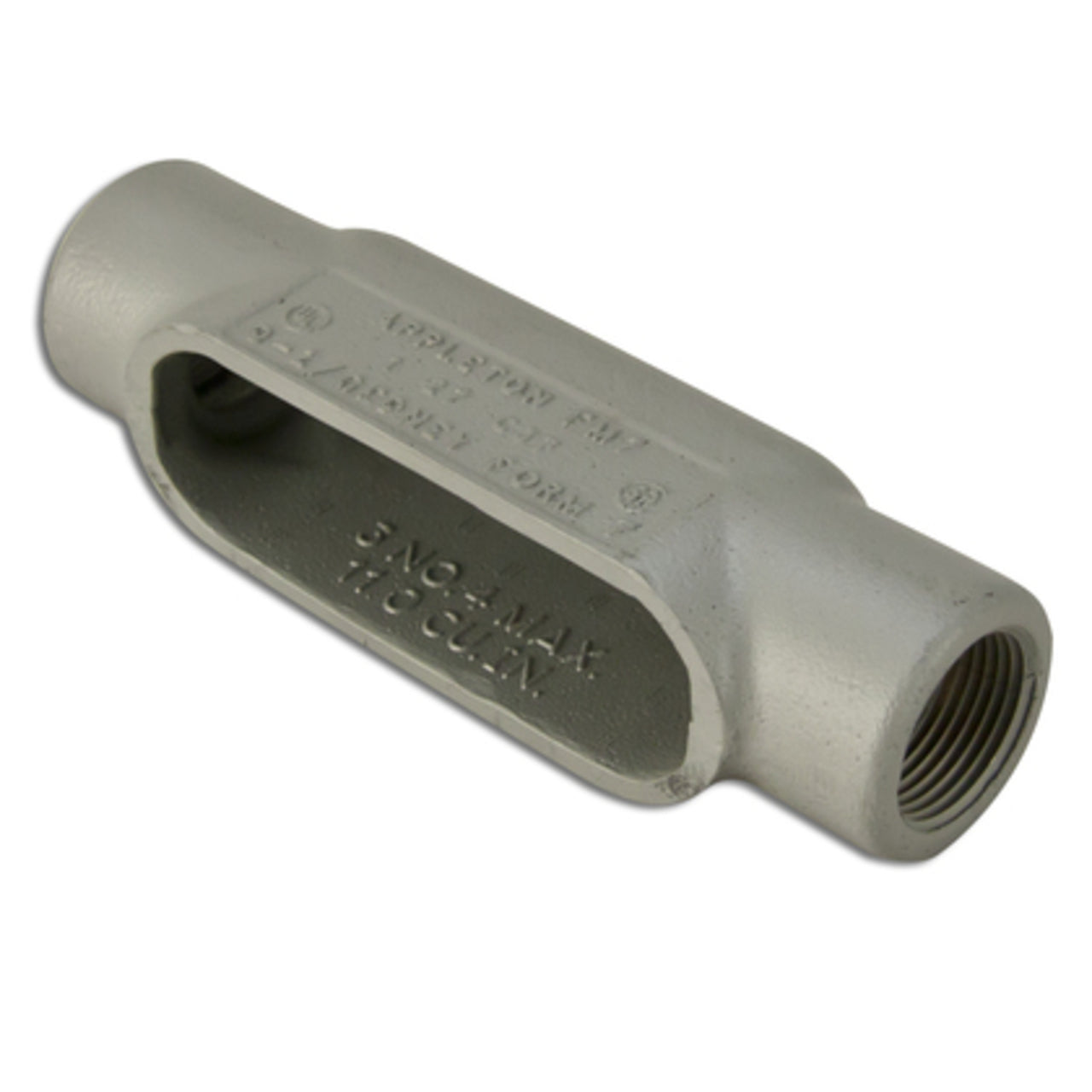

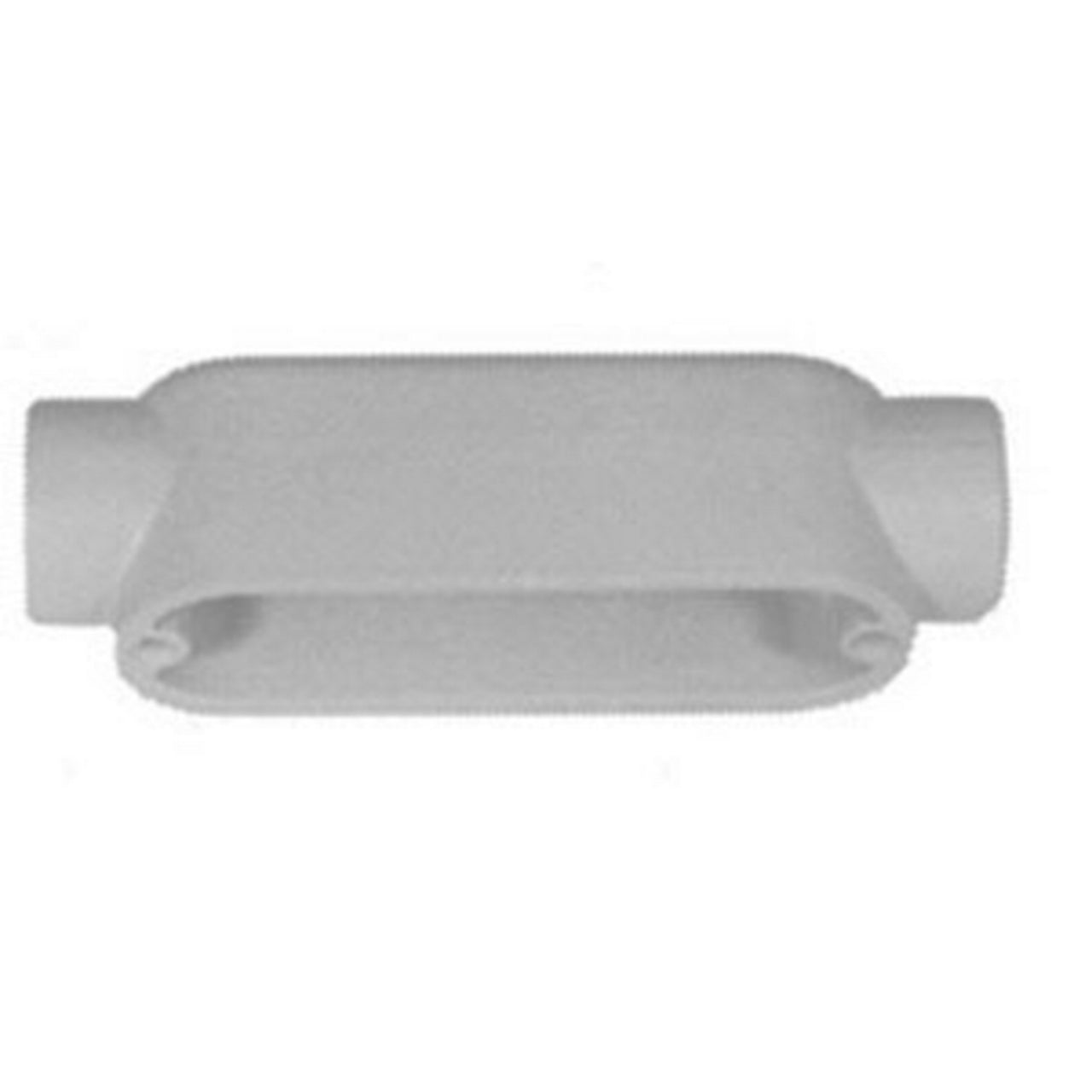

C100A - Appleton - 1" Form 85 Type C Aluminum Conduit Body
A compact Type C FM7 body with a 1" hub, made of copper-free aluminum with epoxy powder-coating. Part of the FM7 series featuring Wedge-Lok(TM) clip-on covers suitable for wet locations, flat-back design for splicing space, internal bushings, tapered threads, captive screws, neoprene gasket, and NEMA FB-1 rating
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- 1/2 thru 2 Standard Materials and Finishes
- Pressure cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- 2-1/1 thru 4 Standard Materials and Finishes
- Sand cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
