Description

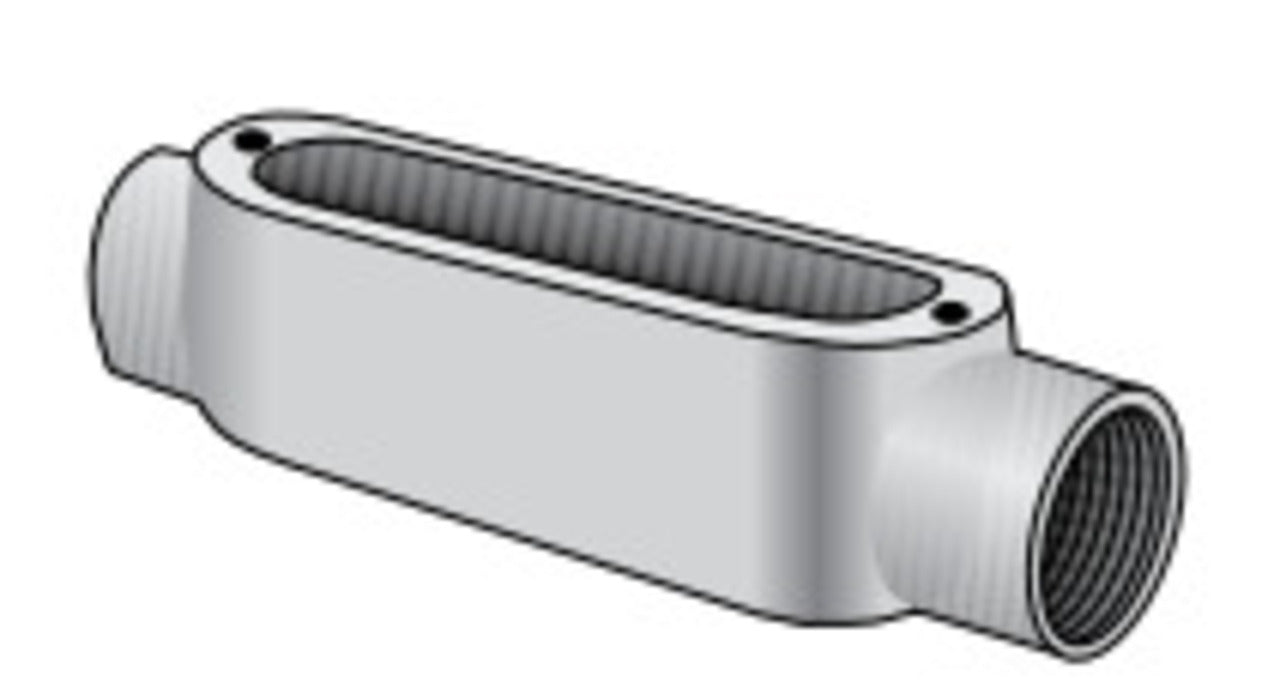

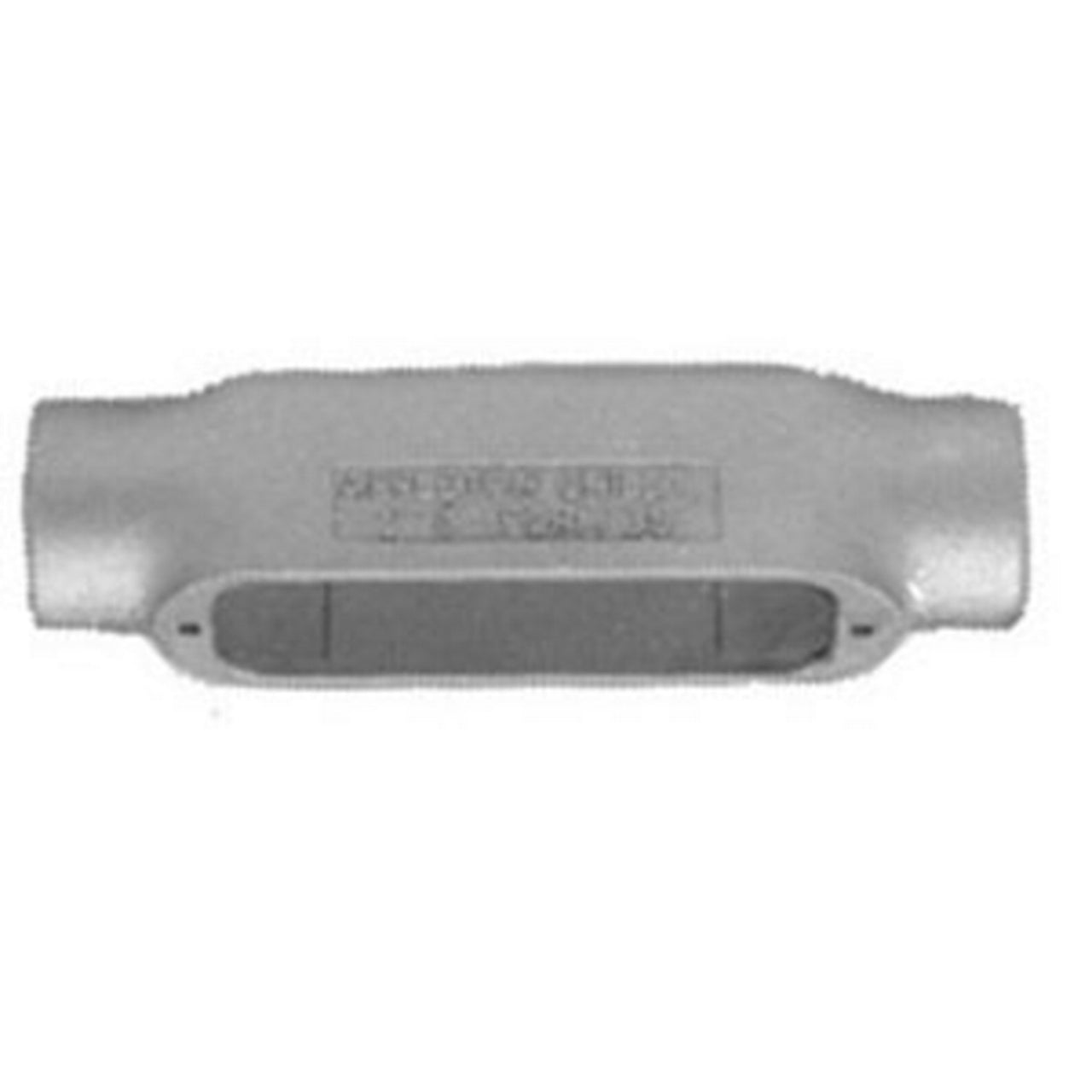

C150M - Appleton - 1-1/2" Form 35 Type C Malleable Iron Conduit Body
A larger grayloy iron FM7 conduit body featuring a 1½″ hub, enhanced internal capacity, Wedge‑Lok™ cover, bushings, tapered threads, captive screws, and gasket for wet location use. Meets NEC and NEMA standards .
GENERAL SPECIFICATIONS
-
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials
- Malleable iron bodies; malleable iron, steel or aluminum covers; neoprene or composition fiber gaskets; and stainless steel cover screws
- Standard Finishes
- Malleable iron bodies and covers have triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; steel covers have zinc electroplate
