Description

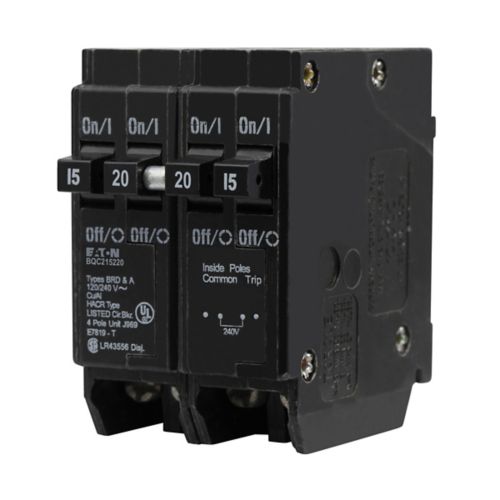

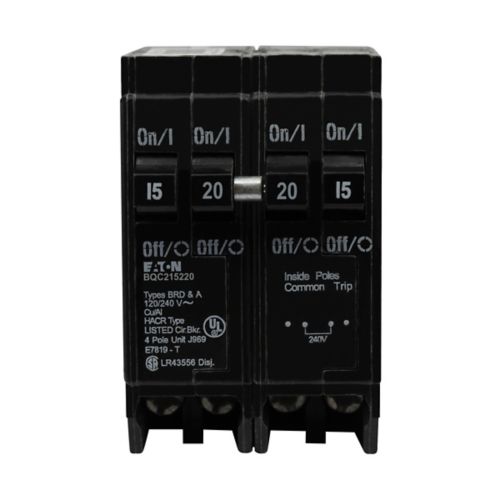

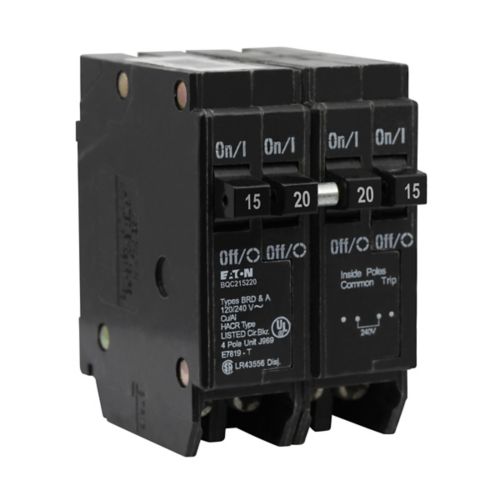

BQC215220 - Eaton - 1" 120/240V Four-Pole Type Bqc Ctl Plug-On Circuit Breakers
Eaton BR thermal magnetic circuit breaker,Type BQC 1-Inch CTL plug-on circuit breaker, Includes rejection tab feature,(2) Single-Pole 20 A, (2) Two-Pole 15 A,10 kAIC, Four-pole,120/240V, BQC, Common breaker trip,#14-4 AWG Cu/Al, BQC
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR thermal magnetic circuit breaker
|
| Catalog Number |
BQC215220
|
| UPC |
786676005982
|
| Product Length/Depth |
3 in
|
| Product Height |
3 in
|
| Product Width |
2 in
|
| Product Weight |
0.9 lb
|
| Compliances |
Federal Specifications Classification W-C375
|
| Certifications |
UL 489
|
| Catalog Notes |
All Type BD Duplex and BQ Quadplex circuit breakers carry a listing for HACR applications. All 15 and 20-ampere single poles are switch duty rated.
|
| Product Type |
Thermal magnetic circuit breakers
|
PRODUCT SPECIFICATIONS
| Used with |
Type BR Loadcenters
|
| Amperage Rating |
(2) Single-Pole 20A, (2) Two-Pole 15A
|
| Voltage rating |
120/240 V
|
| Trip Type |
Common breaker trip
|
| Circuit breaker type |
BQ
|
| Mounting Method |
Plug-on
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BQC
|
| Wire size |
#14-4 AWG Cu/Al
|
| Number of poles |
Four-pole
|
| Type |
Type BQC 1-Inch CTL plug-on circuit breaker
|
| Special features |
Includes rejection tab feature
|
PRODUCT DATASHEET
