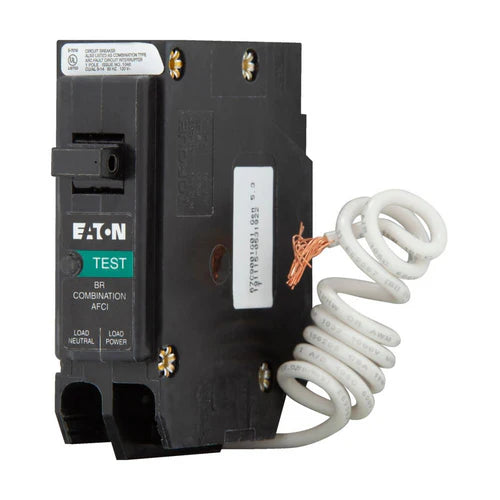

BRN115AF - Eaton - 15 Amp 120 Volt Single-Pole Afci Circuit Breaker Type Br Plug-On
BRN115AF is an Eaton 15 Amp, 120 Volt, single-pole AFCI circuit breaker designed for Type BR loadcenters with plug-on mounting.This Eaton BRN115AF circuit breaker features a 10 kA interrupt rating, thermal magnetic trip unit, and supports #14-8 AWG copper/aluminum wiring. It is UL listed and intended for arc fault protection in residential and commercial electrical panels.
GENERAL SPECIFICATIONS
| Manufacturer | Eaton |
| Part Number | BRN115AF |
| UPC | 786689040888 |
| GTIN | 00786689040888 |
| Country of Origin | Dominican Republic |
| Category | Circuit Breaker |
| Item Subcategory | Molded Case |
| Family / Series | Type BR |
| Type | BRN |
| Breaker Type | BR |
| Panel Compatibility | Type BR Loadcenters |
| Voltage Rating | 120 V AC |
| Amperage | 15 A |
| Phase | 1 |
| Number of Poles | 1 |
| AIC / Interrupt Rating | 10 kA @ 120 V |
| Trip Unit | Thermal Magnetic with AFCI |
| Trip Functions | LI – Long-Time and Instantaneous |
| Protection Type | Thermal Magnetic |
| Mounting / Connection Type | Plug-On / Plug-In |
| Terminal Connection | Plug-On |
| Wire Size (Cu/Al) | Min: #14 AWG / Max: #8 AWG |
| MCM Size | #14–#8 AWG (Cu/Al) |
| Dimensions (W x D) | 1 in × 1-1/4 in |
| Weight | 0.4 lb |
| Standards | UL Listed |
| Certifications | UL Listed |
