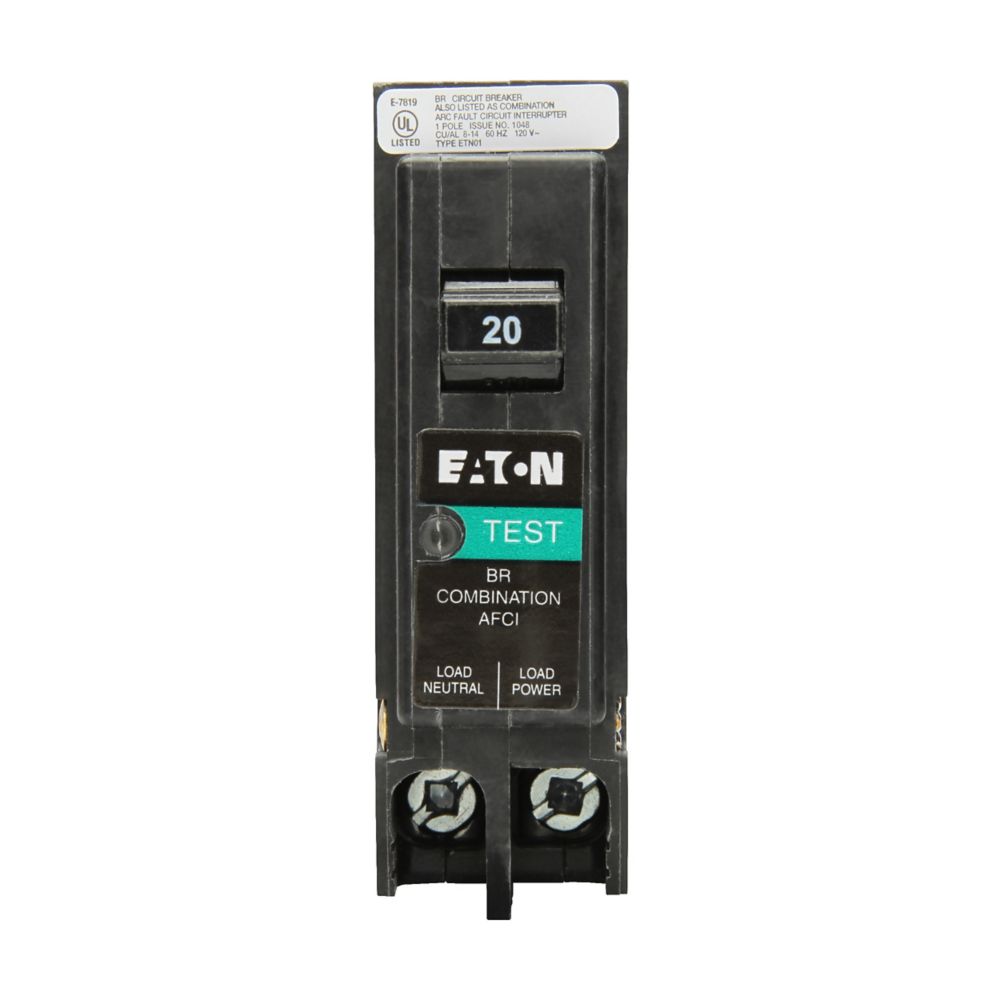

BRN120AF - Eaton Cutler Hammer - 20A Single-Pole BR AFCI Circuit Breaker
The Eaton BRN120AF is a compact, reliable AFCI breaker offering enhanced arc-fault protection for residential electrical systems. With a 20 A capacity, 10 kA interrupt rating, thermal-magnetic trip mechanism, and pigtail-neutral plug-on design, it ensures both safety and ease of installation. Certified by CSA and covered under Eaton’s warranty (as of June 2024), it's a robust choice for modern electrical safety needs.
GENERAL SPECIFICATIONS
| Product Name |
Eaton BR AFCI circuit breaker
|
| Catalog Number |
BRN120AF
|
| UPC |
786689040895
|
| Product Length/Depth |
4 in
|
| Product Height |
1 in
|
| Product Width |
3.5 in
|
| Product Weight |
0.45 lb
|
| Certifications |
CSA Certified
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
20 A
|
| Neutral |
Pigtail neutral
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BR
|
| Connection |
Plug-on
|
| Number of poles |
Single-pole
|
| Type |
AFCI Combination circuit breaker
|
