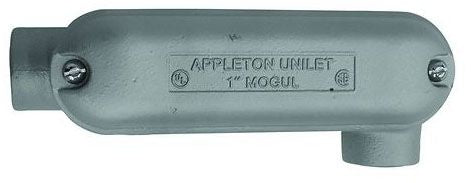

BUB100M - Appleton - 1-Inch Hub Mogul UNILETS Type UB Conduit Outlet Body Malleable Iron Triple Coated
ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON (BODY), STAINLESS STEEL (SCREW) MATERIAL; 9.63 INCH LENGTH X 2.38 INCH WIDTH X 3.5 INCH HEIGHT SIZE; IMC/THREADED RIGID METAL CONDUIT USED ON; 1 INCH HUB SIZE; THREADED INSTALLATION; UB CONFIGURATION; 2 HUB(S); UL 514B, CSA C22.2 APPROVAL; 45 DEGREE HUB LOCATION; BACK ACCESS OPENING; UNILETS[R] BRAND; WIRE SIZE (3) 2 AWG; CAPACITY 31 CUBIC INCH; ENCLOSURE RATING CLASS I DIV 2; APPLICATION COMMERCIAL/INDUSTRIAL, HAZARDOUS LOCATION; APPLICABLE STANDARD NEC 6X/CEC, NEMA FB-1
GENERAL SPECIFICATIONS
| Access Opening |
Back |
| Configuration |
UB |
| Hub Location |
45 Degree |
| Number of Hubs |
2 |
| Hub Size |
1 Inch |
| Size |
9.63 Inch Length x 2.38 Inch Width x 3.5 Inch Height |
| Installation |
Threaded |
| Material |
Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Screw) |
| Approval |
UL 514B, CSA C22.2 |
| Used On |
IMC/Threaded Rigid Metal Conduit |
| Brand Name |
Unilets(R) |
| Additional Information |
Wire Size (3) 2 AWG; Capacity 31 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC 6X/CEC, NEMA FB-1 |
PRODUCT DATASHEET
BUB100M
