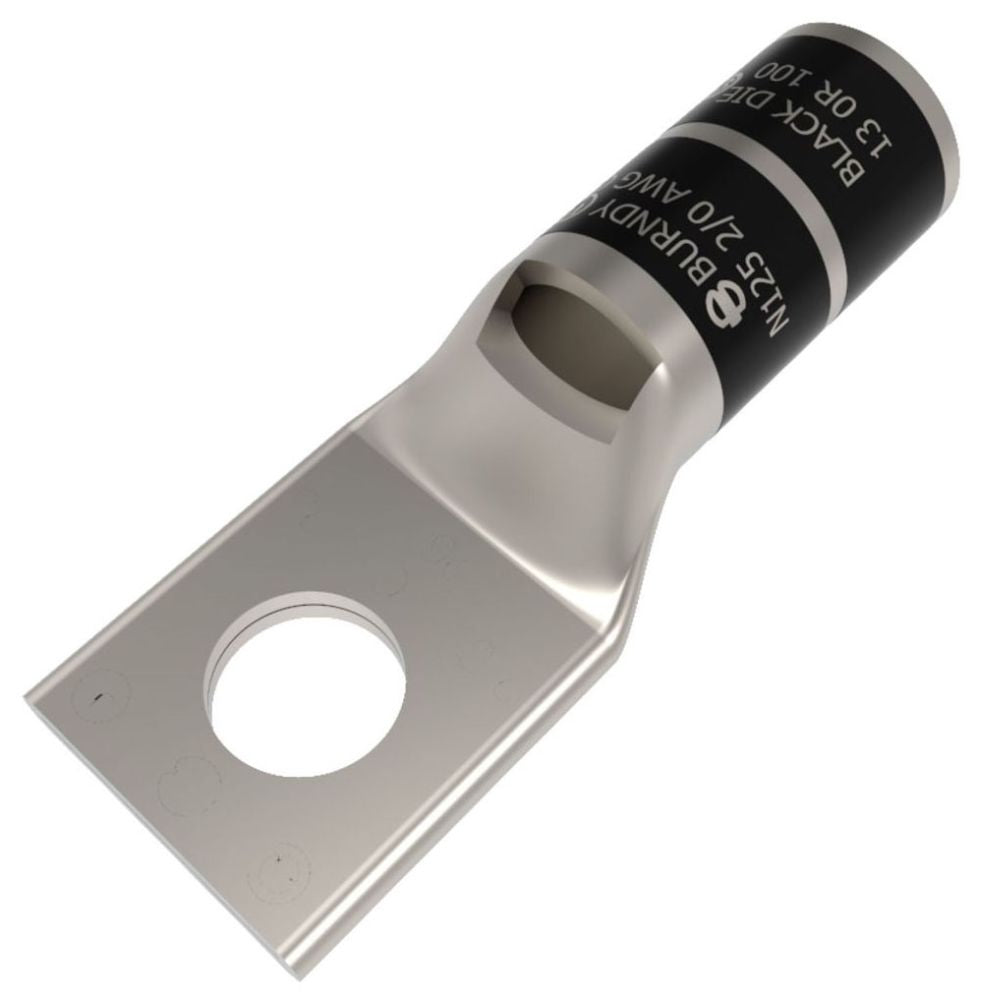

YA26L - Burndy - Compression Lug 2/0 AWG 1-Hole Standard Barrel Copper
Roll over image to zoom in Click on image to zoom
YA26L - Burndy - Compression Lug 2/0 AWG 1-Hole Standard Barrel Copper

YA26L - Burndy - Compression Lug 2/0 AWG 1-Hole Standard Barrel Copper

BURNDYSKU: BURYA26L
Price:
$5.45
Stock:
Sold out

We source most out-of-stock items - request a fast quote.

Description

Product Details - Specifications

SPECIFICATIONS

Voltage Rating 600 V to 35 KV
Conductor Material Copper
Conductor Size 2/0 AWG Stranded (Code/Compact)
Barrel Type Short, Skived, Standard, Straight
Barrel Length 0.94 Inch
Pad Size 0.83 Inch W x 0.12 Inch Thk
Number of Pad Holes 1
Stud Size 1/4 Inch
Color Black
Die Index 13
Material Electro-Tin Plated Copper
Overall Length 1.94 Inch
Approval UL 467, CSA
Brand Name HYTOOL™
Additional Information RoHS Compatible; Includes Inspection Window; Wire Strip Length 1 Inch; Cable Entry Type Chamfered
