Description

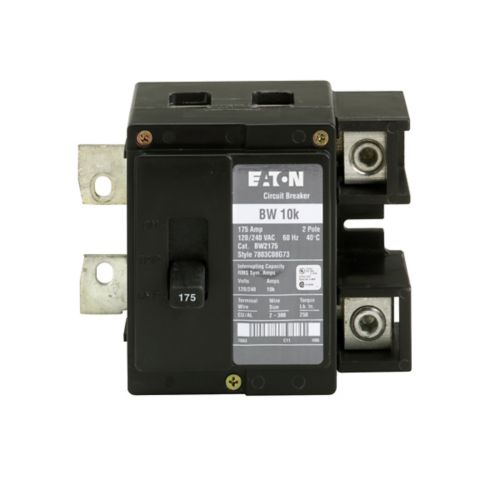

BW2175 - Eaton - 175 A Two-Pole 120/240 V Type Bw Circuit Breaker Plug-On Circuit Breakers
Eaton Type BW Circuit Breaker, Plug-on circuit breaker, 175 A, 10 kAIC, Two-pole, 120/240 V, BR, Plug-on, #2 AWG-300 kcmil Cu/Al, BW, Type ECB unit enclosures
GENERAL SPECIFICATIONS
| Product Name |
Eaton BW main breaker
|
| Catalog Number |
BW2175
|
| UPC |
786676460507
|
| Product Length/Depth |
3.1 in
|
| Product Height |
3.1 in
|
| Product Width |
2 in
|
| Product Weight |
1 lb
|
| Certifications |
UL 489
|
| Catalog Notes |
Series combination rating with Types BD, BR, BQ, BQC, and GFCB is 22,000 AIC with BRH main and 25,000 AIC with BWH main. Meets Federal Spec Classification W-C375
|
| Product Type |
Main breaker
|
PRODUCT SPECIFICATIONS
| Used with |
Type ECB Unit Enclosures
|
| Amperage Rating |
175 A
|
| Voltage rating |
120/240 V
|
| Circuit breaker frame type |
BW
|
| Interrupt rating |
10 kAIC
|
| Main circuit breaker |
BR
|
| Connection |
Plug-on
|
| Wire size |
#2 AWG-300 kcmil Cu/Al
|
| Number of poles |
Two-pole
|
| Type |
Plug-on circuit breaker
|
