Description

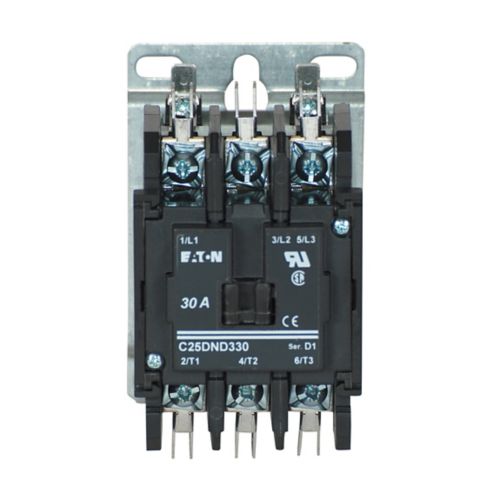

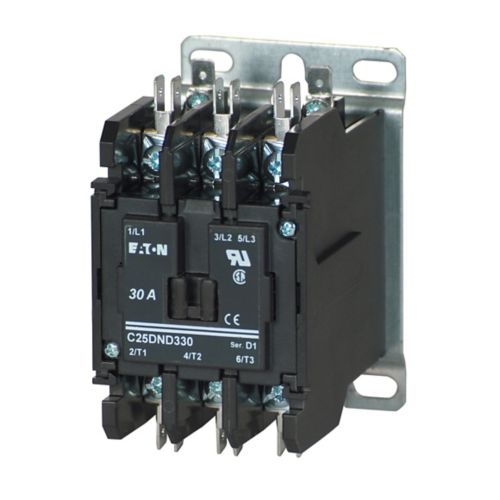

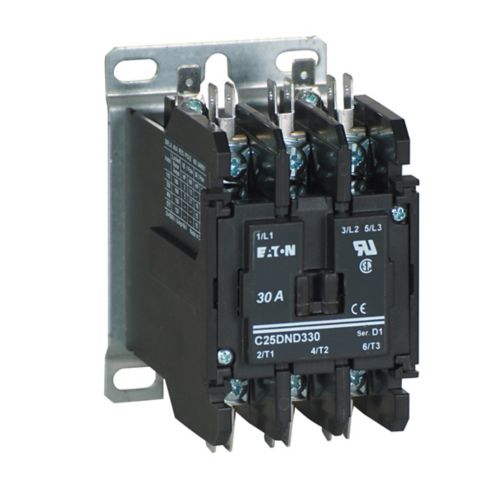

C25DND330A - Eaton - Two- And Three-Pole 30A 110-120 Vac Definite Purpose Contactor
Eaton definite purpose contactor, Quick, 30A,110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 30A, Contactor, Three-pole, 40A, Screw/pressure plate and quick connect terminals (side-by-side), Non-reversing
GENERAL SPECIFICATIONS
| Product Name | Eaton definite purpose contactor |
| Catalog Number | C25DND330A |
| UPC | 782116300587 |
| Product Length/Depth | 3.35 in |
| Product Height | 2.5 in |
| Product Width | 2.4 in |
| Product Weight | 1 lb |
| Compliances | RoHS Compliant |
| Certifications | CSA Certified UL Recognized |
| Product Type | Definite purpose contactor |
PRODUCT SPECIFICATIONS
| Amperage Rating | 30A |
| Number of poles | Three-pole |
| Type | Non-reversing |
| Coil | 110-120 Vac, 50/60 Hz |
| Enclosure | Open with metal mounting plate |
| Frame size | 15-50 A, two-pole and three-pole |
| Inductive full load | 30 A |
| Model | Contactor |
| Resistive load | 40 A |
| Terminals | Screw/pressure plate and quick connect terminals (side-by-side) |
| Connection | Quick |
PRODUCT DATASHEET
