Description

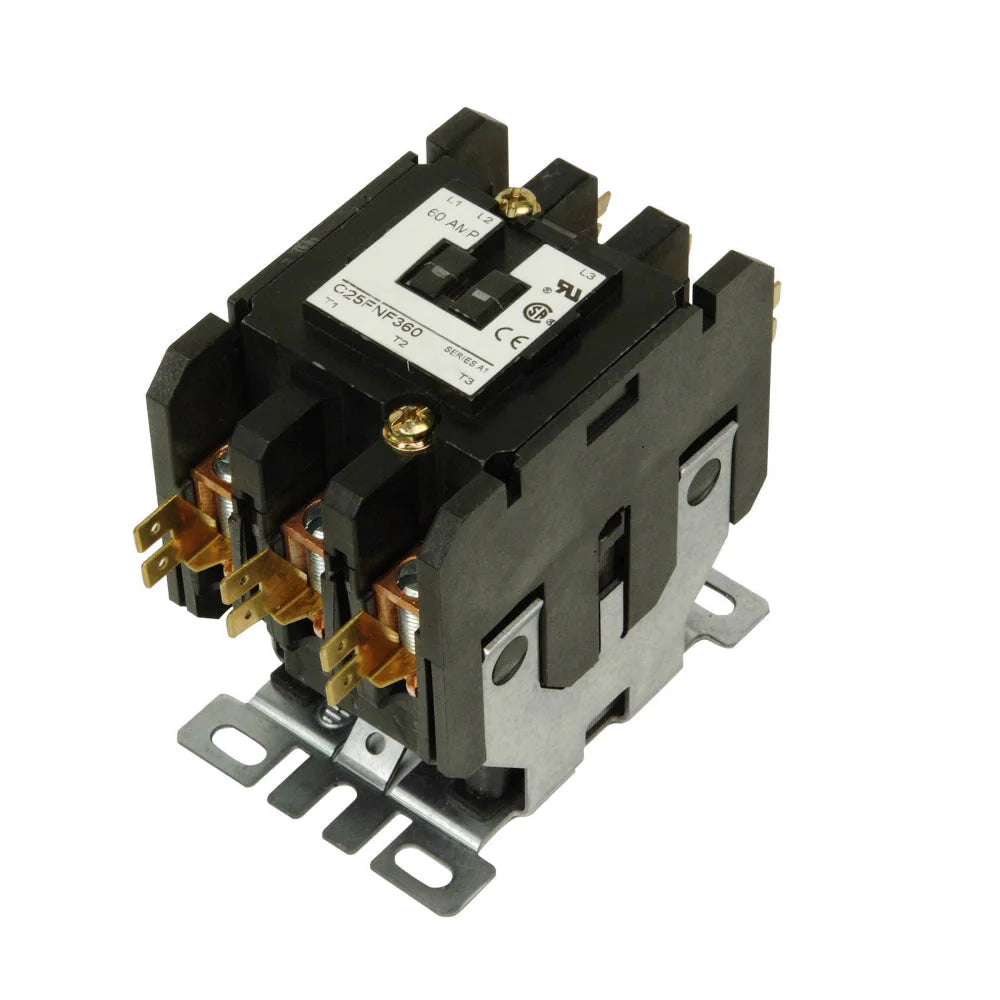

C25FNF360A - Eaton Cutler-Hammer - 60 Amp 3 Pole 600 Volt Magnetic Contactor
Eaton definite purpose contactor, Quick, 60A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 60A, Contactor, Three-pole, 75A, Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton definite purpose contactor |
|
CATALOG NUMBER |
C25FNF360A |
|
UPC |
782113476131 |
|
PRODUCT LENGTH/DEPTH |
3.97 in |
|
PRODUCT HEIGHT |
3.75 in |
|
PRODUCT WIDTH |
2.63 in |
|
PRODUCT WEIGHT |
2.7 lb |
|
COMPLIANCES |
|
|
CERTIFICATIONS |
CSA Certified UL Recognized |
|
CATALOG NOTES |
Resistive Load rating per pole
|
| Product Type |
Definite purpose contactor
|
PRODUCT SPECIFICATIONS
|
FRAME SIZE |
15-50 A, two-pole and three-pole |
|
TYPE |
Non-reversing |
|
INDUCTIVE FULL LOAD |
60 A |
|
MODEL |
Contactor |
|
CONNECTION |
Quick |
|
ENCLOSURE |
Open with a metal mounting plate |
|
TERMINALS |
Box lugs (posidrive setscrew) and quick connect terminals (side-by-side) |
|
AMPERAGE RATING |
60A |
|
RESISTIVE LOAD |
75 A |
|
NUMBER OF POLES |
Three-pole |
|
COIL |
110-120 Vac, 50/60 Hz |
PRODUCT DATASHEET
