Description

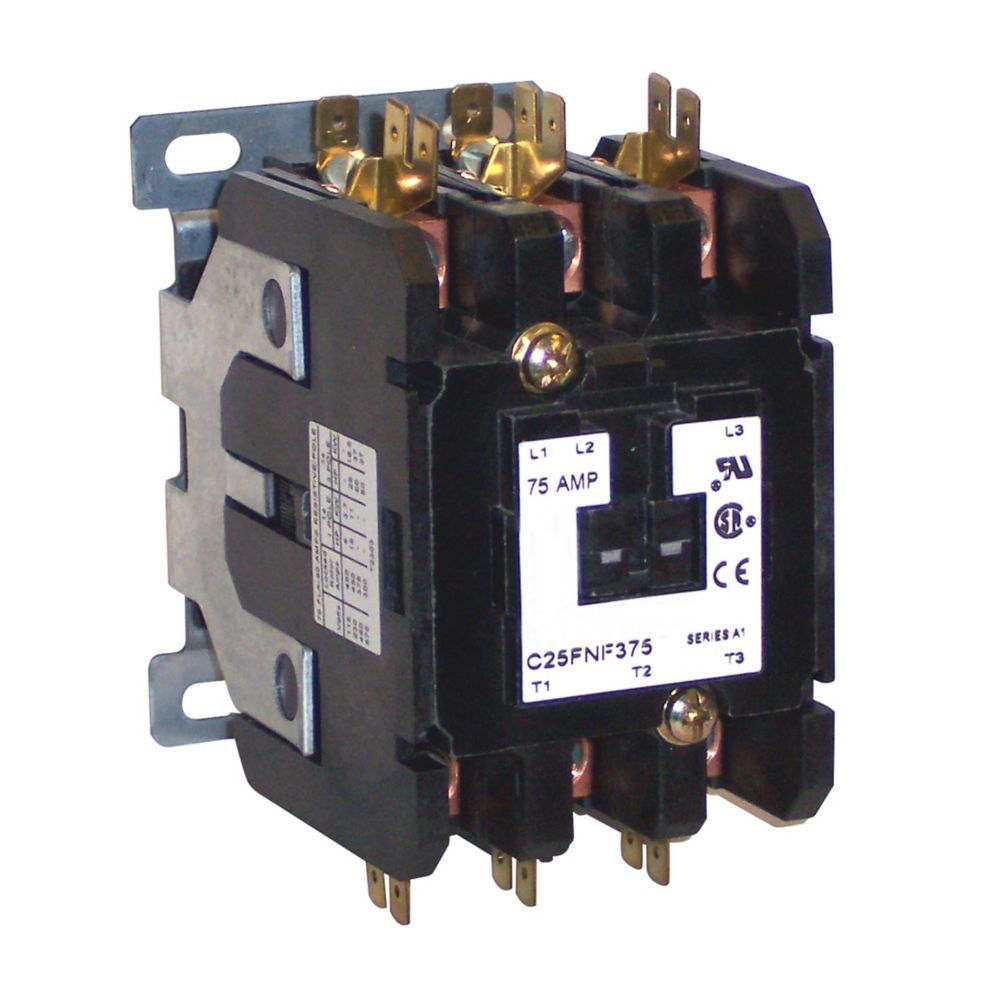

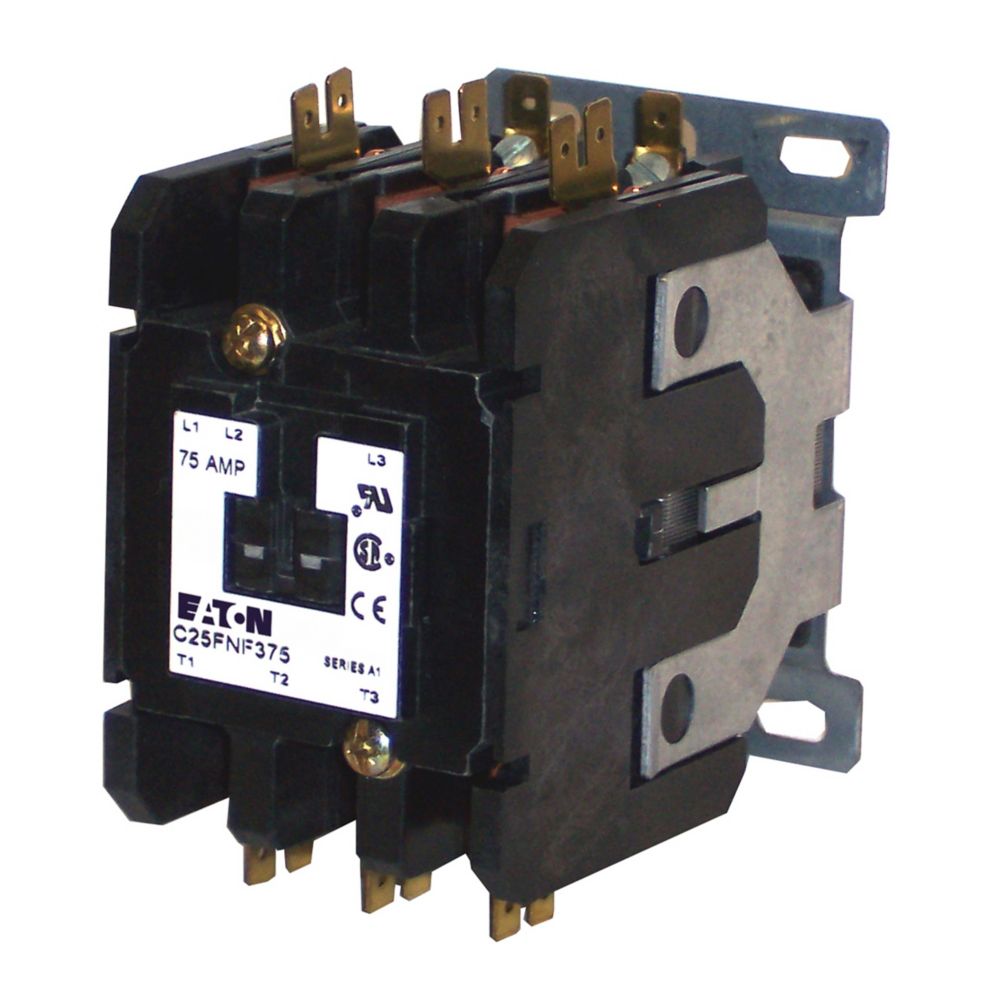

C25FNF375A - Eaton Cutler-Hammer - 75 Amp 3 Pole 600 Volt Magnetic Contactor
Eaton definite purpose contactor, 60–75A, two- and three-pole, Open with metal mounting plate, Box lugs (posidrive setscrew), and quick connect terminals (side-by-side) 110–120 Vac, 50/60 Hz
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton definite purpose contactor |
|
CATALOG NUMBER |
C25FNF375A |
|
UPC |
782114117453 |
|
PRODUCT LENGTH/DEPTH |
3.97 in |
|
PRODUCT HEIGHT |
3.75 in |
|
PRODUCT WIDTH |
2.63 in |
|
PRODUCT WEIGHT |
2.66 lb |
|
COMPLIANCES |
|
|
CERTIFICATIONS |
CSA Certified UL Recognized |
|
CATALOG NOTES |
Resistive Load rating per pole |
| Product Type |
Definite purpose contactor
|
PRODUCT SPECIFICATIONS
|
CONTACT CONFIGURATION |
1 NO, 1 NC |
|
FRAME SIZE |
15-50 A, two-pole and three-pole |
|
TYPE |
Non-reversing |
|
INDUCTIVE FULL LOAD |
75 A |
|
MODEL |
Contactor |
|
CONNECTION |
Quick |
|
ENCLOSURE |
Open with a metal mounting plate |
|
TERMINALS |
|
|
AMPERAGE RATING |
75A |
|
RESISTIVE LOAD |
90 A |
|
NUMBER OF POLES |
Three-pole |
|
COIL |
110-120 Vac, 50/60 Hz |
