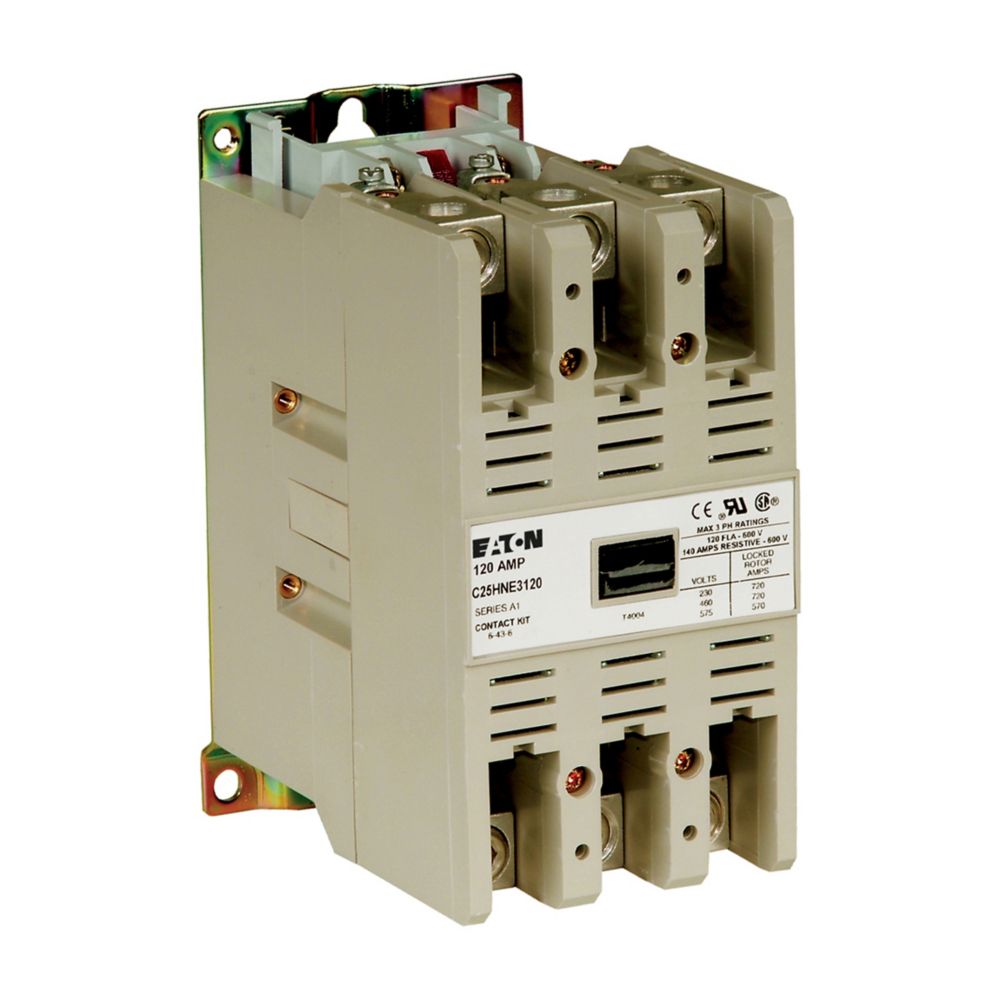

C25HNE3120A - Eaton Cutler Hammer - 120A Definite Purpose Contactor
Eaton definite purpose contactor, Non-reversing contactors and starters (C306) ,120A, two- and three-pole ,Open with metal mounting plate ,Box lugs (posidrive setscrew) , 110-120 Vac, 50/60 Hz
GENERAL SPECIFICATIONS
| Product Name | Eaton definite purpose contactor |
| Catalog Number | C25HNE3120A |
| UPC | 782114182413 |
| Product Length/Depth | 5.94 in |
| Product Height | 7.17 in |
| Product Width | 3.54 in |
| Product Weight | 8.7 lb |
| Compliances | RoHS Compliant |
| Certifications | UL Recognized CSA Certified |
| Catalog Notes | Resitive Load rating per pole |
| Product Type | Definite purpose contactor |
PRODUCT SPECIFICATIONS
| Amperage Rating | 120A |
| Number of poles | Three-pole |
| Type | Non-reversing |
| Coil | 110-120 Vac, 50/60 Hz |
| Enclosure | Open with metal mounting plate |
| Frame size | 15-50 A, two-pole and three-pole |
| Inductive full load | 120 A |
| Model | Contactor |
| Resistive load | 140 A |
| Size | 120 A, two-pole and three-pole |
| Terminals | Box lugs (posidrive setscrew) |
| Connection | Quick |
