Description

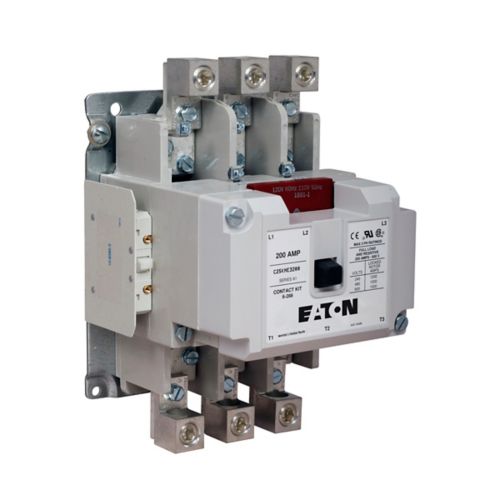

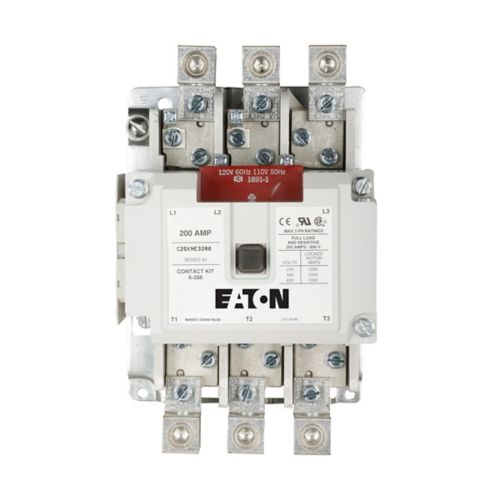

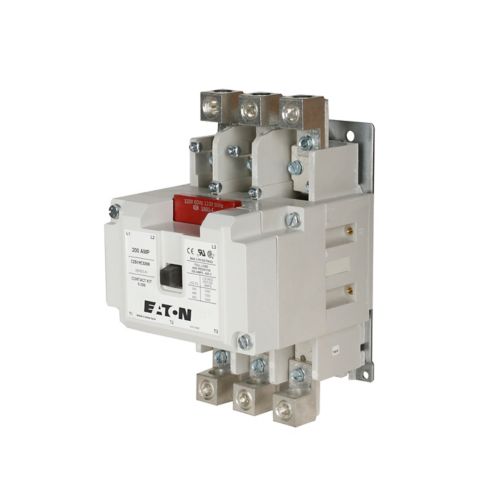

C25KNE3200A - Eaton - 200A Open With Metal Mounting Plate Definite Purpose Contactor
Eaton definite purpose contactor,200A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 200A, Contactor, Three-pole, 200 and 300A, three-pole, 200A, Box lugs (posidrive setscrew), Non-reversing
GENERAL SPECIFICATIONS
| Product Name |
Eaton definite purpose contactor
|
| Catalog Number |
C25KNE3200A
|
| UPC |
782114183939
|
| Product Length/Depth |
7.25 in
|
| Product Height |
9.11 in
|
| Product Width |
7.05 in
|
| Product Weight |
21.9 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
CSA Certified
UL Recognized |
| Catalog Notes |
Resistive Load rating per pole
|
| Product Type |
Definite purpose contactor
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
200A
|
| Number of poles |
Three-pole
|
| Type |
Non-reversing
|
| Coil |
110-120 Vac, 50/60 Hz
|
| Contact configuration |
1 NO, 1 NC
|
| Enclosure |
Open with metal mounting plate
|
| Frame size |
15-50 A, two-pole and three-pole
|
| Inductive full load |
200 A
|
| Model |
Contactor
|
| Resistive load |
200 A
|
| Size |
200 and 300A, three-pole
|
| Terminals |
Box lugs (posidrive setscrew)
|
| Connection |
Quick
|
