Description

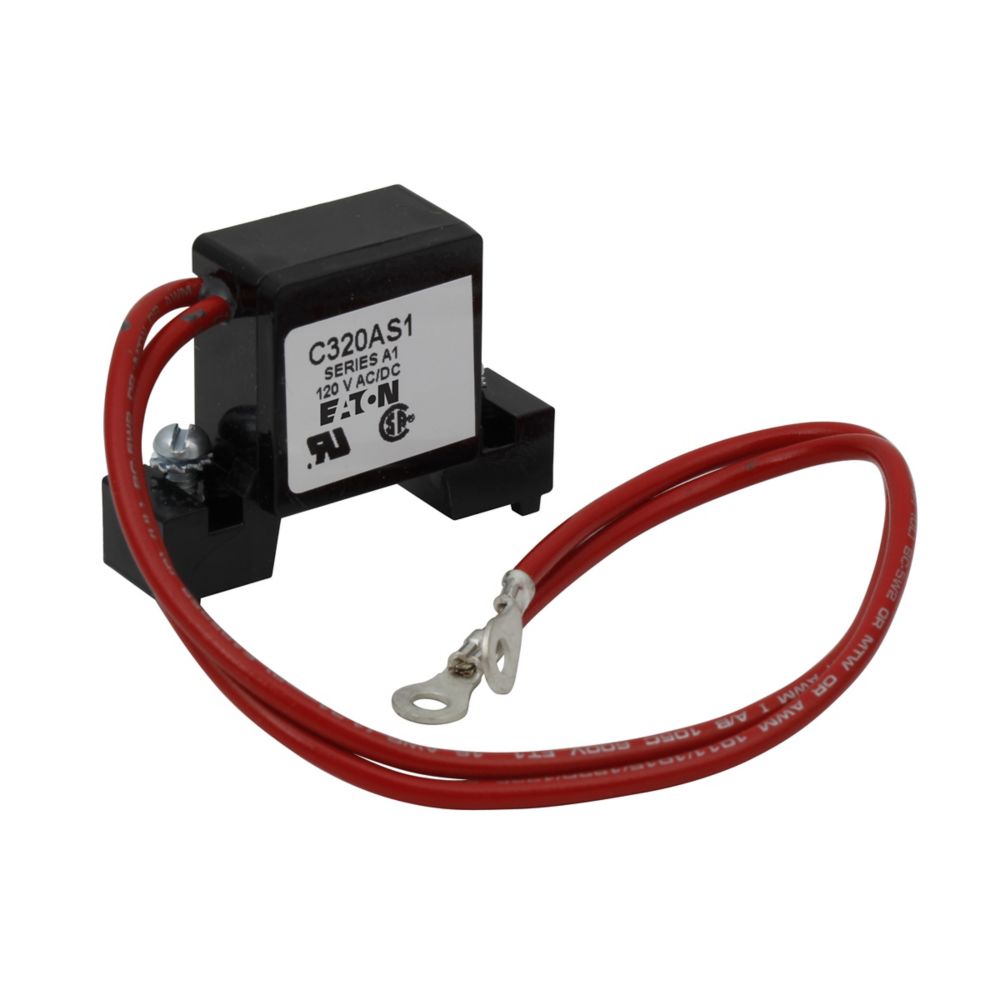

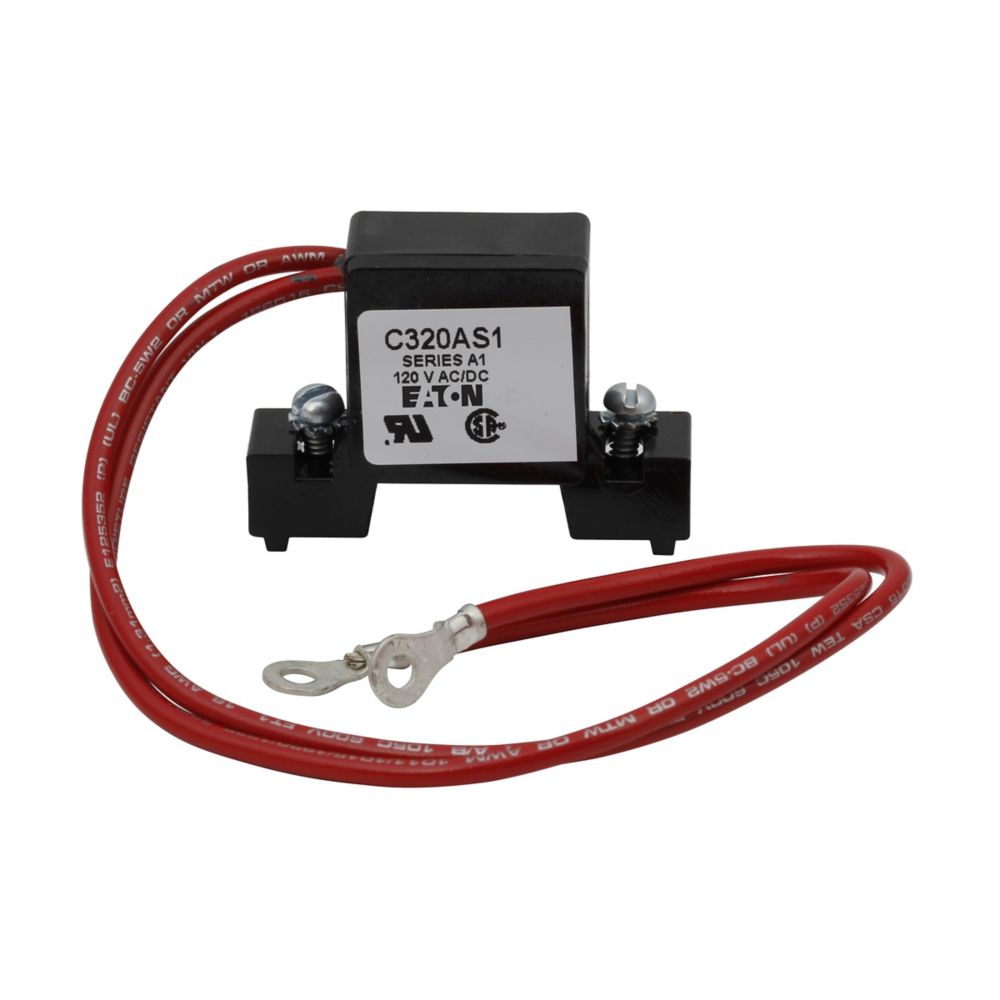

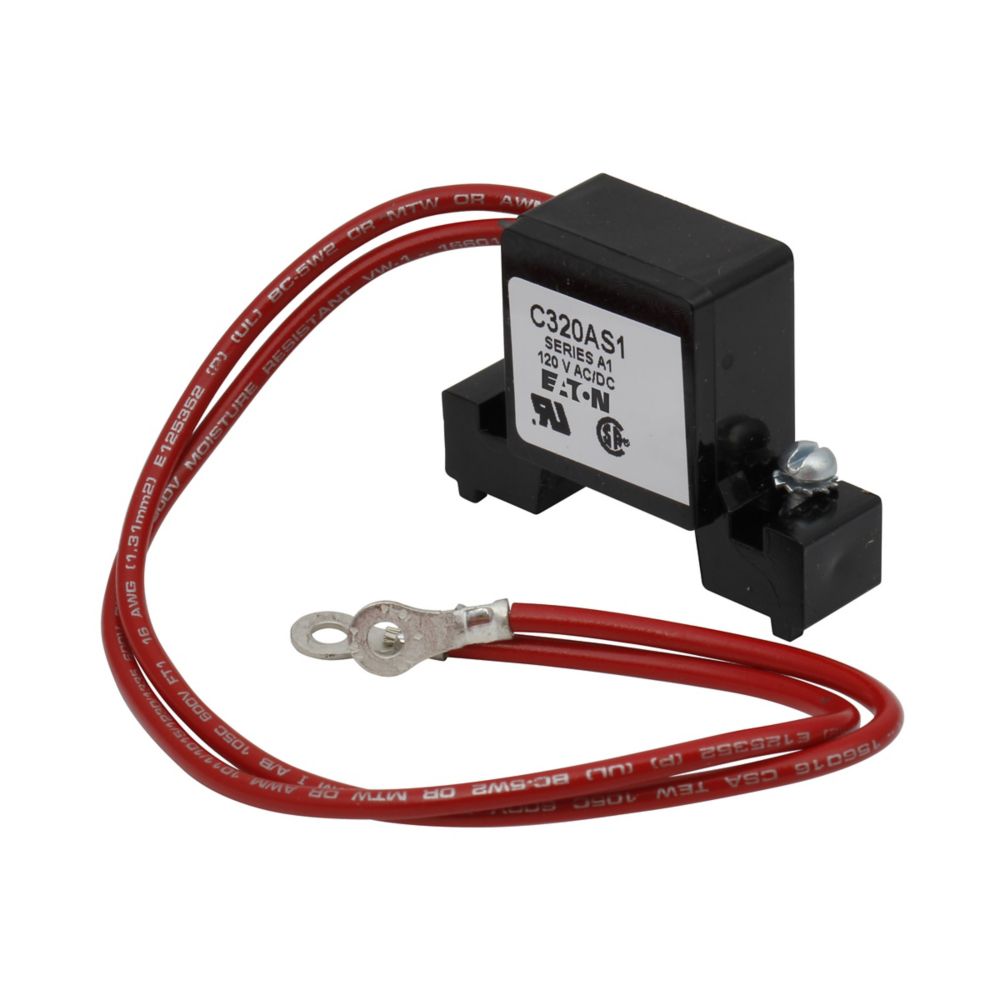

C320AS1 - Eaton Cutler Hammer - Control Product Transient Suppressor
The Eaton C320AS1 is a transient voltage suppressor designed as an accessory to protect motor control systems-specifically contactors and starters-from harmful voltage spikes. Engineered for NEMA Freedom Series devices and compatible with Size 3-5 contactor equipment, it mounts directly on side-mounted auxiliary contacts and is rated for a 120 VAC coil. The part comes UL and CSA certified, and typically carries a one-year warranty.
GENERAL SPECIFICATIONS
| Product Name | Eaton control product transient suppressor |
| Catalog Number | C320AS1 |
| UPC | 782113275338 |
| Product Length/Depth | 1.9 in |
| Product Height | 2.3 in |
| Product Width | 1.2 in |
| Product Weight | 0.05 lb |
| Certifications | UL Listed CSA Certified |
| Catalog Notes | Mounts on top of any side-mounted auxiliary contact. Connects across the coil |
| Global Catalog | C320AS1 |
| Product Type | Control product accessory |
PRODUCT SPECIFICATIONS
| Product Category | Transient Suppressor |
| Special features | Used with Starters and Contactors |
| Type | NEMA Freedom Accessories |
| Used with | Used with Starters and Contactors |
PRODUCT DATASHEET
