Description

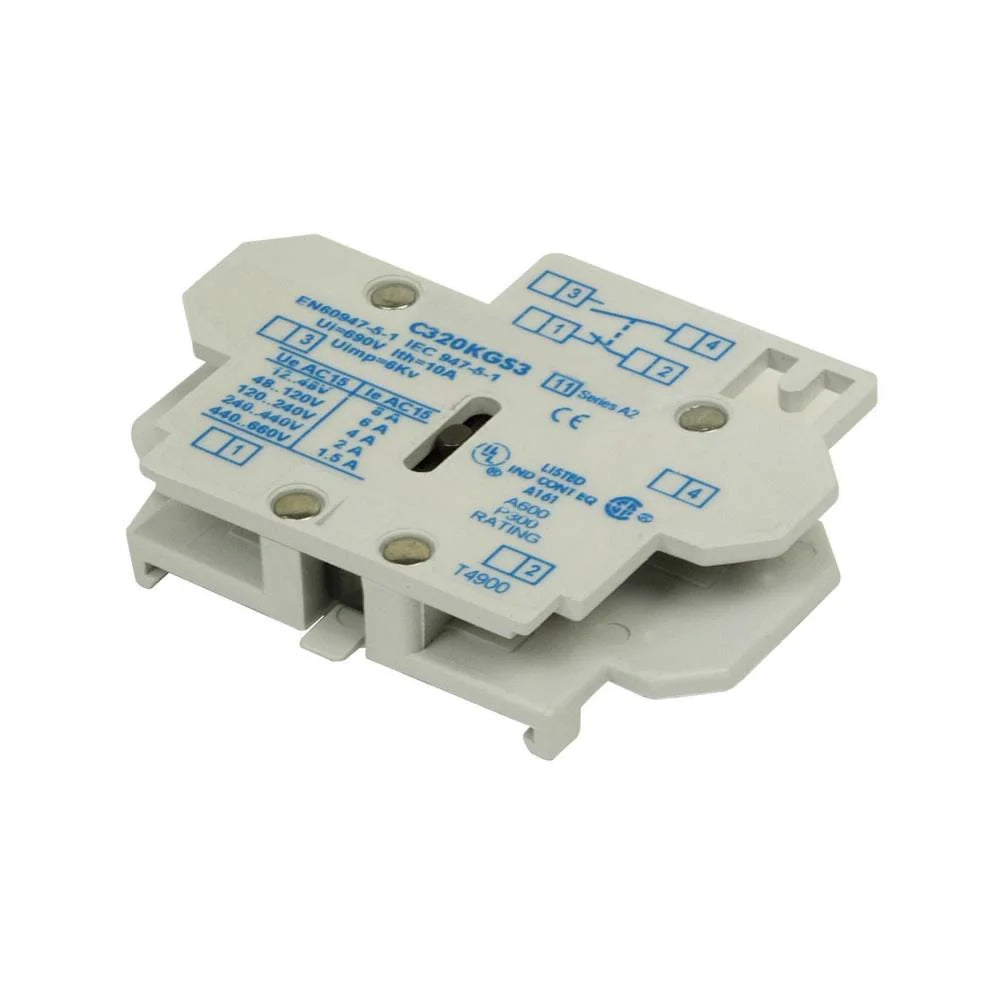

C320KGS3 - Eaton Cutler-Hammer - Freedom NEMA Auxiliary Contact
Eaton Freedom NEMA auxiliary contact, Used on Starter and Contactors, 1NO 1NC contacts, Side mounting
GENERAL SPECIFICATIONS
|
PRODUCT NAME |
Eaton Freedom NEMA auxiliary contact |
|
CATALOG NUMBER |
C320KGS3 |
|
UPC |
782113413501 |
|
PRODUCT LENGTH/DEPTH |
4 in |
|
PRODUCT HEIGHT |
1.1 in |
|
PRODUCT WIDTH |
2.5 in |
|
PRODUCT WEIGHT |
0.13 lb |
|
CERTIFICATIONS |
cUL Listed |
|
CATALOG NOTES |
NCI = Normally Closed early opening designed for use in reversing applications. EC = Early Closing. LO = Late Opening. |
| Product Type |
Accessory
|
PRODUCT SPECIFICATION
| Used with |
Used on Starters and Contactors
|
| Mounting method |
Side
|
| Contact configuration |
1 NO, 1 NC
|
| Series |
Freedom
|
PRODUCT DATASHEET
