Description
GENERAL

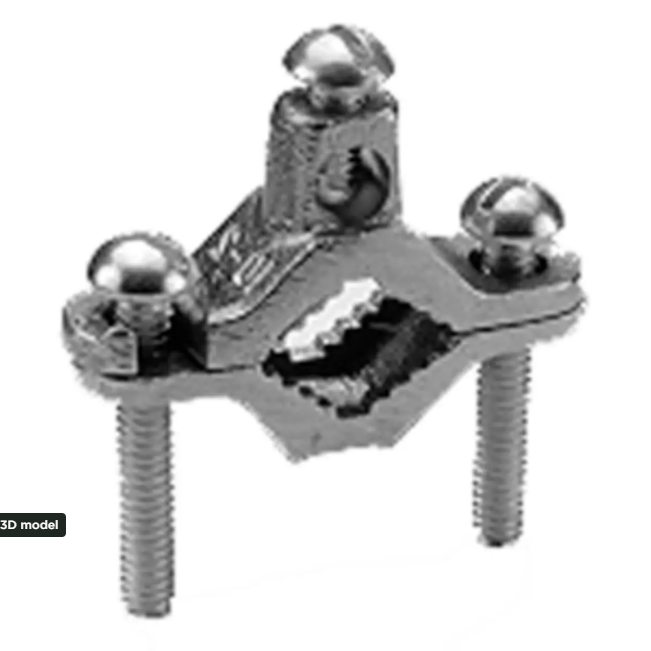

| Application | For Bare Wire, Connecting Grounding Conductor To Water Pipe Or Copper Tube |
| Catalog Number | C4 |
| Material | Bronze Alloy |
| Material - Hardware | DURIUM™ Silicon Bronze |
| Plated | No |
| Plating Type | Unplated |
| Product Family | Grounding and Bonding Connectors>Copper Mechanical Grounding Connectors>Cable(s) to Ground Rod/Pipe/Tube (GAR/GD/GK)>LC Water Pipe Ground Clamps |
| Product Type | Mechanical |
| Sub Brand | CLAMP |
| Trade Name | N |
| Type | Ground Clamp |
| UPC | 781810142325 |
| UPC 14 Digit GTIN | 00781810142325 |
DIMENSIONS
| Dimension - Height inch | 4.13 in |
| Dimension - Height mm | 104.9 mm |
| Dimension - Hole Size inch | 0.31 in |
| Dimension - Hole Size mm | 8 mm |
| Dimension - L Length Overall mm | 159 mm |
| Dimension - Length Overall inch | 6.25 in |
| Dimension - Pad Width inch | 1.88 in |
| Dimension - Thread Size | - |
| Dimension - Width inch | 0.96 in |
| Dimension - Width mm | 24 mm |
| Dimensions | 6.31 in x 1 in x 4.53 in |
| Height | 4.53 in |
| Length | 6.31 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
| Width | 1 in |
CONDUCTOR RELATED
| Conductor - Armored Cable Size | N |
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Solid Size Range | 10 AWG-2 AWG |
| Conductor - Copper Str Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Size Range | 10 AWG - 2 AWG |
| Conductor - Pipe EMT Size | 2 1/2 in;3 in;3 1/2 in;4 in |
| Conductor - Pipe EMT Size Range | 2 1/2 in-4 in |
| Conductor - Rebar Size Range | N/A |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | Contact Manufacturer |
| Certification - CSA Approved | Yes |
| Certification - cULus | N |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | N |
| Certification - UL Recognized | N |
| Industry Standard(s) | UL467 |
| Standards - Industry Standards Met | UL467 |
| Standards - RoHS Compliance Status | NC |
| UL Listed | Yes |
LOGISTICS
| Carton Quantity | 12 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 1728 |
