Description

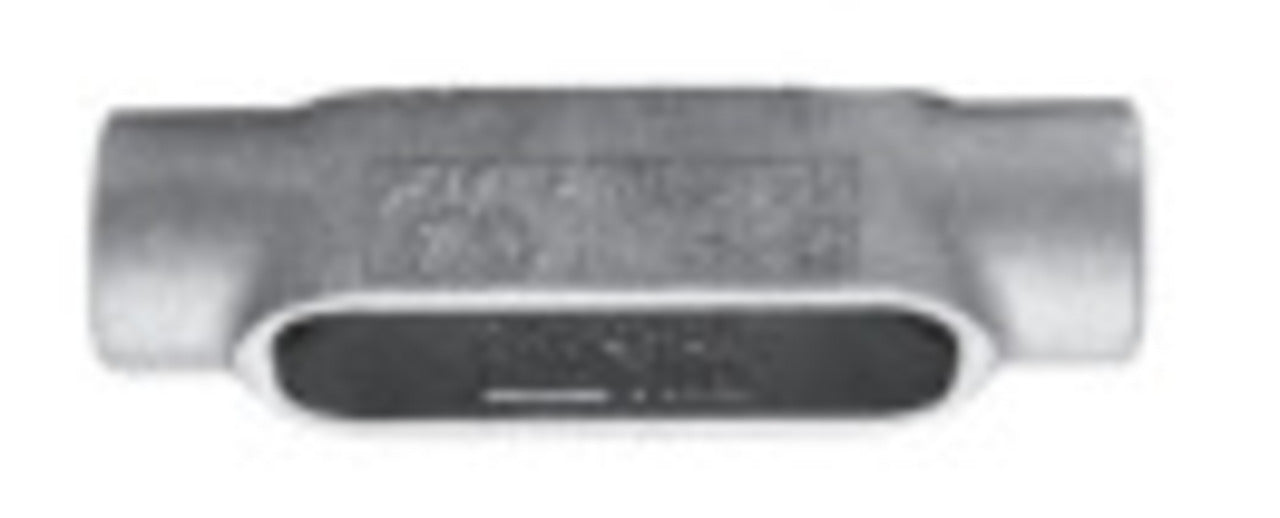

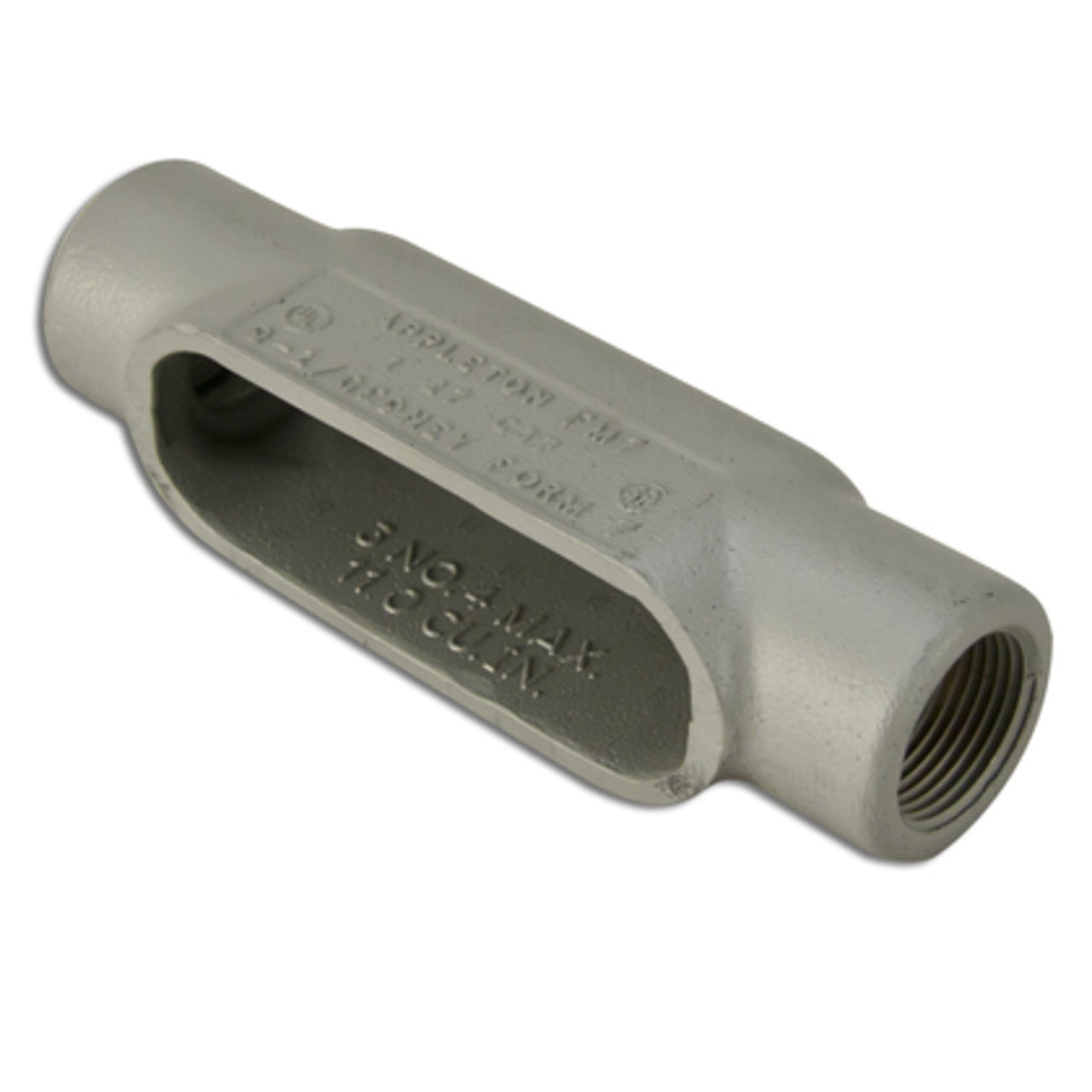

C67SA - Appleton - 2" Form 7 Aluminum Conduit Body
A 2" hub, Type C conduit body in Appleton's FM7 series, crafted from copper-free aluminum with epoxy powder-coat finish. It offers about 50 cu in internal volume and includes Wedge-Lok(TM) clip-on cover, smooth integral bushings, tapered FNPT threads, neoprene gasket, and a flat-back design for easy wire pulling. Rated for wet locations, UL/CSA listed, NEMA FB-1 compliant, and interchangeable with Crouse-Hinds Form 7 bodies
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- Standard Materials and Finishes
- Grayloy-iron bodies and covers with triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat; cast aluminum bodies and covers with epoxy powder coat; steel covers with zinc electroplate; stamped aluminum covers
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
PRODUCT DATASHEET
