Description

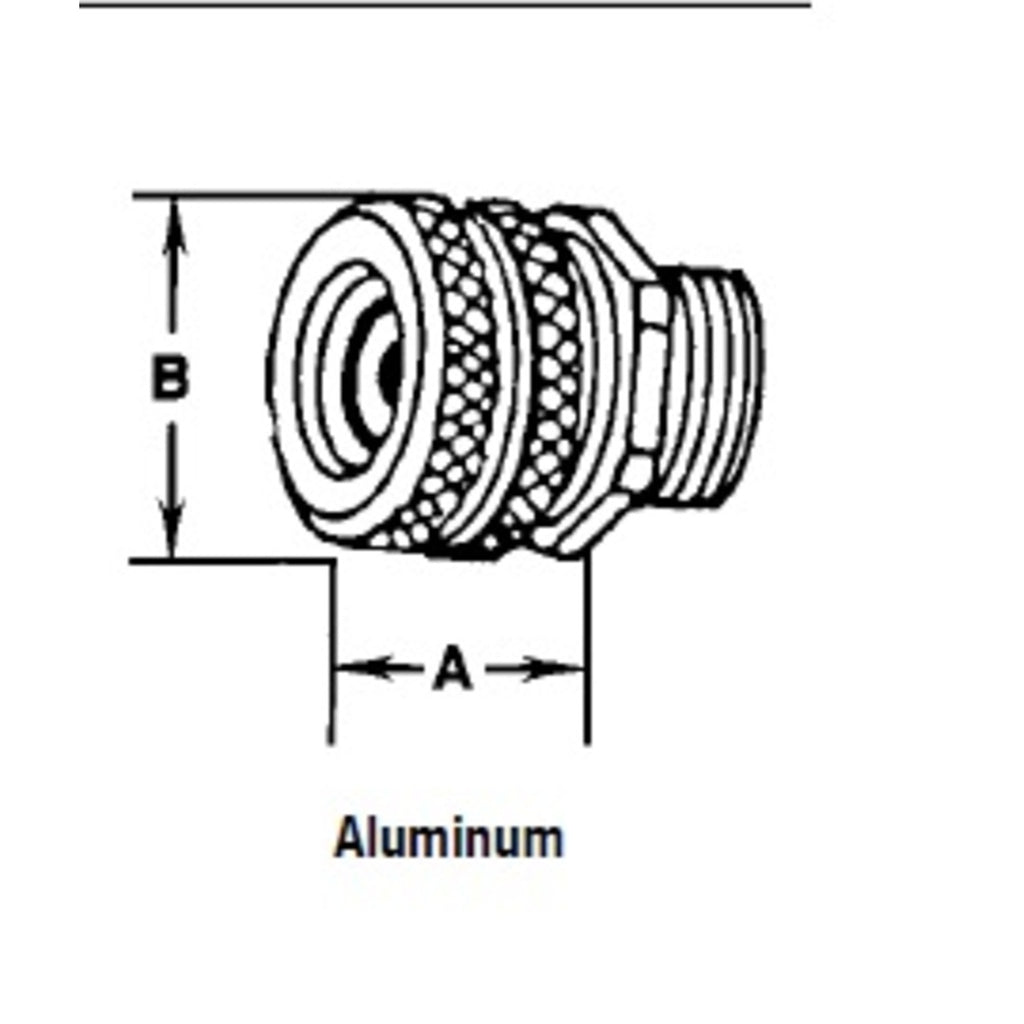

CG115150 - Appleton - 1-1/2" Aluminum Straight Liquidtight Strain Relief Connector
A 11/2" hub, 90 deg CG-series liquid-tight strain relief connector. Made in aluminum, it seals flexible cords up to 11/2" diameter, includes neoprene grommet, washer, cap; UL/CSA-listed for wet/dry environments (NEMA 3R, Class I/II/III).
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90 deg body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90 deg body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
PRODUCT DATASHEET
