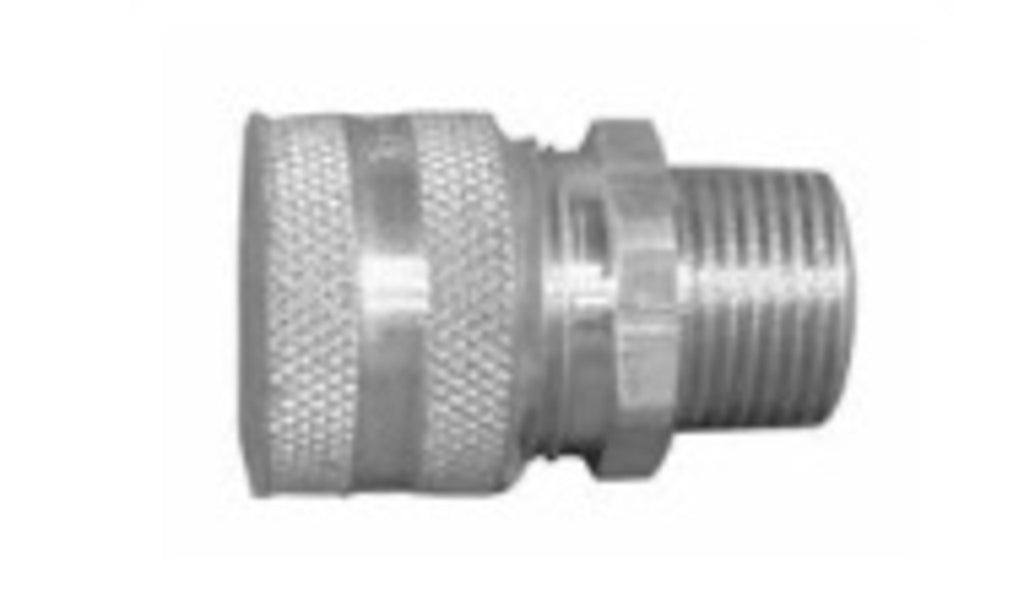

CG100100 - Appleton - 1" Aluminum Straight Liquidtight Strain Relief Connector
A straight, 1″ liquid-tight strain relief cord connector in aluminum. Features a neoprene sealing grommet for strain relief, a steel/Teflon washer to prevent distortion, and an aluminum cap-all UL/CSA-listed to seal flexible cords in wet/dry locations up to Class I/II/III, NEMA 3R environments.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90° body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90° body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
