Description

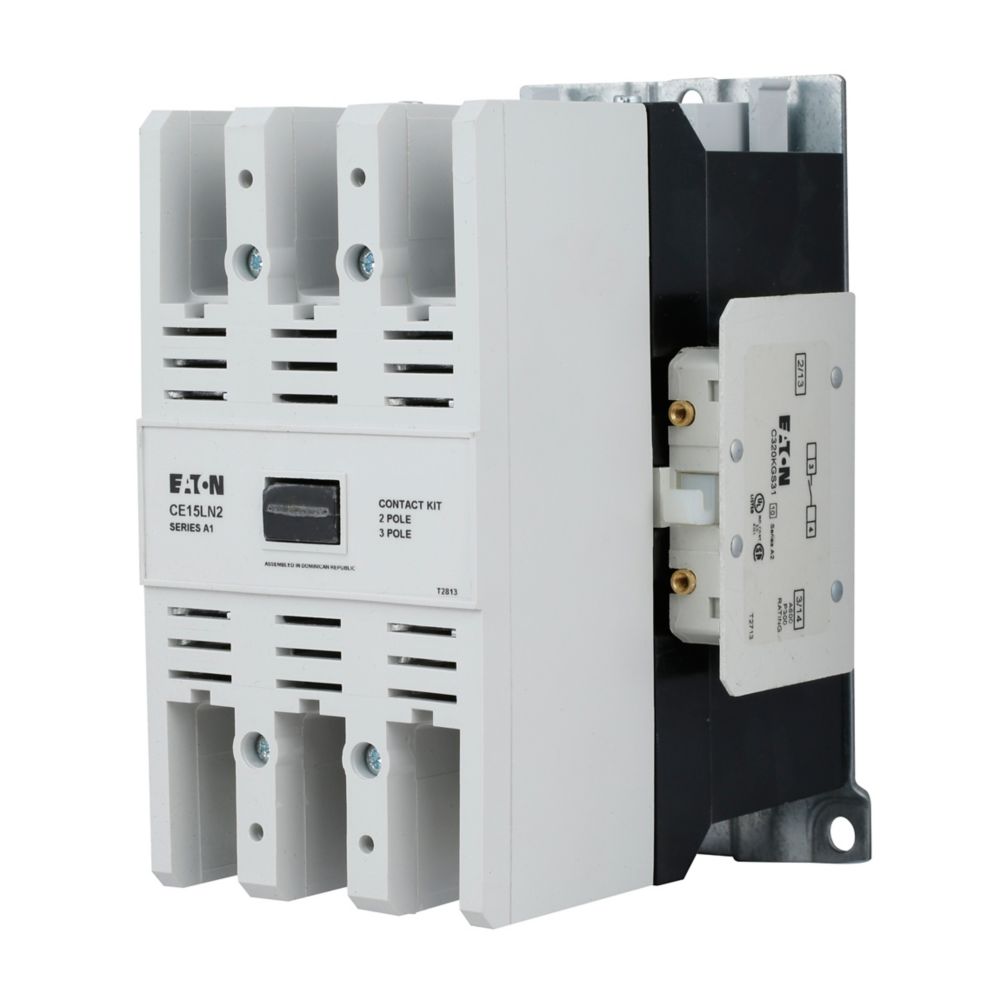

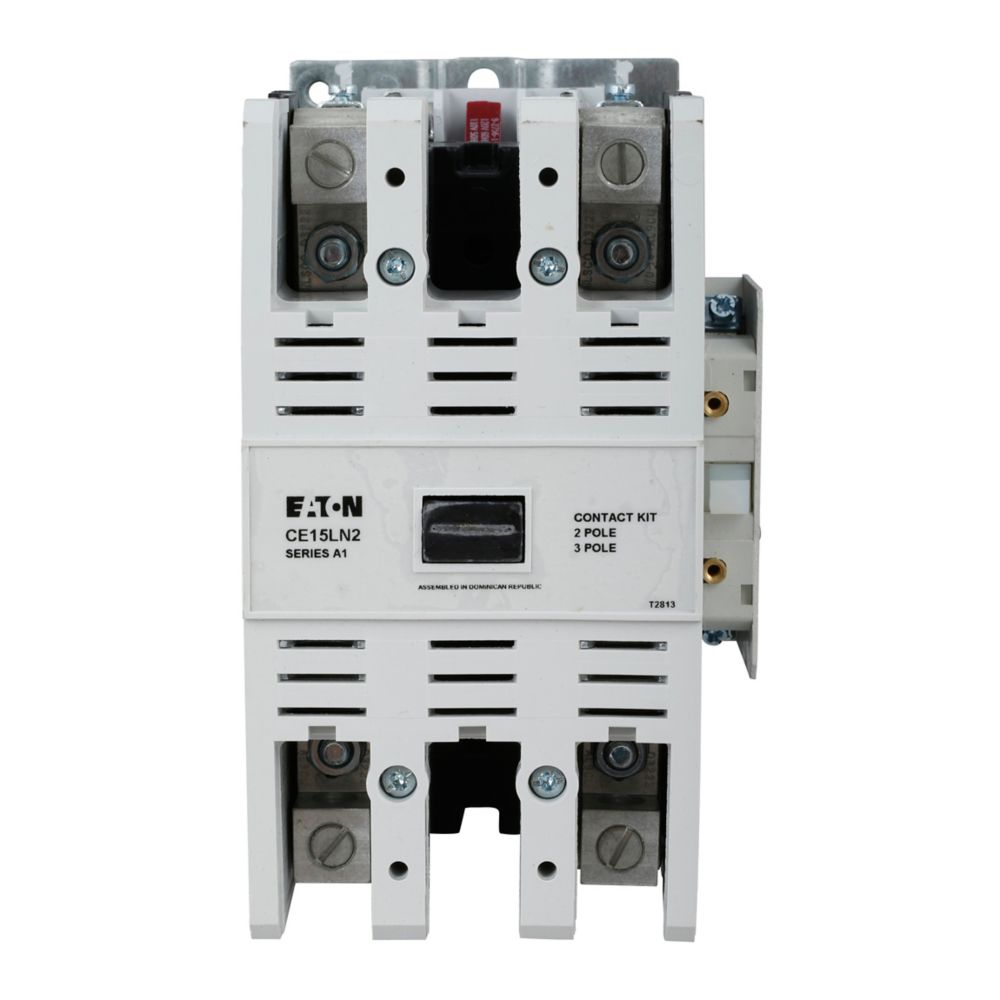

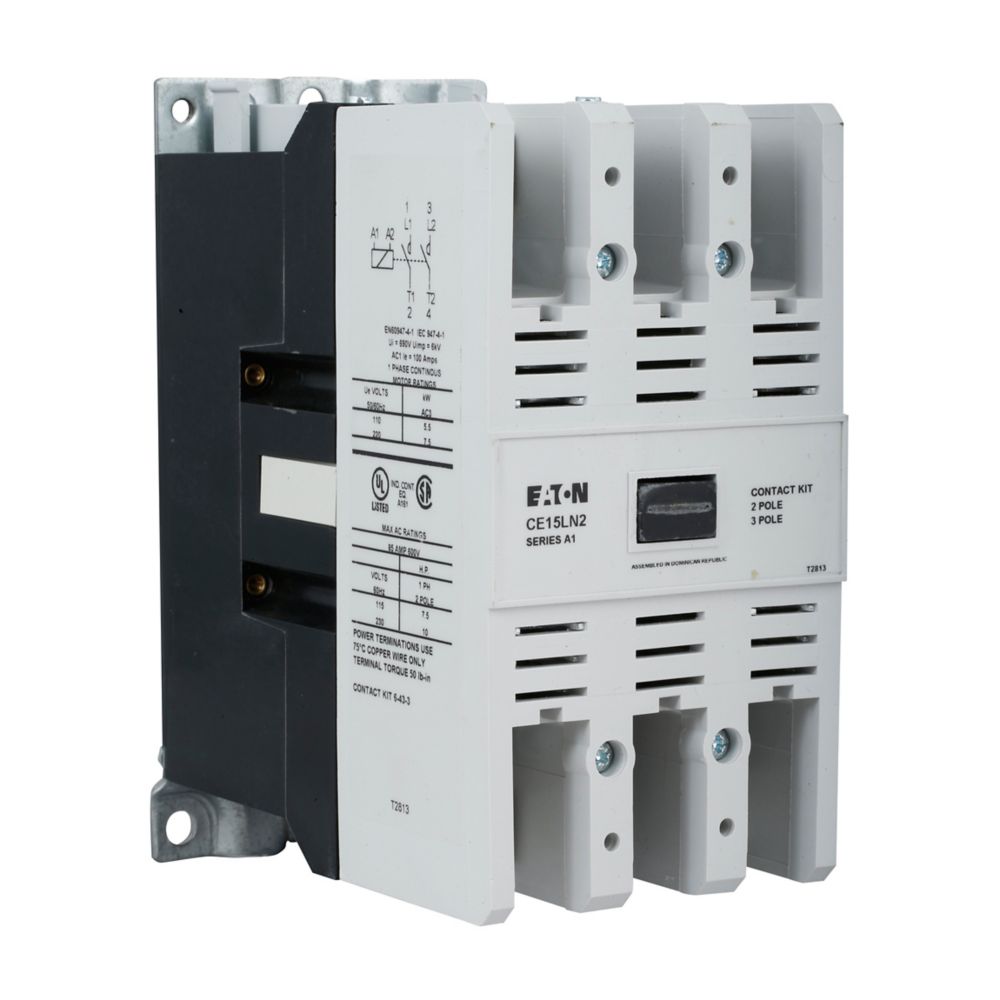

CE15MN3A - Eaton Cutler Hammer - 105A Xt Iec Contactor
Eaton XT IEC contactor, 105A, 110-120 Vac, 50-60 Hz, 105A, Frame M, 160 mm, 50-60 Hz, 10 hp, Steel mounting plate, Three-pole, Non-reversing, No overload relay, Freedom, Contactor
GENERAL SPECIFICATIONS
| Product Name | Eaton XT IEC contactor |
| Catalog Number | CE15MN3A |
| UPC | 782113604022 |
| Product Length/Depth | 5.94 in |
| Product Height | 7.17 in |
| Product Width | 4.08 in |
| Product Weight | 8.05 lb |
| Compliances | ISO 9000 DIN VDE 0600 |
| Certifications | IEC Rated UL Listed CSA Certified |
| Catalog Notes | No enclosure |
| Product Type | Contactors |
PRODUCT SPECIFICATIONS
| Accessories | No enclosure |
| Amperage Rating | 105A |
| HP rating - max | 10 hp |
| Number of poles | Three-pole |
| Type | Contactor |
| Frequency rating | 50-60 Hz |
| Frame size | 160 mm |
| Coil voltage | 110-120 Vac, 50-60 Hz |
| Continuous ampere rating | 105 A |
| Relay | No overload relay |
| Series | Freedom |
| Operation | Non-reversing |
| Mounting method | Steel mounting plate |
