Description

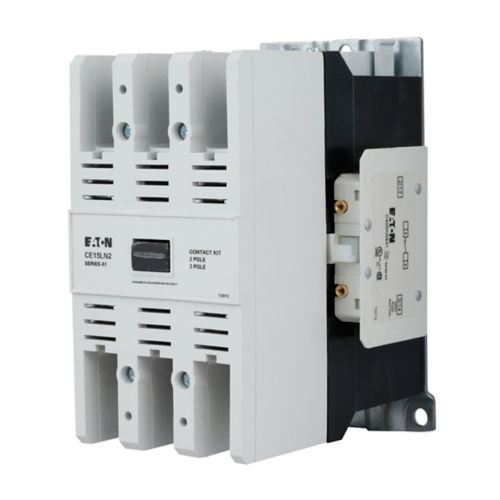

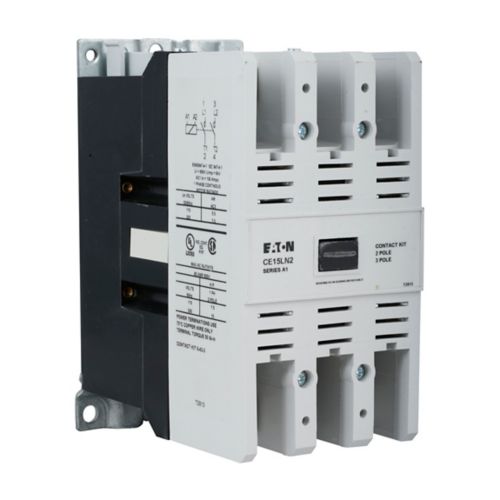

CE15NN3A - Eaton - 140A 110-120 Vac Three-Pole Xt Iec Contactor Non-Reversing Contactor
Eaton XT IEC contactor, 140A, 110-120 Vac, 50-60 Hz, 140A, Frame N, 250 mm, 50-60 Hz, 10 hp, Steel mounting plate, Three-pole, Non-reversing, No overload relay, Freedom, Contactor
GENERAL SPECIFICATIONS
| Product Name |
Eaton XT IEC contactor
|
| Catalog Number |
CE15NN3A
|
| UPC |
782113604039
|
| Product Length/Depth |
5.94 in
|
| Product Height |
7.17 in
|
| Product Width |
4.08 in
|
| Product Weight |
8.05 lb
|
| Compliances |
DIN VDE 0600
ISO 9000 |
| Certifications |
UL Listed
IEC Rated CSA Certified |
| Catalog Notes |
No enclosure
|
| Product Type |
Contactors
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
140A
|
| HP rating - max |
10 hp
|
| Number of poles |
Three-pole
|
| Type |
Contactor
|
| Frequency rating |
50-60 Hz
|
| Frame size |
250 mm
|
| Coil voltage |
110-120 Vac, 50-60 Hz
|
| Continuous ampere rating |
140 A
|
| Relay |
No overload relay
|
| Series |
Freedom
|
| Operation |
Non-reversing
|
| Mounting method |
Steel mounting plate
|
PRODUCT DATASHEET
