Description

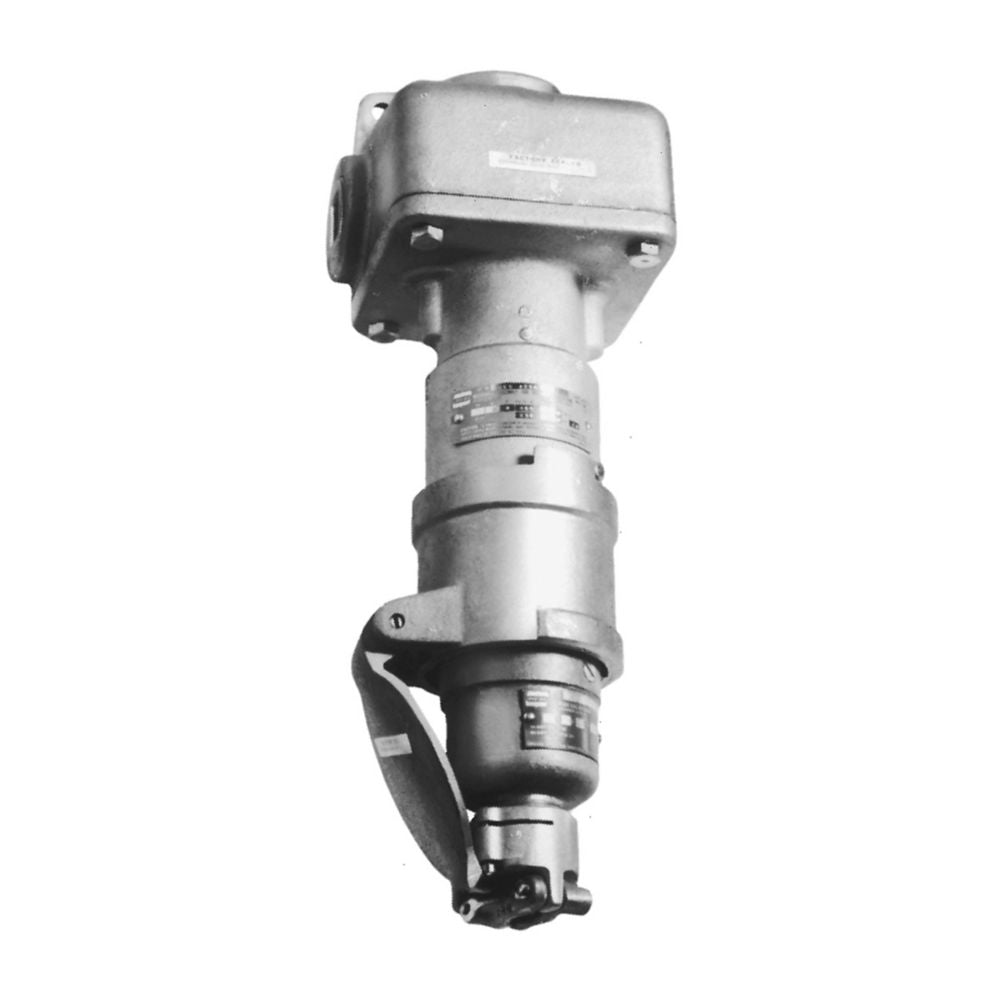

CES2214 - Eaton Crouse-Hinds Series - 3/4" Arktite CES Receptacle
Eaton Crouse-Hinds series Arktite CES receptacle, 7A/30A, Through feed, Three-wire, four-pole, Brass or copper contact, Style 2, 1 HP/3 HP, Copper-free aluminum, 3-phase, Spring door, 3/4", Delayed action circuit breaking, 120-240/480 Vac
GENERAL SPECIFICATIONS
| Product Name |
Eaton Crouse-Hinds series Arktite CES receptacle
|
| Catalog Number |
CES2214
|
| UPC |
782274127606
|
| Product Length/Depth |
4.13 in
|
| Product Height |
7.44 in
|
| Product Width |
4.63 in
|
| Product Weight |
5.05 lb
|
PRODUCT SPECIFICATIONS
| Trade size |
3/4"
|
| Grounding style |
Style 2
|
| Configuration |
Three-wire, four-pole
|
| Phase |
Three-phase
|
| Horsepower |
1 hp/3 hp
|
| Amperage Rating |
7A/30A
|
| Voltage rating |
120-240 Vac/480 Vac
|
| Receptacle style |
Spring door
|
| Back box style |
Through feed
|
| Material |
Copper-free aluminum
|
| Contact material |
Brass
Hand-drawn copper |
| Type |
Delayed action circuit breaking
|
PRODUCT DATASHEET
