Description

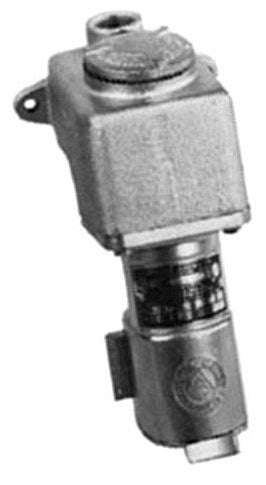

CESD3034 - Appleton - 30A 125-250VAC 4-Pole 3-Phase Feed-Through Pin and Sleeve Receptacle
VERTICAL FEED-THROUGH TYPE; 3/4 INCH HUB SIZE; 3 WIRE(S); UL 894/1010/1682/1686, CSA C22.2 APPROVAL; 125/250 VOLT AC 3-PHASE VOLTAGE RATING; CLASS I DIV 1 AND 2 GROUP C D ENCLOSURE; 30 AMP CURRENT RATING; SPRING COVER TYPE; 3 HP POWER RATING; 4 POLE(S); CPH MATING PLUG; SLIDE-LOK[R] BRAND; OVERALL DIMENSION 6.75 INCH WIDTH X 8.69 INCH HEIGHT; MATERIAL ZINC ELECTROPLATE/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON (MOUNTING BOX), CERAMIC BURNISHED COPPER-FREE ALUMINUM (RECEPTACLE); APPLICATION LIGHTING SYSTEM, CONVEYOR, HEATER, MOTOR GENERATOR SET, AIR CONDITIONER, COMPRESSOR, PUMP; APPLICABLE STANDARD NEC/CEC; CESD MODEL
GENERAL SPECIFICATIONS
| Type | Vertical Feed-Through |
| Voltage Rating | 125/250 Volt AC 3-Phase |
| Current Rating | 30 Amp |
| Power Rating | 3 Hp |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Hub Size | 3/4 Inch |
| Cover Type | Spring |
| Mating Plug | CPH |
| Enclosure | Class I Div 1 and 2 Group C D |
| Approval | UL 894/1010/1682/1686, CSA C22.2 |
| Brand Name | Slide-Lok® |
| Model | CESD |
| Additional Information | Overall Dimension 6.75 Inch Width x 8.69 Inch Height; Material Zinc Electroplate/Chromate/Epoxy Powder Coated Malleable Iron (Mounting Box), Ceramic Burnished Copper-Free Aluminum (Receptacle); Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump; Applicable Standard NEC/CEC |
