Description

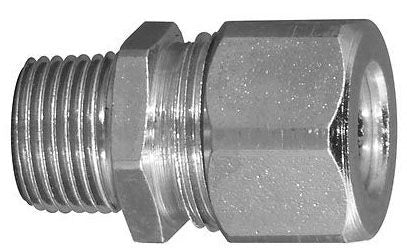

CG115150S - Appleton - 1-1/2 Inch Steel Liquidtight Strain Relief Cord Connector
STRAIGHT MALE TYPE; MACHINED STEEL (BODY/CAP), NEOPRENE (SEALING GROMMET), STEEL/NON-STICK (WASHER) MATERIAL; 2.19 INCH DIAMETER SIZE; UL 514B, CSA C22.2 APPROVAL; DRY/WET LOCATION, COMMERCIAL AND INDUSTRIAL APPLICATION; 1-1/2 INCH THREAD SIZE; 1.156 TO 1.312 INCH CORD SIZE; ENCLOSURE RATING CLASS I DIV 2, CLASS II DIV 1 AND 2, CLASS III, NEMA 3R; APPLICABLE STANDARD NEC/CEC; CG MODEL
GENERAL SPECIFICATIONS
| Type | Straight Male |
| Thread Size | 1-1/2 Inch |
| Material | Machined Steel (Body/Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) |
| Cord Size | 1.156 to 1.312 Inch |
| Size | 2.19 Inch Diameter |
| Approval | UL 514B, CSA C22.2 |
| Application | Dry/Wet Location, Commercial and Industrial |
| Model | CG |
| Additional Information | Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard NEC/CEC |
