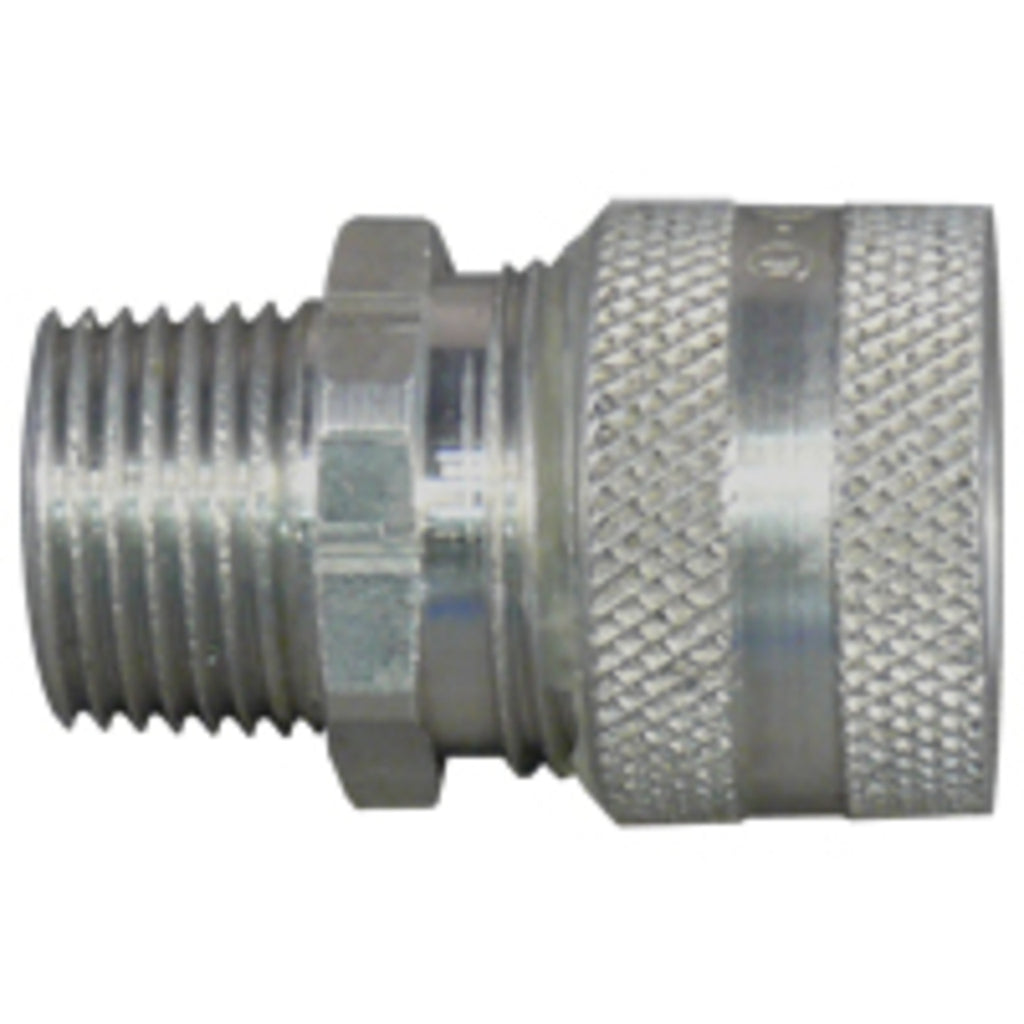

CG153200 - Appleton - 2" Straight Aluminum Liquidtight Strain Relief Connector
A straight 2″-hub aluminum liquid-tight strain-relief connector. Built for heavy-duty cables with diameters ranging from 1.65″ to 2.00″, it includes the standard neoprene grommet, steel/Teflon washer, copper-free aluminum cap, and NEMA 3R/UL 514B wet-location rating
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90° body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90° body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
