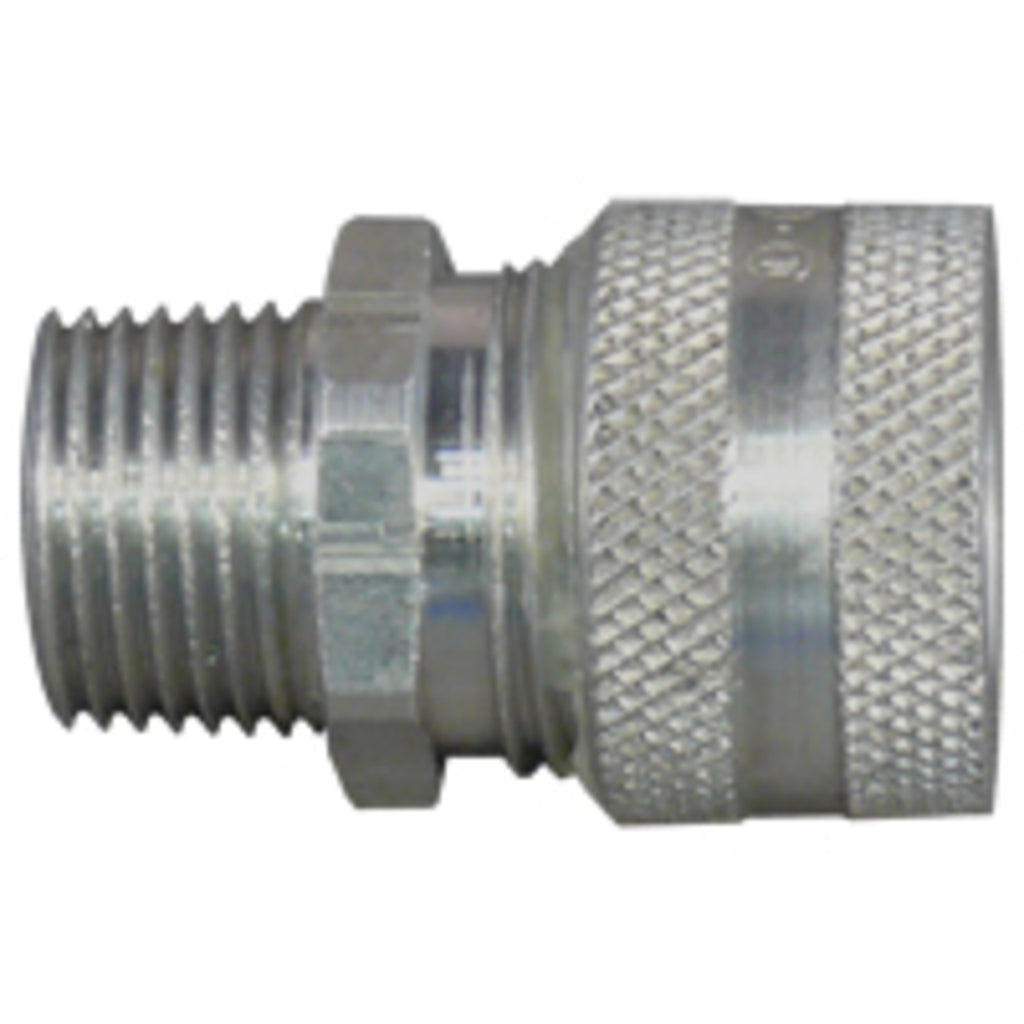

CG225250 - Appleton - 2-1/2" Aluminum Liquidtight Strain Relief Cord Connector
A 21/2" straight aluminum connector built for liquid-tight cable entry. Designed to fit cables from 2.25" to 2.50" in diameter, it features a neoprene grommet for a secure seal, a washer to prevent distortion, and a robust hex-head cap. It's rated for both wet locations and hazardous areas like Class I, II, and III Div 2 environments.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90 deg body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90 deg body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
