Description

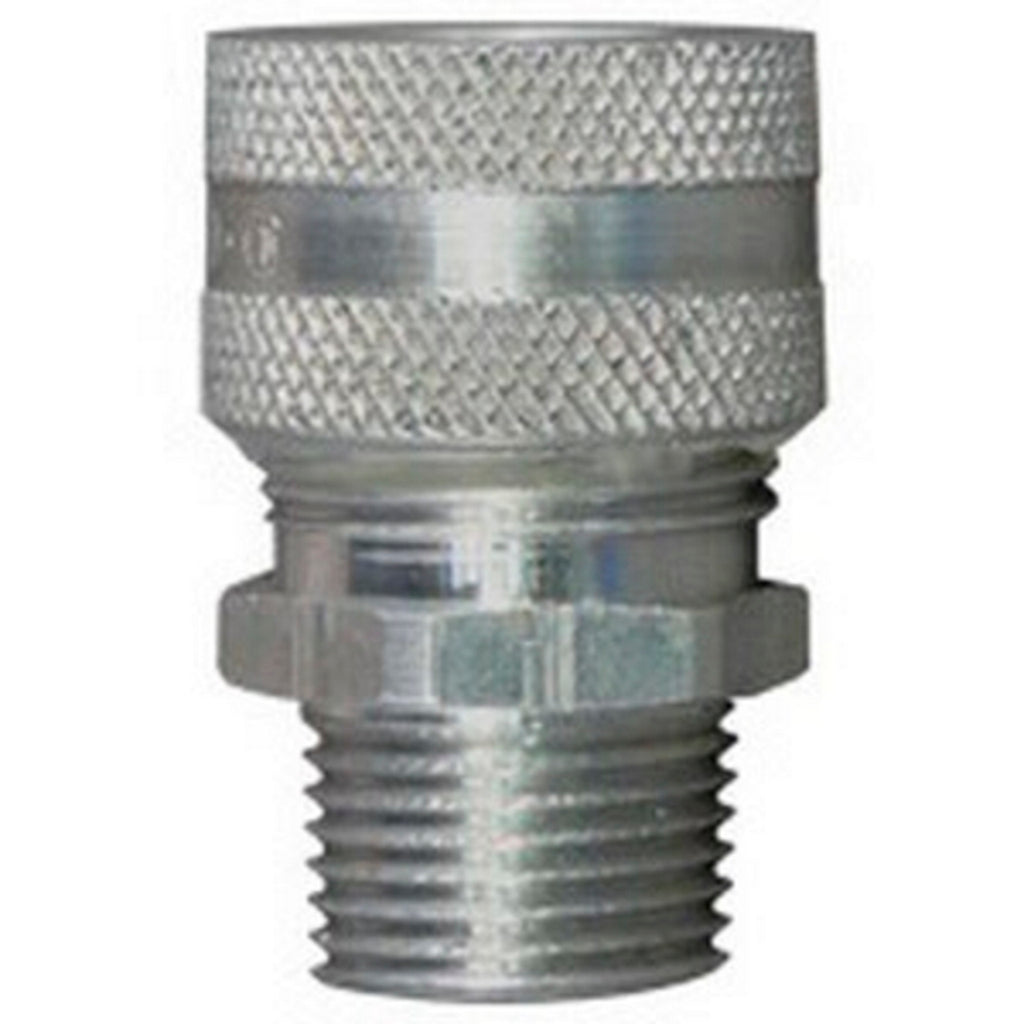

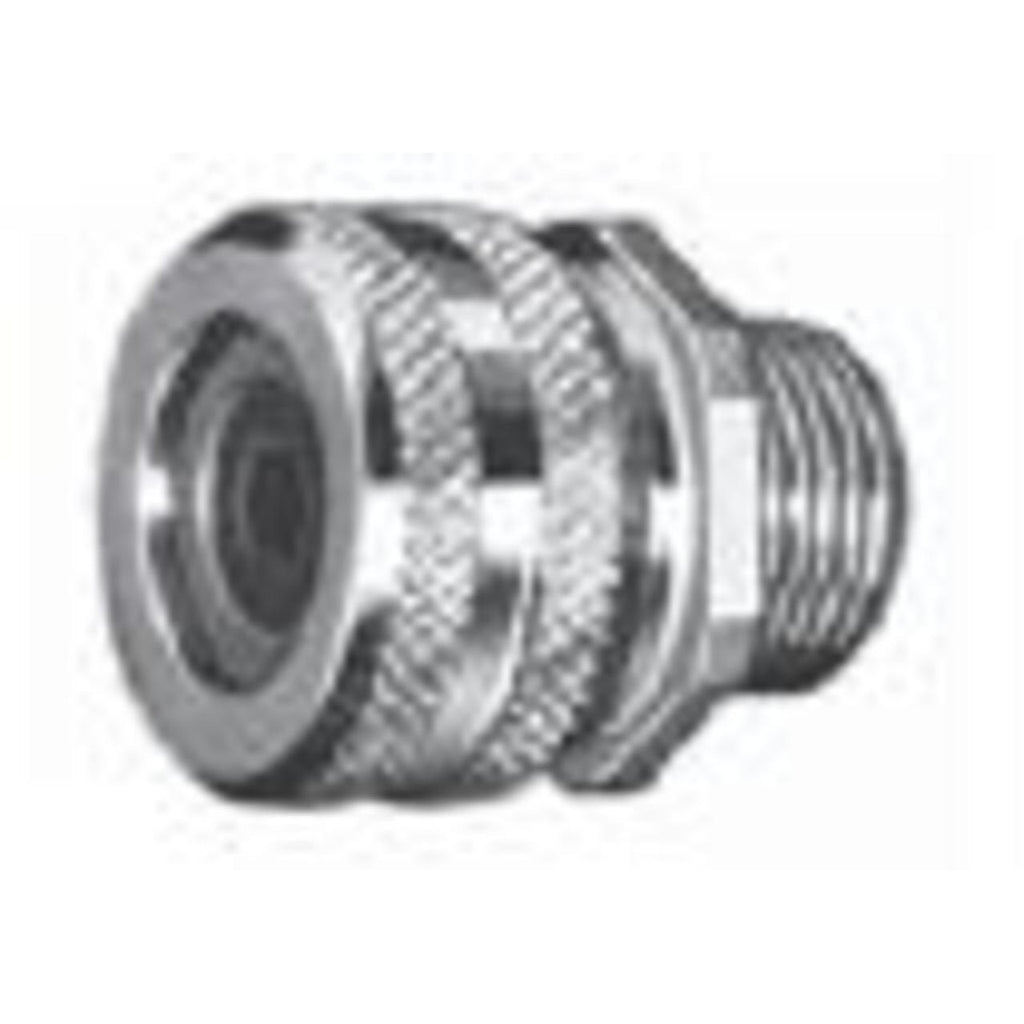

CG5050 - Appleton - 1/2" Straight Aluminum Liquidtight Strain Relief Connector
A ½″-hub aluminum strain-relief connector for 0.500″–0.625″ cables, standard for light-to-moderate duty industrial applications.
GENERAL SPECIFICATIONS
-
- NEC/CEC Certifications and Compliances
- Suitable for use in: Class I, Division 2; Class II, Division 1 and 2; Class III,; NEMA 3R
- Aluminum Standard Materials
- Straight body: aluminum. 90° body: cast aluminum. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap, cap on wire mesh: copperfree (4/10 of 1% or less) aluminum
- Steel Standard Materials
- Straight body and cap: machined steel. 90° body: malleable iron. Sealing grommet: neoprene. Washer: steel or Teflon. Wire mesh strain relief: stainless steel. Cap on wire mesh: zinc plated steel
- Optional Materials
- PVC coating available on select connectors. See catalog pages for details
PRODUCT DATASHEET
