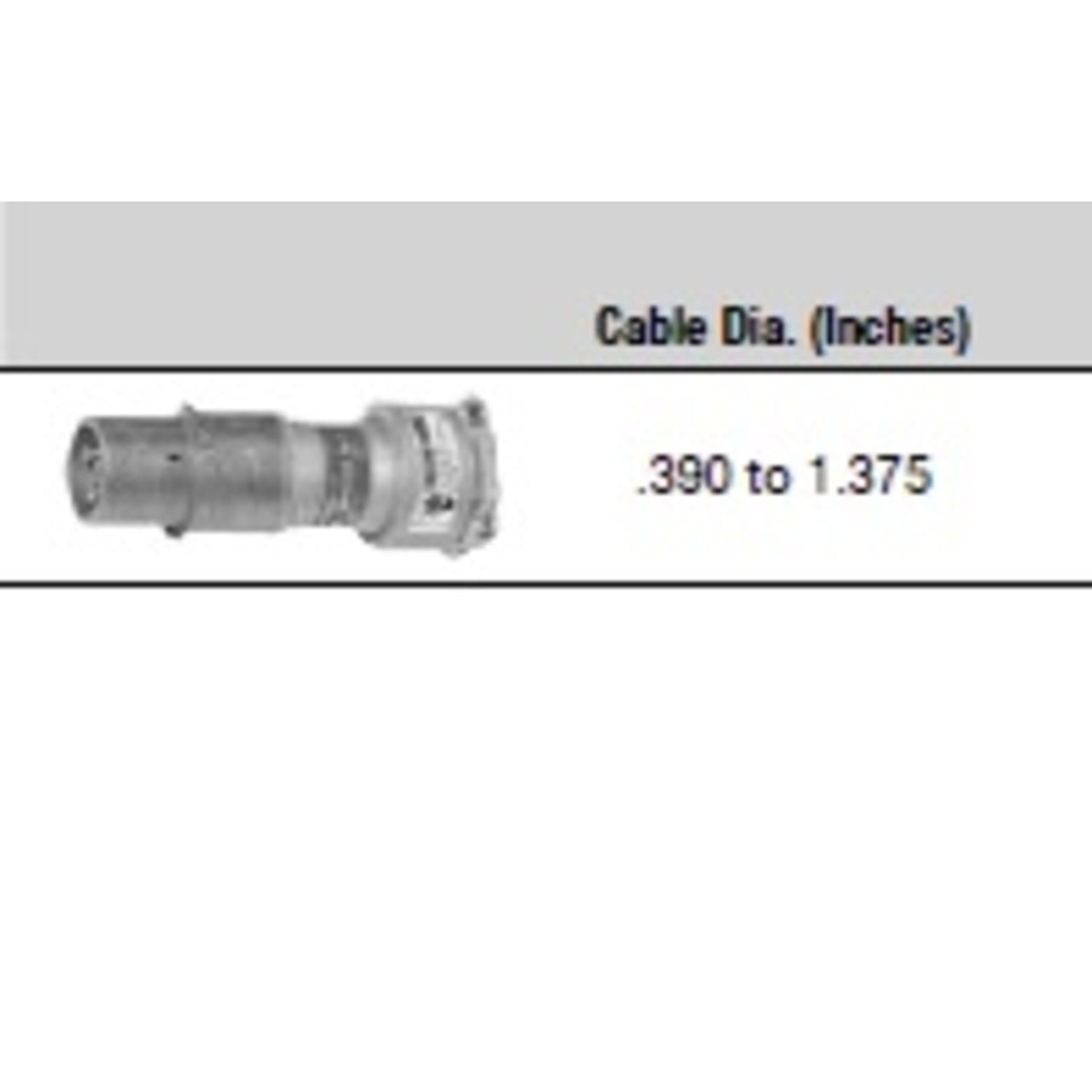

CPH3034BC - Appleton - 30A Copper-Free Aluminum Pin & Sleeve Plug
A heavy-duty 30 A plug from Appleton’s CPH Series, designed for 3-phase, 4-wire systems and rated for 125–480 VAC. Its copper-free aluminum housing is sturdy yet lightweight and is rated NEMA 3/3R/4/4X/7BCD/9FG, making it suitable for wash-down and explosion-proof environments. The pressure wire terminals accept #6 to #4 AWG conductors, and the plug features a safety Slide‑Lok® mechanism requiring proper insertion into a receptacle before energization. It handles up to 1 HP and is certified to UL 1010, UL 894, UL 1682, and UL 1686 standards.
GENERAL SPECIFICATIONS
-
- Hazardous Area Classification
- 30 and 60 Amp CES: Class I, Division 1 and 2, Groups C, D; 30 Amp CESD: Class I, Division 1 and 2, Groups C, D; 60 Amp CESD: Class I, Division 1 and 2, Group D
- Amperage
- 30 or 60
- Voltage
- 125-250 Vac or 480 Vac
- Number of Poles
- 3 or 4
- Number of Wires
- 2 or 3
- Horsepower Ratings
- 1-1/2, 3 or 5
- Plug Cable Diameter
- 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;
- Mounting Box Entries
- Dead-End
- Materials and Finishes
- Receptacles, covers and caps are copperfree (4/10 of 1% max.) aluminum with ceramic burnished. Mounting box is malleable iron with triple-coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat finish. Insulating blocks are fiber glass reinfor
