Description

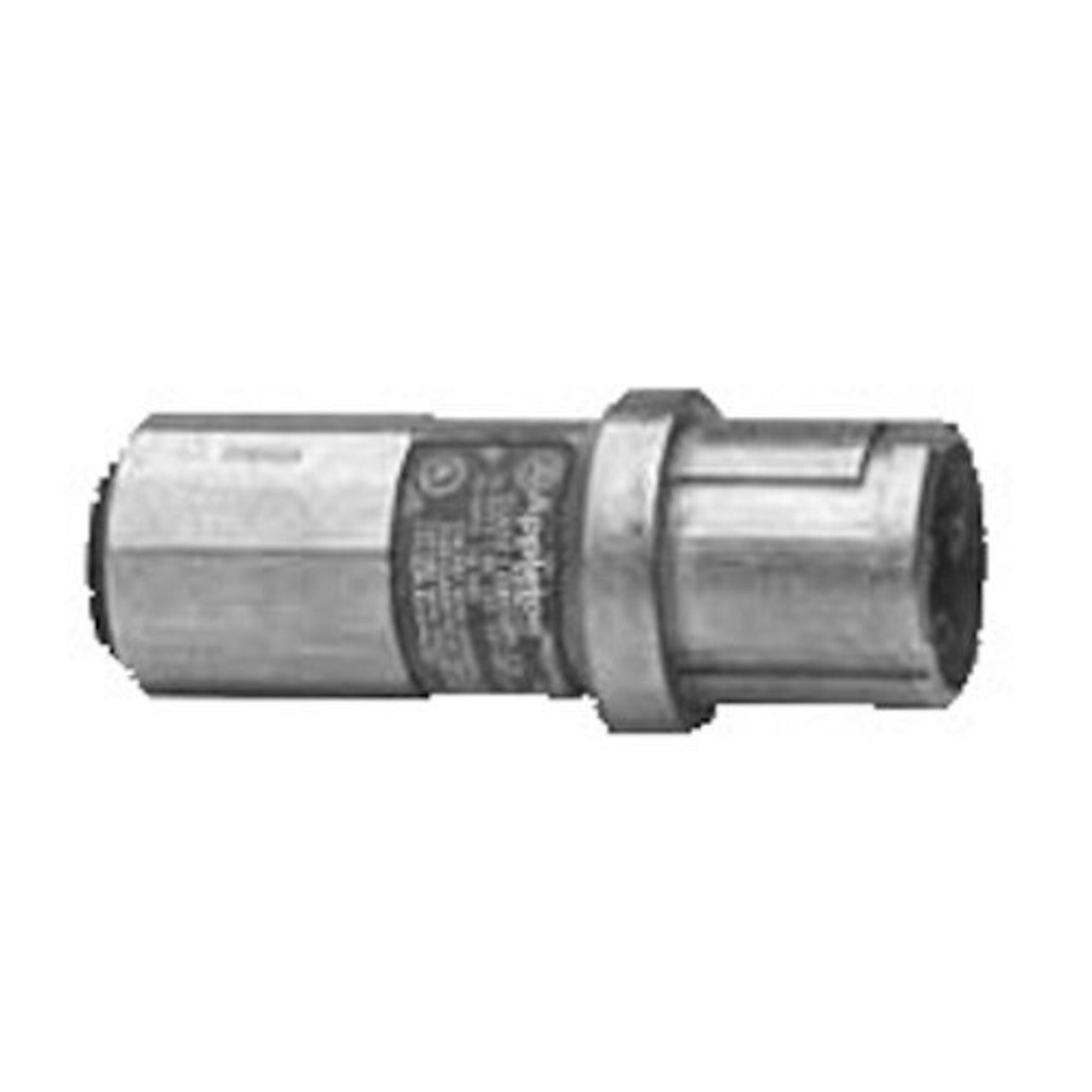

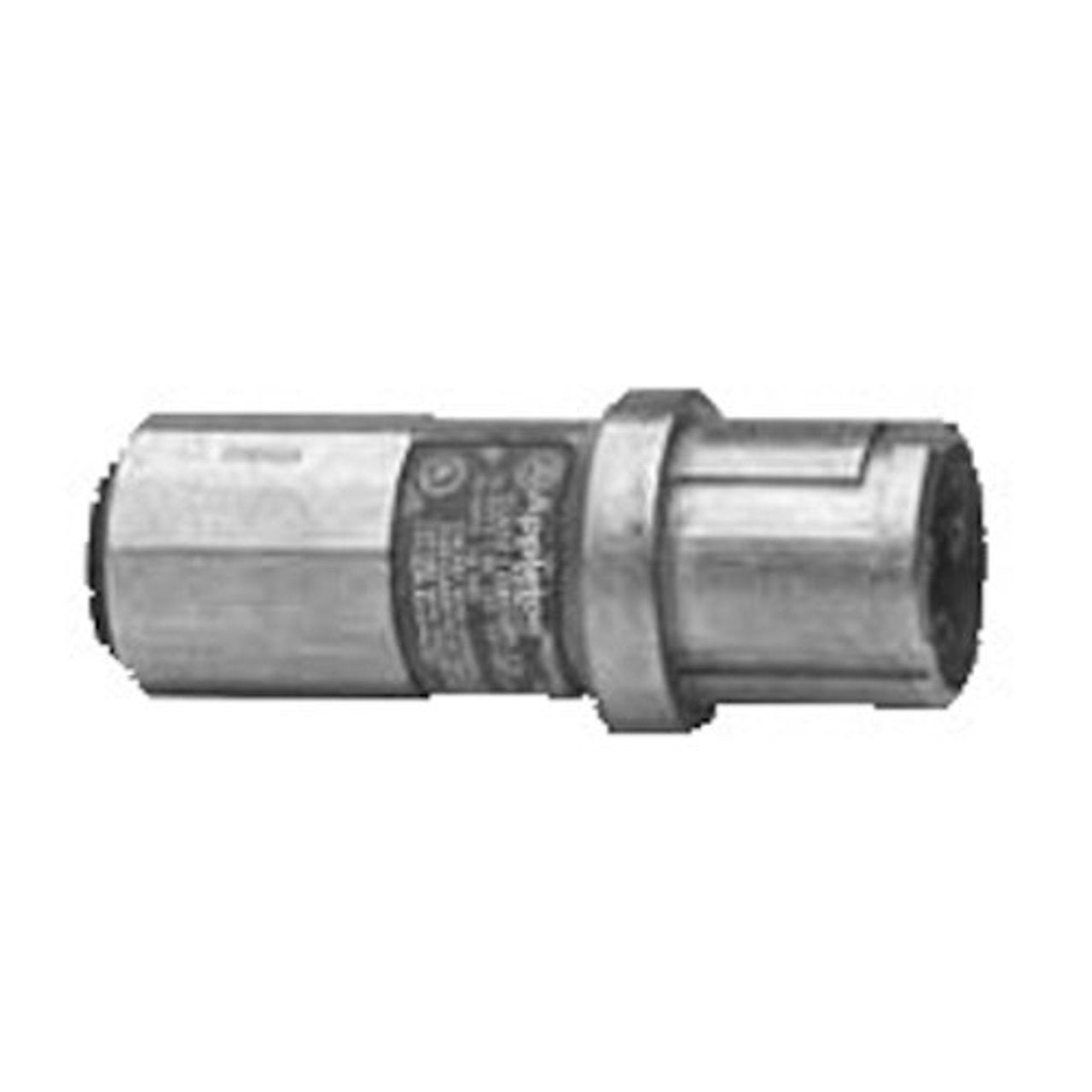

CPP516 - Appleton - 20A 2-Wire 3-Pole Copper-Free Aluminum Arktite Plug
A compact 5 A, 125 V, 2‑pole plug from the CPP Series, used for single-phase service. Constructed of corrosion-resistant materials and designed for reliable power distribution in industrial and commercial settings (general series-based description).
GENERAL SPECIFICATIONS
-
- Hazardous Area Classification
- Class I, Division 1 and 2, Groups C, D
- Amperage
- 20
- Voltage
- 125-250 Vac or 18 Vdc
- Number of Poles
- 3
- Number of Wires
- 2
- Horsepower Ratings
- 1
- Plug Cable Diameter
- .538 – .639
- Mounting Box Entries
- Dead-End or Feed-Thru
- Materials and Finishes
- Receptacle cover and CPP plug is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat. Insulating blocks are fiberglass reinforced polyester.
PRODUCT DATASHEET
