Description

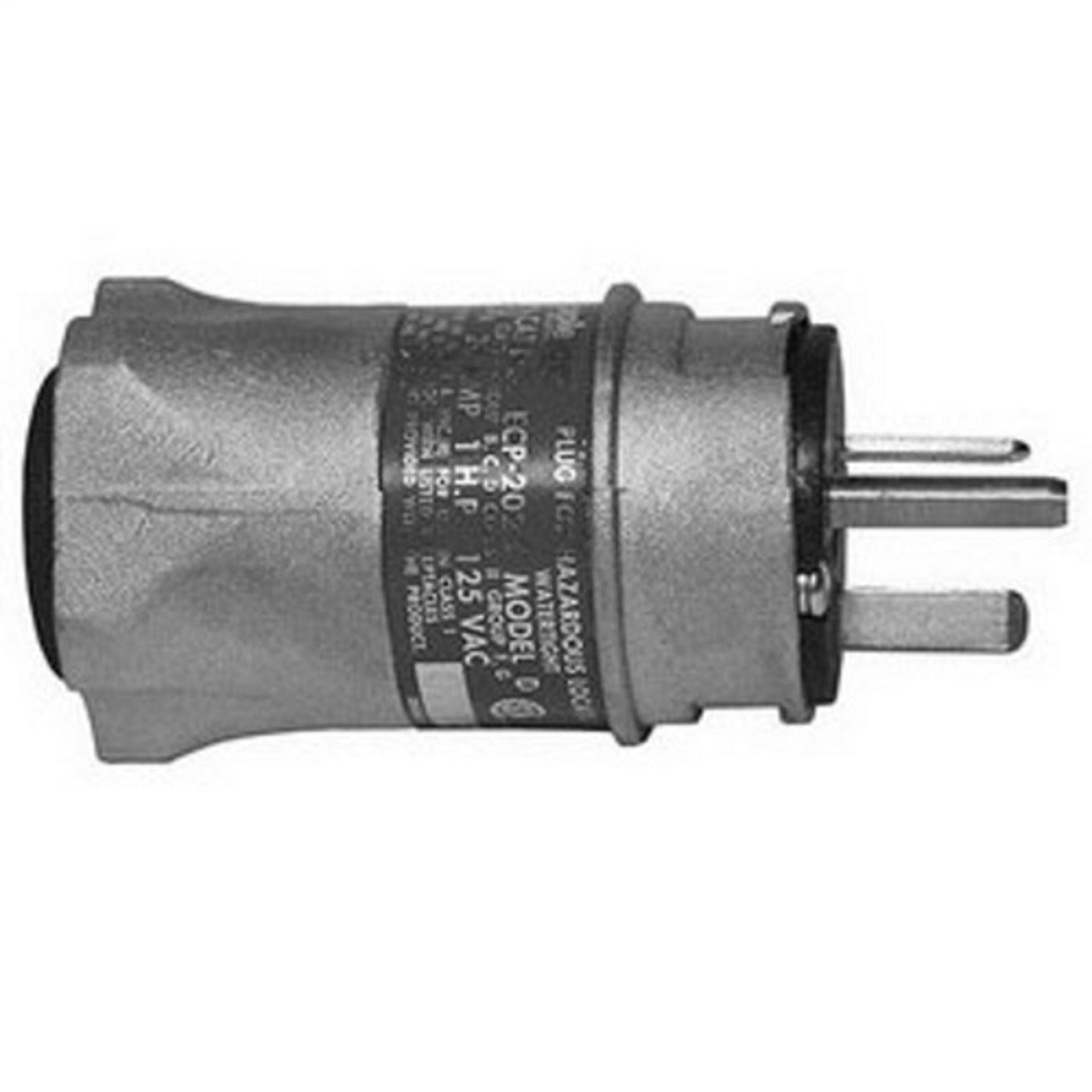

ECP20232 - Appleton - 20A 3-Pole 2-Wire 250V Plug
A variation of the ECP2023 coupler-either offering extended cord grip range or alternative sealing materials-while maintaining the same electrical and environmental ratings.
GENERAL SPECIFICATIONS
-
- Hazardous Area Classification
- Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA Type 4, 7BCD, 9GF
- Amperage
- 15 and 20
- Voltage
- 125 Vac or 250 Vac
- Number of Poles
- 3
- Number of Wires
- 2
- Plug Cable Diameter
- .538 – .639
- Plug Cable Diameter
- .538 – .639
- ECP Plug Material
- Copperfree (4/10 of 1% max.) aluminum
- NCP Plug Material
- 30% glass-reinforced thermoplastic polyester
PRODUCT DATASHEET
